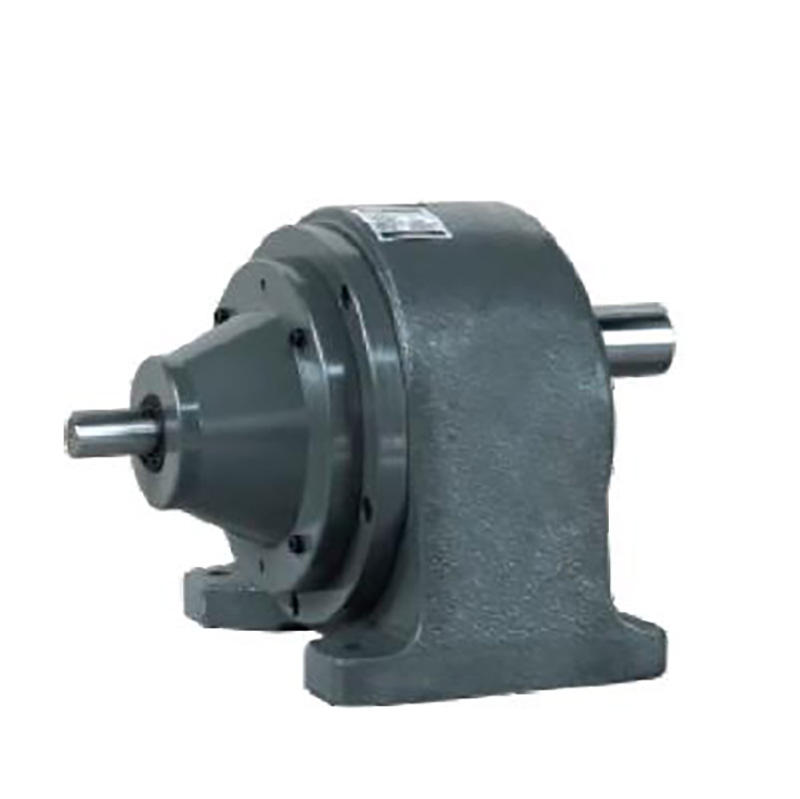

0.1kW-3.7kW Vertical/Horizontal Gearbox Motor Drive Double Shaft Type Reducer With Motor

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:0.1kw-3.7kw Vertical/horizontal Gearbox Motor Drive Double Shaft Type Reducer With Motor - Buy 0.1kw-3.7kw Vertical/horizontal High Ratio Double Shaft Type Reducer With Motor Ac Electric Motor Flange Type Reducer Withor Motor High Torque Speed Gearbox Industrial Transmission Component Gearbox Flange Type Reducer Industrial Gearbox Speed Reducer Gear Reducer Reduction Gearbox No Motor Gearbox Industrial Power Reducer Gear Reduction Unit Heavy Duty Reducer Gearbox Motor Drive Product on CMN Industry Inc

Send Inquiry

Product Description

EVER POWER specializes in the development and production of hyperboloid right-angle reducers. These products feature a compact, aesthetically pleasing design; they are oil-resistant and durable, requiring no regular lubrication. The gear materials and craftsmanship are professionally guaranteed for a long lifespan; they offer low noise and minimal vibration; and they are widely adaptable, with options for non-standard voltages and frequencies available or customizable. EVER POWER right-angle reducers are available in the following types: F Series: Flange-Mounted L Series: Floor-Mounted, Foot-Mounted S Series: Dual-Flat, with flat mounting surfaces on both sides Motor Power Range: 0.1kW-3.7kW EVER POWER is equipped with a professional reducer design and R&D team and can undertake the development and production of non-standard reducers. We welcome new and existing customers to visit us and collaborate with us.

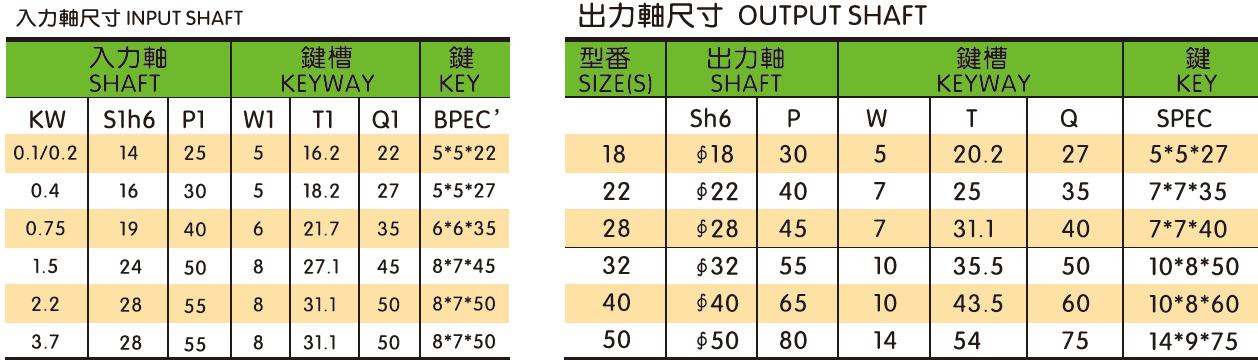

Output shaft

SIZE(S)	Shaft	Output Shaft	Keyway				Key
	Sh6	P	W	T	Q	SPEC
18	Φ18	30	5	20.2	27	5527
22	Φ22	40	7	25	35	7735
28	Φ28	45	7	31.1	40	7740
32	Φ32	55	10	35.5	50	10850
40	Φ40	65	10	43.5	60	10860
50	Φ50	80	14	54	75	14975

Input shaft

Shaft					Keyway		Key
KW	S1h6	P1	W1	T1	Q1	BPEC
0.1/0.2	14	25	5	16.2	22	5522
0.4	16	30	5	18.2	27	5527
0.75	19	40	6	21.7	35	6635
1.5	24	50	8	27.1	45	8745
2.2	28	55	8	31.1	50	8750
3.7	28	55	8	31.1	50	8750

Machanical data

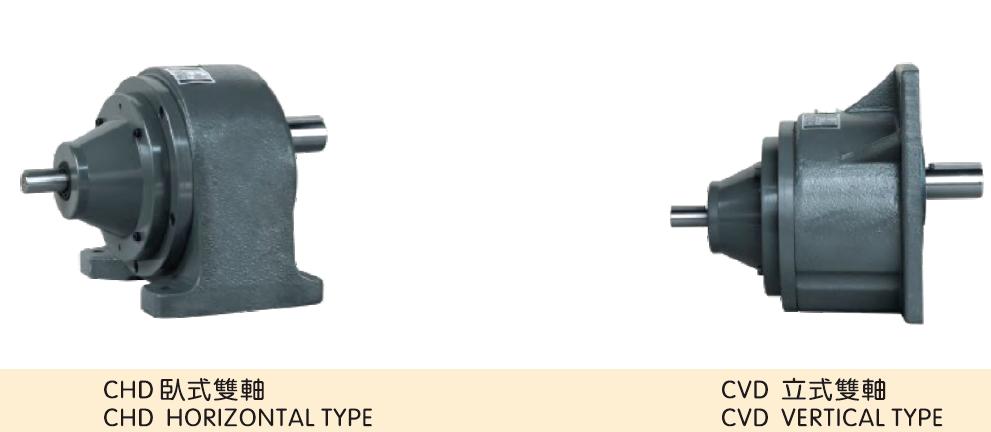

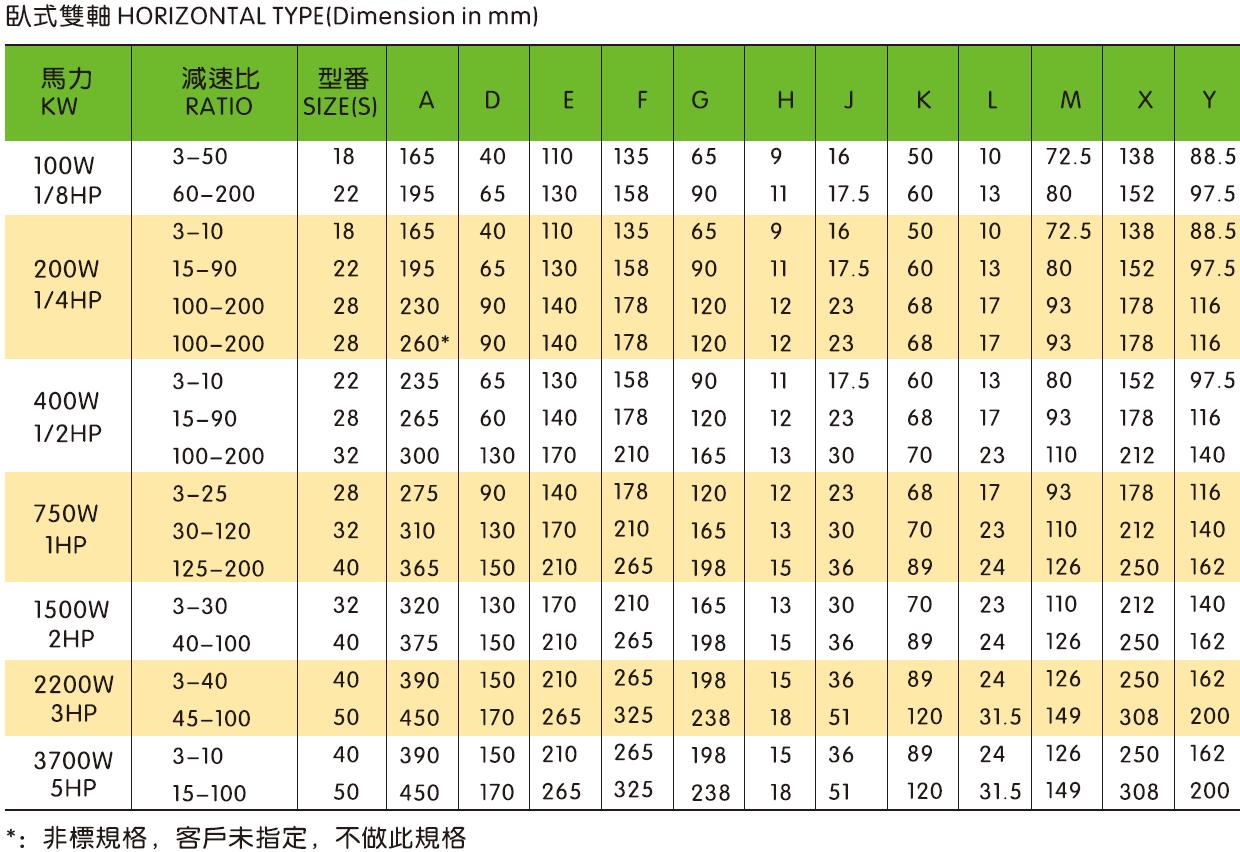

HORIZONTAL TYPE (Dimension in mm)

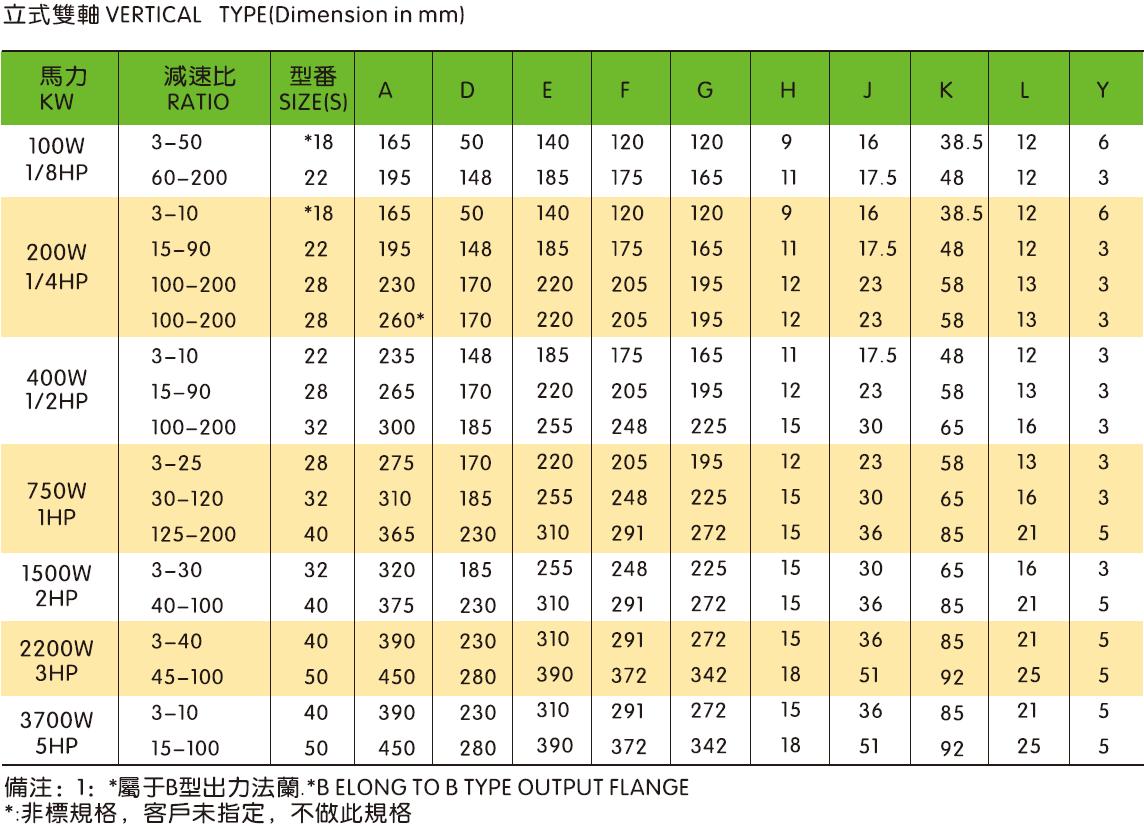

VERTICAL TYPE (Dimension in mm)

Application

Advantages of Double Shaft Type Reducer with Motor
1. Dual Output Shafts – Provides power transmission to two separate loads simultaneously, increasing application flexibility.

2. High Torque Capacity – Robust gear design ensures efficient torque transfer for heavy-duty operations.

3. Compact & Space-Saving – Integrated motor and reducer design reduces overall footprint and simplifies installation.

4. Balanced Load Distribution – Evenly distributes mechanical stress, enhancing durability and reducing wear.

5. Precision & Low Backlash – Ensures accurate motion control, ideal for automation and positioning systems.

6. High Efficiency – Optimized gear meshing minimizes energy loss for improved performance.

7. Versatile Mounting Options – Compatible with horizontal, vertical, or flange mounting configurations.

8. Low Maintenance – Sealed housing and high-quality bearings reduce maintenance requirements.

Applications of Double Shaft Type Reducer with Motor
Conveyor Systems – Driving dual belts or rollers in material handling.

Packaging Machinery – Synchronized operation in filling, sealing, and labeling machines.

Industrial Mixers & Agitators – Powering dual mixing blades for uniform blending.

Textile Machinery – Driving multiple spindles or rollers in weaving/knitting machines.

Construction Equipment – Used in concrete mixers, cranes, and hoists.

Agricultural Machinery – Powering feed mixers, harvesters, and irrigation systems.

Automation & Robotics – Precise control in robotic arms and automated assembly lines.

Printing Machinery – Synchronized roller movement for high-speed printing.

TERMINAL BOX DIRECTION

WIRE INLET DIRECTION

REDUCER AND VENTILATION INSTALLATION
