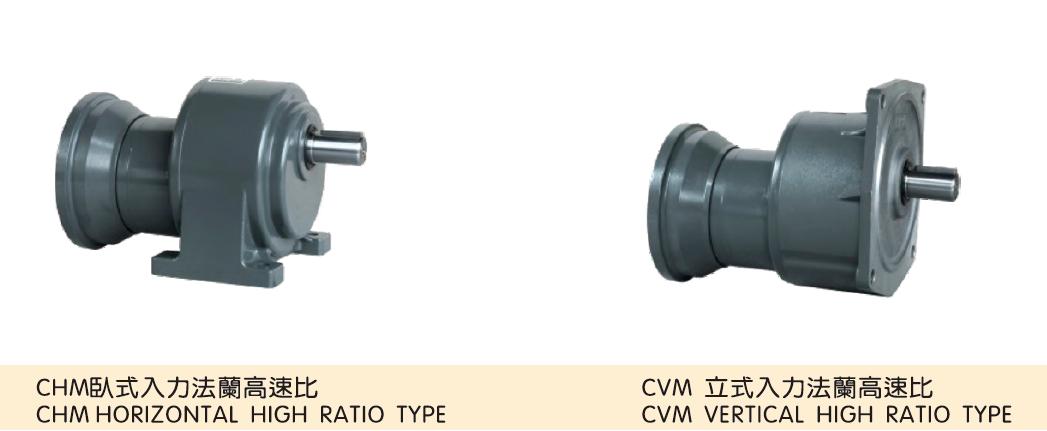

0.1kW-3.7kW Vertical/Horizontal Gearbox Motor Drive High Ratio Flange Mount Type Reducer With Motor

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:0.1kw-3.7kw Vertical/horizontal Gearbox Motor Drive High Ratio Flange Mount Type Reducer With Motor - Buy 0.1kw-3.7kw Vertical/horizontal High Ratio Flange Mount Type Reducer With Motor Ac Electric Motor Flange Type Reducer Withor Motor High Torque Speed Gearbox Industrial Transmission Component Gearbox Flange Type Reducer Industrial Gearbox Speed Reducer Gear Reducer Reduction Gearbox No Motor Gearbox Industrial Power Reducer Gear Reduction Unit Heavy Duty Reducer Gearbox Motor Drive Product on CMN Industry Inc

Send Inquiry

Product Description

EVER POWER specializes in the development and production of hyperboloid right-angle reducers. These products feature a compact, aesthetically pleasing design; they are oil-resistant and durable, requiring no regular lubrication. The gear materials and craftsmanship are professionally guaranteed for a long lifespan; they offer low noise and minimal vibration; and they are widely adaptable, with options for non-standard voltages and frequencies available or customizable. EVER POWER right-angle reducers are available in the following types: F Series: Flange-Mounted L Series: Floor-Mounted, Foot-Mounted S Series: Dual-Flat, with flat mounting surfaces on both sides Motor Power Range: 0.1kW-3.7kW EVER POWER is equipped with a professional reducer design and R&D team and can undertake the development and production of non-standard reducers. We welcome new and existing customers to visit us and collaborate with us.

Output shaft

SIZE(S)	Shaft	Output Shaft	Keyway				Key
	Sh6	P	W	T	Q	SPEC
32	Φ32	55	10	35.5	50	10850
40	Φ40	65	10	43.5	60	10860
50	Φ50	80	14	54	75	14975

Input bore

KW	Bore	Keyway
	S1 F7	W1	T1
1/4HP	ɸ 11	4	12.8
1/2HP	ɸ 14	5	16.3
1HP	ɸ 19	6	21.8
2HP	ɸ 24	8	27.3

Machanical data

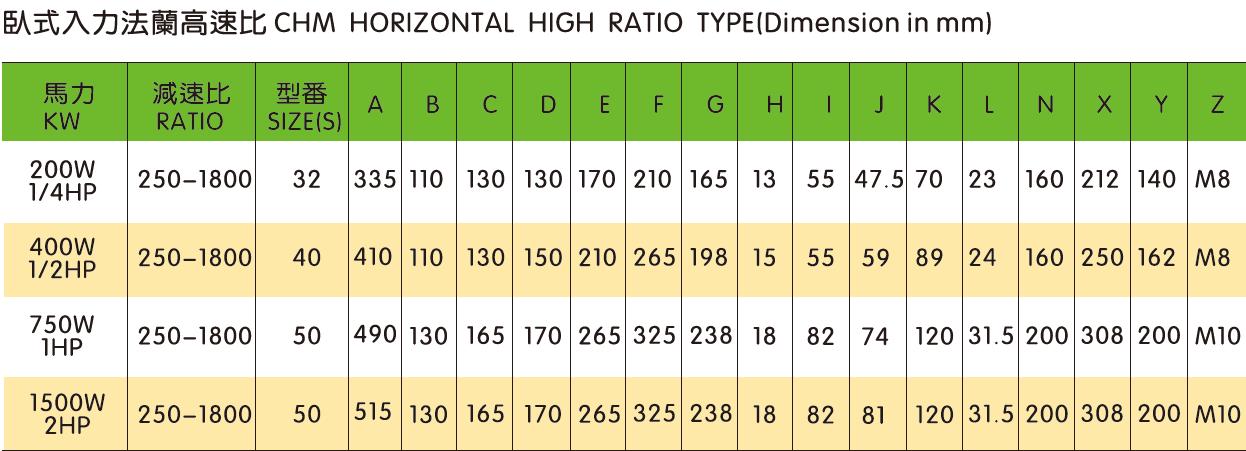

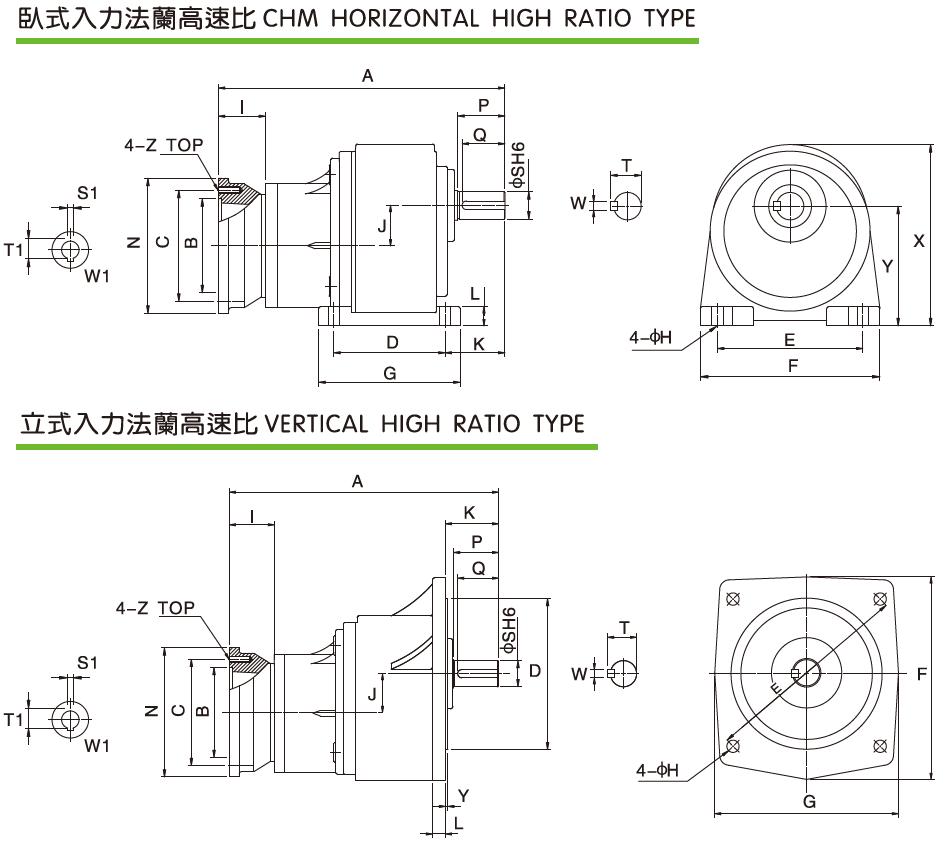

HORIZONTAL TYPE (Dimension in mm)

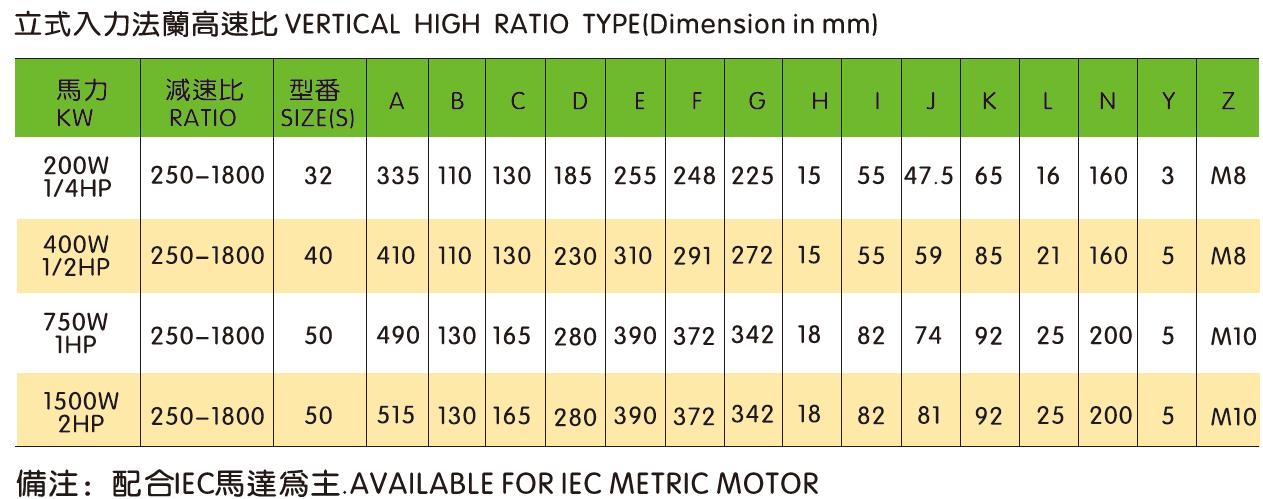

VERTICAL TYPE (Dimension in mm)

Application

Advantages of High Ratio Flange Mount Type Reducer with Motor
1. High Reduction Ratio – Provides significant speed reduction while increasing torque output, ideal for heavy-duty applications.

2. Compact & Space-Saving – Flange-mounted design allows for direct coupling, reducing installation space and complexity.

3. High Efficiency – Optimized gear design minimizes energy loss, ensuring smooth and efficient power transmission.

4. Robust Construction – Durable materials (e.g., hardened steel gears, cast iron/aluminum housing) enhance longevity and load capacity.

5. Precise Positioning & Control – Low backlash and high torsional stiffness improve accuracy in automation systems.

6. Easy Maintenance – Sealed design reduces contamination risk, and some models offer grease-lubricated, maintenance-free operation.

7. Versatile Mounting Options – Flange mount allows direct attachment to machinery, simplifying integration.

8. Quiet Operation – Precision engineering reduces vibration and noise, suitable for noise-sensitive environments.

Applications of High Ratio Flange Mount Type Reducer with Motor
Industrial Machinery: Conveyors, mixers, extruders, and packaging equipment.

Material Handling: Cranes, hoists, winches, and automated guided vehicles (AGVs).

Food & Beverage Processing: Hygienic-grade reducers for conveyors, fillers, and bottling lines.

Construction Equipment: Cement mixers, lifts, and heavy-duty drilling machines.

Renewable Energy: Solar tracker systems and wind turbine pitch control.

Agricultural Machinery: Feed mixers, irrigation pumps, and grain elevators.

Robotics & Automation: Precision motion control in robotic arms and CNC machinery.

TERMINAL BOX DIRECTION

WIRE INLET DIRECTION

REDUCER AND VENTILATION INSTALLATION
