0.2-2.2kw Power Transmission Equipment Dual-plane Medium Straight Cross-axis Dual Surface Gear Reducer

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:0.2-2.2kw Power Transmission Equipment Dual-plane Medium Straight Cross-axis Dual Surface Gear Reducer - Buy 0.2-2.2kw Dual-plane Solid Shaft Transmission Helical Gearbox Industrial Hypoid Medium Straight Cross-axis Dual Surface Gear Reducer Straight Cross Axis Dual Surface Gear Reducer Hypoid Gear Reducer Right Angle Gear Motor Helical Bevel Gearbox High Efficiency Speed Reducer Power Transmission Equipment Right Angle Bevel Gear Box Shaft Mounted Speed Reducer Helical Gear Box Product on CMN Industry Inc

Send Inquiry

Product Description

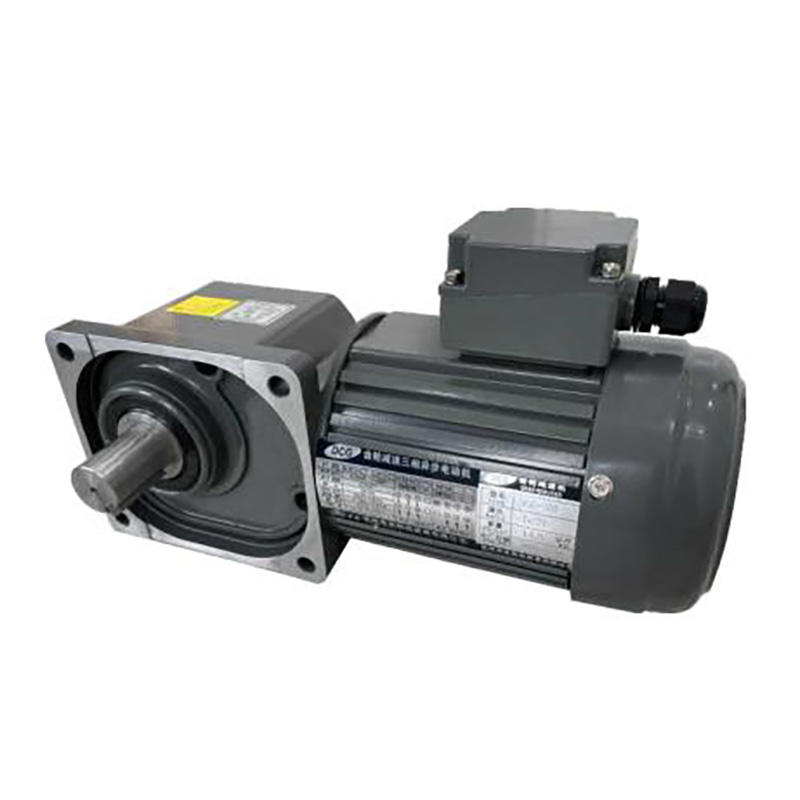

EVER POWER specializes in the development and production of hyperboloid right-angle reducers. These products feature a compact, aesthetically pleasing design; they are oil-resistant and durable, requiring no regular lubrication. The gear materials and craftsmanship are professionally guaranteed for a long lifespan; they offer low noise and minimal vibration; and they are widely adaptable, with options for non-standard voltages and frequencies available or customizable. EVER POWER right-angle reducers are available in the following types: F Series: Flange-Mounted L Series: Floor-Mounted, Foot-Mounted S Series: Dual-Flat, with flat mounting surfaces on both sides Motor Power Range: 0.1kW-3.7kW EVER POWER is equipped with a professional reducer design and R&D team and can undertake the development and production of non-standard reducers. We welcome new and existing customers to visit us and collaborate with us.

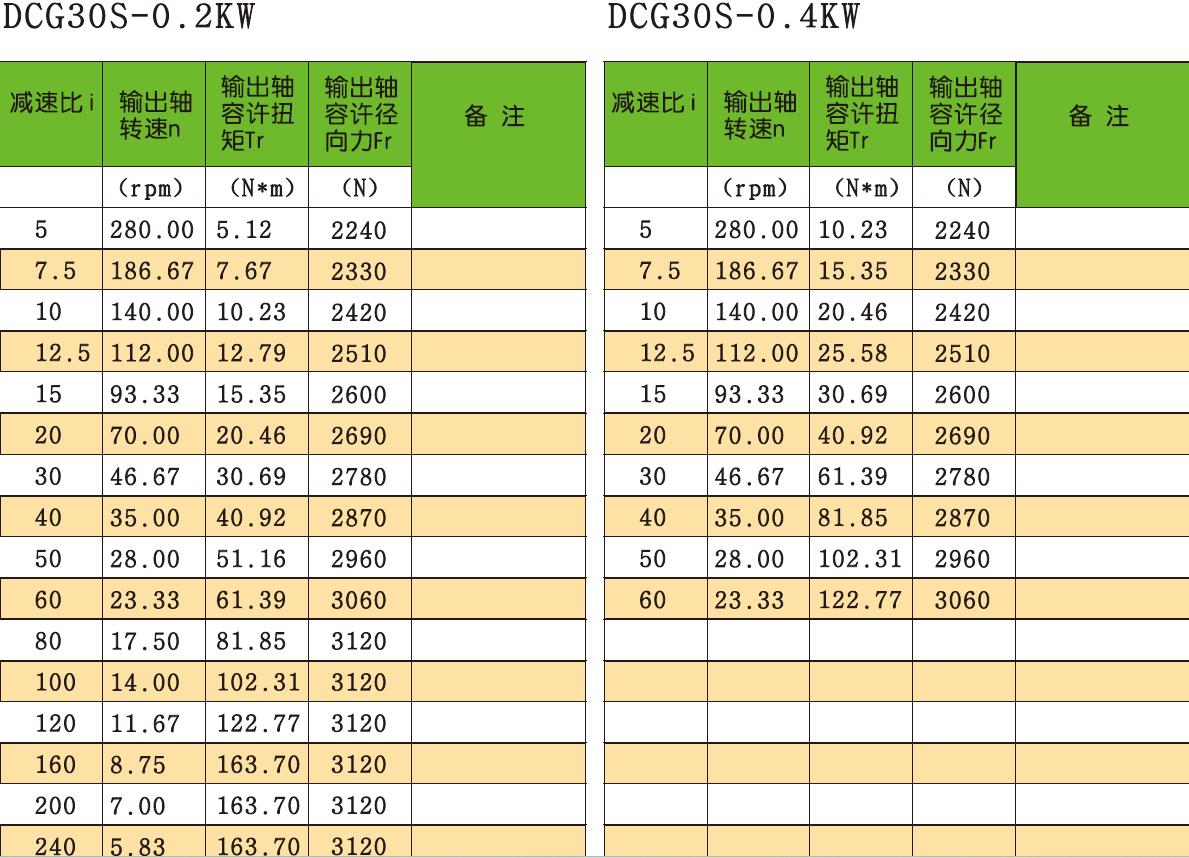

	DCG30S-0.2KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	5.12	2240
7.5	186.67	7.67	2330
10	140	10.23	2420
12.5	112	12.79	2510
15	93.33	15.35	2600
20	70	20.46	2690
30	46.67	30.69	2780
40	35	40.92	2870
50	28	51.16	2960
60	23.33	61.39	3060
80	17.5	81.85	3120
100	14	102.31	3120
120	11.67	122.77	3120
160	8.75	163.7	3120
200	7	163.7	3120
240	5.83	163.7	3120

	DCG30S-0.4KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	10.23	2240
7.5	186.67	15.35	2330
10	140	20.46	2420
12.5	112	25.58	2510
15	93.33	30.69	2600
20	70	40.92	2690
30	46.67	61.39	2780
40	35	81.85	2870
50	28	102.31	2960
60	23.33	122.77	3060

	DCG35S-0.4KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	10.23	2800
7.5	186.67	15.35	2890
10	140	20.46	2980
12.5	112	25.58	3070
15	93.33	30.69	3160
20	70	40.92	3250
30	46.67	61.39	3340
40	35	81.85	3430
50	28	102.31	3520
60	23.33	122.77	3610
80	17.5	163.7	3720
100	14	204.62	3720
120	11.67	245.55	3720
160	8.75	327.39	3720
200	7	327.39	3720
240	5.83	327.39	3720

	DCG35S-0.75KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	19.18	2800
7.5	186.67	28.77	2890
10	140	38.37	2980
12.5	112	47.96	3070
15	93.33	57.55	3160
20	70	76.73	3250
30	46.67	115.1	3340
40	35	153.47	3430
50	28	191.83	3520
60	23.33	230.2	3610

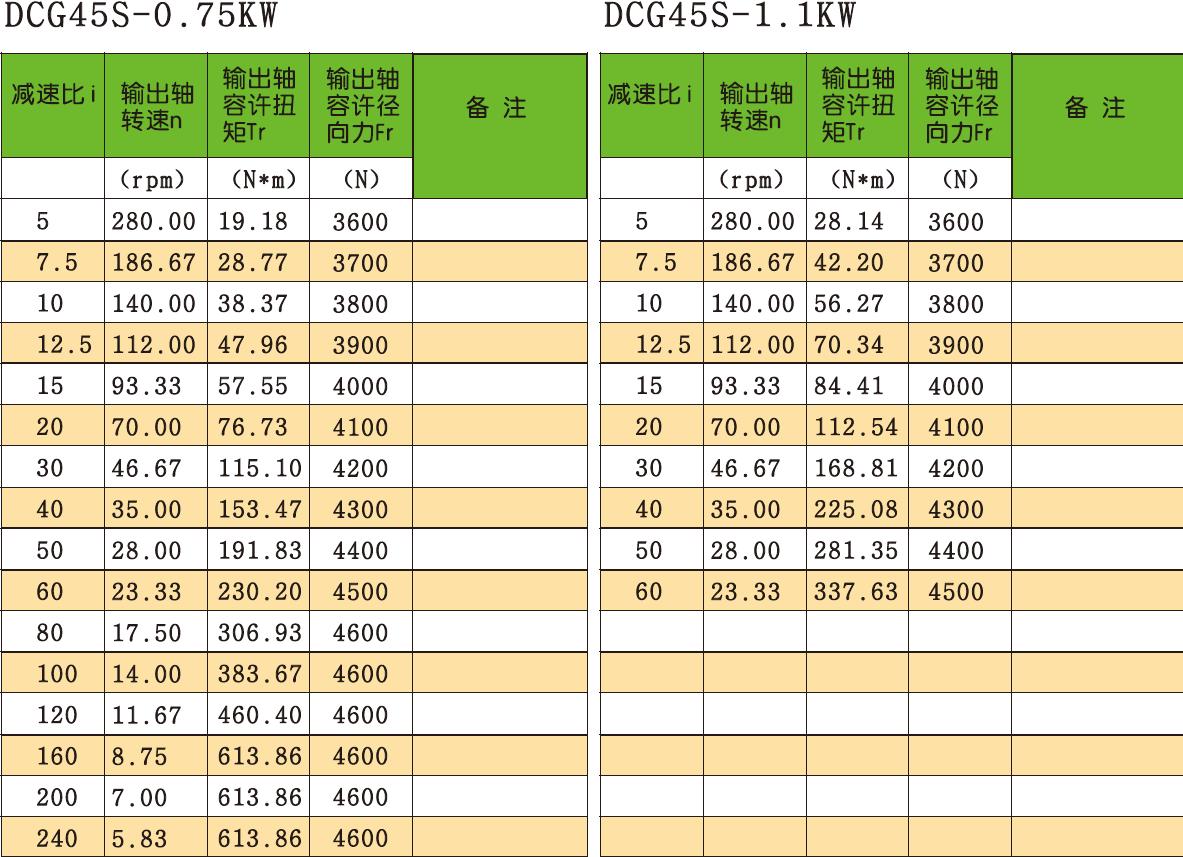

	DCG45S-0.75KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	19.18	3600
7.5	186.67	28.77	3700
10	140	38.37	3800
12.5	112	47.96	3900
15	93.33	57.55	4000
20	70	76.73	4100
30	46.67	115.1	4200
40	35	153.47	4300
50	28	191.83	4400
60	23.33	230.2	4500
80	17.5	306.93	4600
100	14	383.67	4600
120	11.67	460.4	4600
160	8.75	613.86	4600
200	7	613.86	4600
240	5.83	613.86	4600

	DCG45S-1.1KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	28.14	3600
7.5	186.67	42.2	3700
10	140	56.27	3800
12.5	112	70.34	3900
15	93.33	84.41	4000
20	70	112.54	4100
30	46.67	168.81	4200
40	35	225.08	4300
50	28	281.35	4400
60	23.33	337.63	4500

Application

Advantages of Straight Cross-axis Dual Surface Gear Reducer
1. High Torque Transmission – Delivers superior torque output with minimal energy loss, ideal for heavy-load applications.

2. Compact & Space-Saving – Cross-axis design allows for efficient power transmission in confined spaces.

3. High Efficiency (90%+) – Dual-surface gear engagement ensures smooth power transfer with reduced friction.

4. Low Noise & Vibration – Precision-engineered gears minimize operational noise, suitable for noise-sensitive environments.

5. High Rigidity & Durability – Robust construction (hardened steel gears, reinforced housing) enhances longevity under harsh conditions.

6. Low Backlash – Ensures precise motion control, critical for automation and robotics.

7. Versatile Mounting Options – Supports horizontal, vertical, and flange mounting for flexible integration.

8. Maintenance-Free Operation – Sealed design with long-life lubrication reduces servicing needs.

Applications of Straight Cross-axis Dual Surface Gear Reducer
Industrial Robotics – Precision joints and articulated arms requiring high torque and accuracy.

Packaging Machinery – High-speed filling, sealing, and labeling equipment.

Medical Equipment – Surgical robots, imaging systems, and adjustable patient beds.

Aerospace & Defense – Actuators for flight control systems and radar positioning.

Automotive Manufacturing – Assembly line robots, welding arms, and conveyor systems.

Renewable Energy – Solar tracker systems and wind turbine pitch control mechanisms.

Material Handling – AGVs (Automated Guided Vehicles), cranes, and lifting systems.

Machine Tools – CNC machining centers requiring high precision and rigidity.

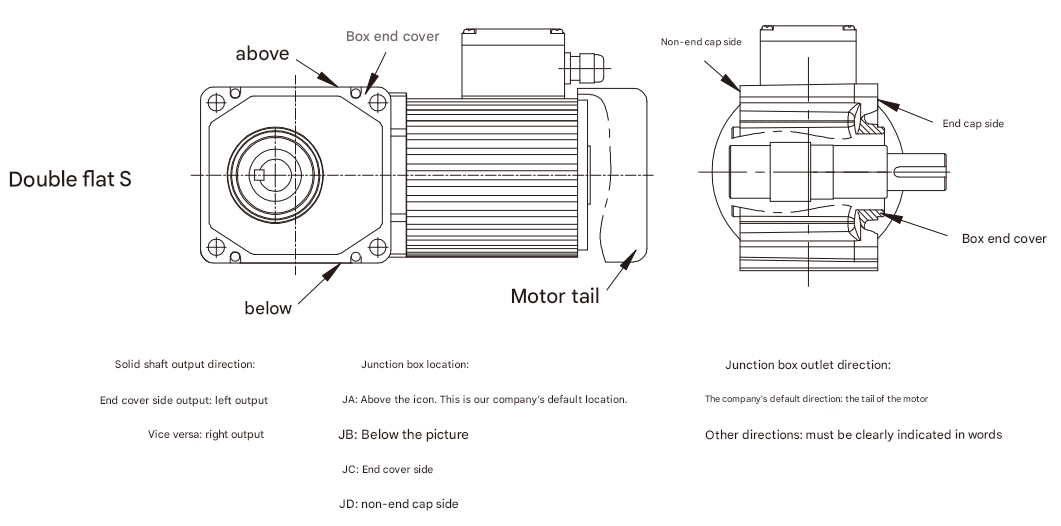

Standard definition of output shaft direction and terminal box location

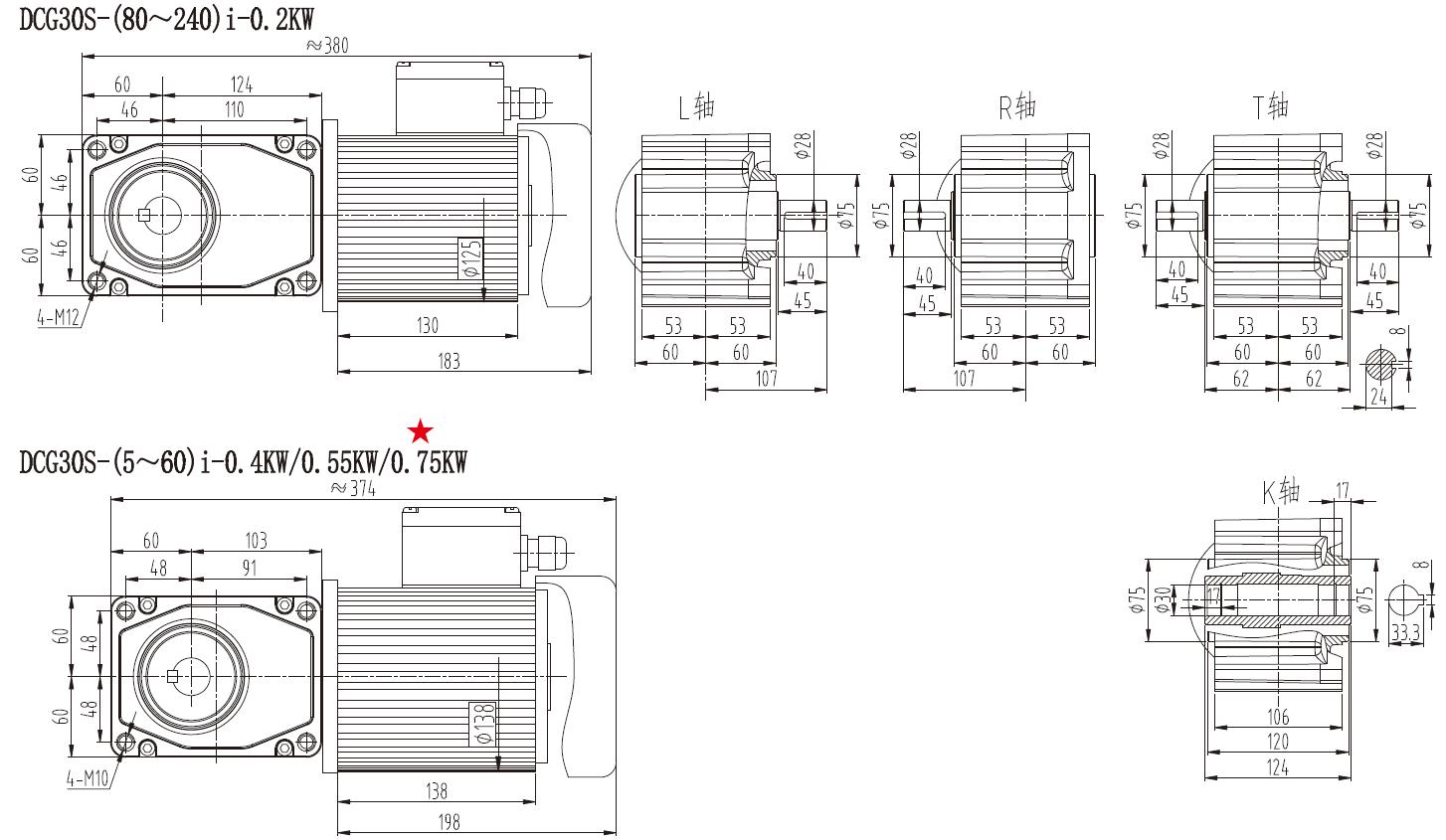

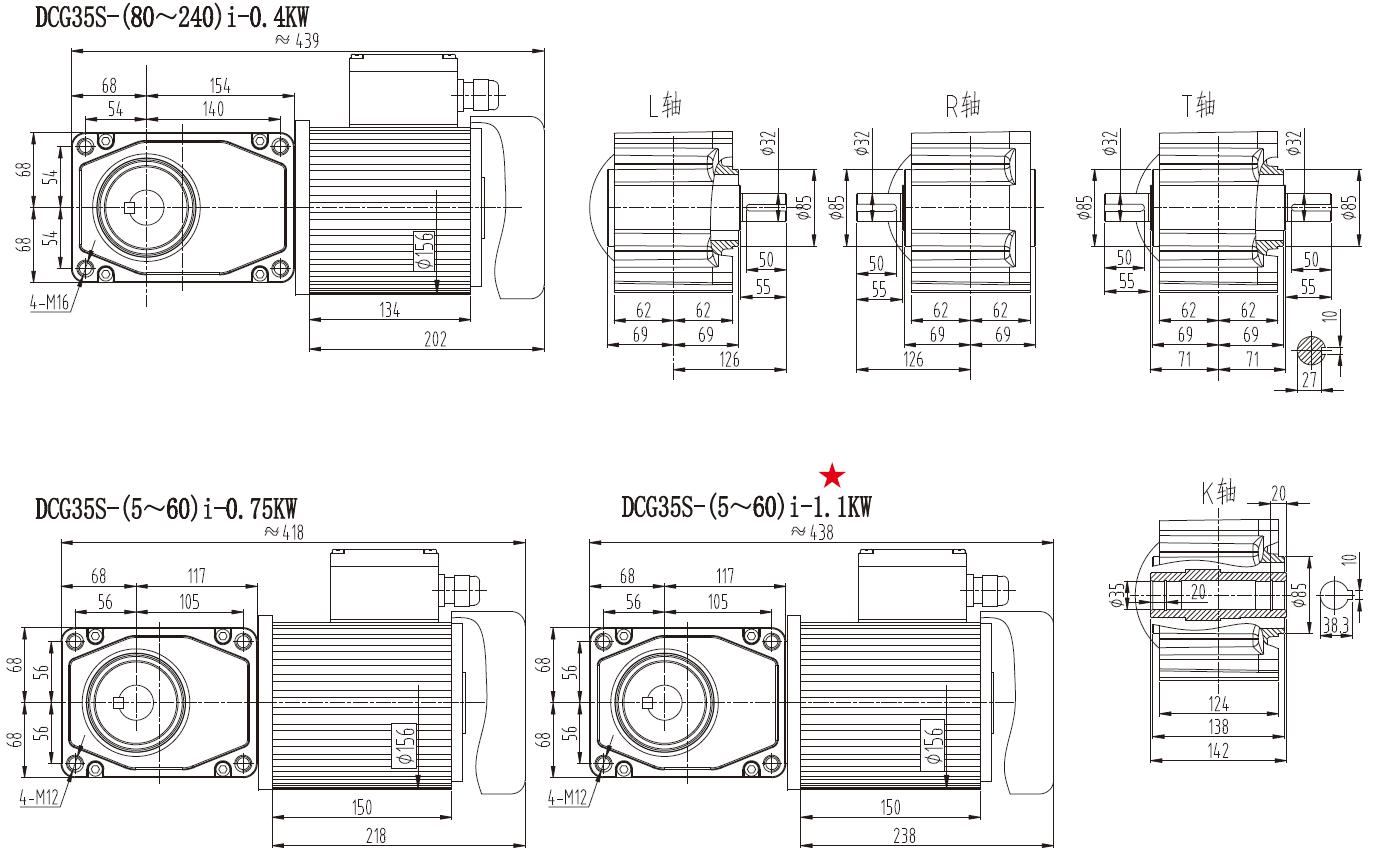

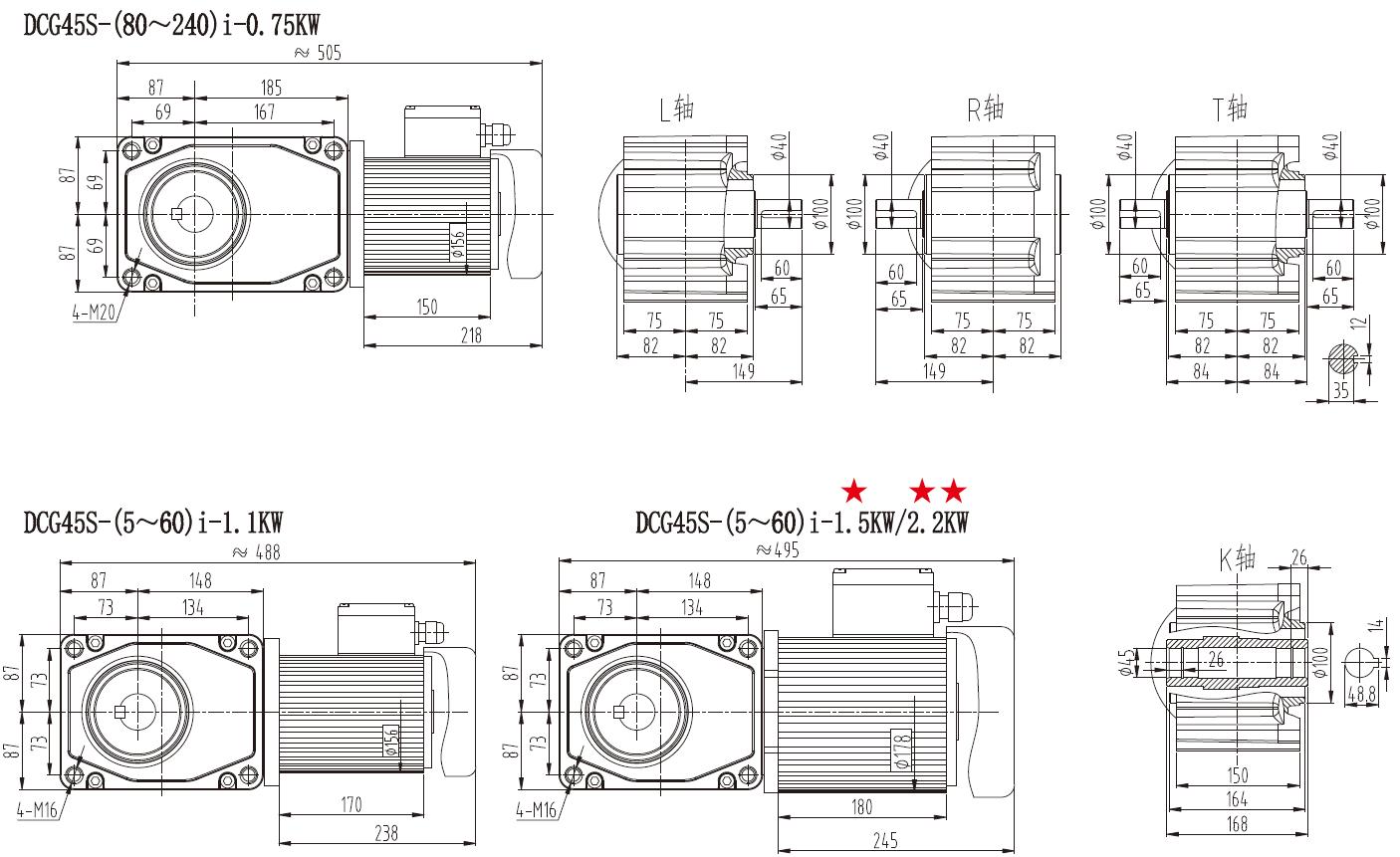

Technical Specifications
