12 Inch Compact Post Hole Auger for Tractor 3 Point Post Hole Diggers with 2 Round Shaft

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:12 Inch Compact Post Hole Auger For Tractor 3 Point Post Hole Diggers With 2 Round Shaft - Buy Compact Post Hole Auger 12 Inch Compact Post Hole Auger 12 Inch Compact Post Hole Auger For Tractor 3 Point Post Hole Diggers Product on CMN Industry Inc

Send Inquiry

Product Description

12-inch compact pile hole screw conveyor, suitable for 2 "round shaft tractor type three-point excavator

The 12-inch compact pile hole auger is a tool designed to drill holes in the ground to install piles, fences, signs or other similar structures. It is composed of a rotary spiral blade or a drill bit after drilling, which is driven by a motor or rotated manually by a handle. The compact size makes it very suitable for small work in a narrow space, because the larger and heavier auger may not be installed. It is usually used for landscaping, gardening and construction engineering.

12-inch compact cylindrical auger specifications -Length 36" -Alternate sides -Diameter 12" -The design length is short, which is suitable for small tractors (Class 0) -Use double 1/2 "bolts to connect to 2" round gearbox shaft (not included) -It is applicable to our Model 400 compact pile excavator or other brands. -It is applicable to the pile excavator installed on the tractor, which requires a screw conveyor with a standard 2 ″ shaft.

12-inch compact cylindrical auger sold

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037

6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036

6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

For more details, please click here to contact us!

Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

12-inch compact cylindrical auger function

Some features of the 12-inch compact post-drilling auger may include: Size - The diameter of the compact auger after drilling is 12 inches. It is compact in design, convenient for transportation and easier to use in a narrow space. Material - Compact drilled augers are usually made of durable steel or other high-strength metal materials and are designed to withstand heavy loads. Blade - The end of the compact drill after drilling has a spiral blade or drill bit, which can effectively drill through soil, clay or other hard surfaces. Motor - Depending on the model, there may be a motor to provide power for the compact drill auger, or it may be rotated manually through the handle. Safety - Some models may have a safety lock function to prevent accidents and injuries during operation. Adjustable depth - The compact pile drilling auger can be adjusted to drill to a specific depth to ensure that the drilling depth is exactly the same as the depth required for the installation of the pile or structure. Ease of use - Compact rear hole augers require minimal work, and they can be easily connected to slide steering gear, tractors and other power sources, so they can work quickly and easily. Multi-functionality - The size and weight of the compact column hole auger make it suitable for small and large projects, such as installing fence posts, adding garden decorations or planting trees.

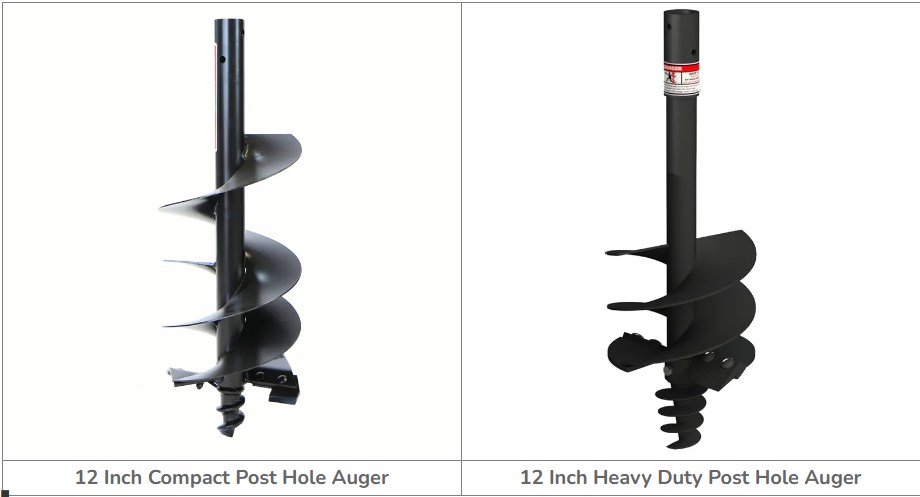

12-inch compact column hole auger and 12-inch heavy column hole auger

The main difference between the 12-inch compact post-drilling auger and the 12-inch heavy-duty post-drilling auger is their size and capacity. The 12-inch compact pile hole auger is small and designed for light to medium operations, such as digging small fence pile holes or planting small trees. It is also easier to manipulate and transport. On the other hand, the 12-inch heavy-duty pile hole auger is larger and designed for larger and more demanding work, such as digging larger fence pile holes or installing larger poles. It is also more durable and can better handle difficult soil conditions. Ultimately, the selection of compact and heavy-duty post-drilling augers will depend on the specific needs of the project at hand. For small and simple operations, a compact post-drilling auger may be sufficient, while for larger or more complex projects, a heavy-duty post-drilling auger may be necessary.

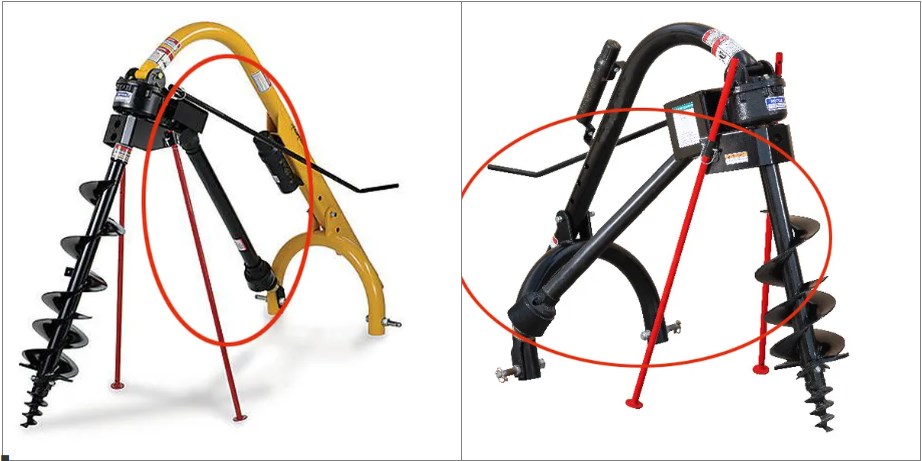

PTO shaft of tractor 3-point pile excavator

PTO (power take-off) shaft is an important part of the tractor three-point rear drilling excavator, which transfers power from the tractor engine to the auger. When selecting the PTO shaft for the tractor 3 point rear excavator, the following points need to be considered: 1. Size: Make sure that the PTO shaft you select matches the size of the tractor PTO output shaft. The most common sizes are 1-3/8 inch (for general use) or 1-3/4 inch (for heavy use). 2. Length: The length of the PTO shaft should be suitable for the setting of your tractor and the excavator after drilling. Make sure it is not too long or too short, and leave enough clearance between the tractor and the auger. 3. Quality: select high-quality PTO shaft that is durable and can withstand a lot of use. Look for brands famous for producing reliable and durable PTO shafts. 4. Maintenance: regularly check and maintain the power output shaft to ensure it is in good condition. Lubricate them as needed and immediately replace any damaged or worn parts. 5. Safety: Always take safety precautions when handling the PTO shaft. Make sure that it is firmly connected to the tractor and pile excavator and that all safety guards are in place. You can obtain the best performance and service life from your equipment by selecting the appropriate PTO shaft for your tractor's three-point rear excavator and ensuring its correct maintenance and safe use.

Maintenance of 12-inch compact cylindrical hole auger Maintenance of the 12-inch compact post-drilling auger is an important step to ensure its life and efficiency. Here are some maintenance tips: (1) Periodic cleaning: After each use, thoroughly clean the auger after drilling to remove any dirt or debris that may accumulate on it. Use a soft cloth or rag to make it look smooth. (2) Lubricating gear box: the digging gear box after drilling is an important part of the auger, which needs regular lubrication to ensure smooth operation. Use the lubricant recommended by the manufacturer and ensure that the gear is not over-lubricated. (3) Check the blades: Check the auger blades for any signs of wear after drilling. If they look dull or damaged, replace them immediately to ensure that the augers work optimally. (4) Check fasteners: ensure that all bolts, nuts and screws are properly tightened. Check them regularly for signs of corrosion or cracking and replace them if necessary. (5) Properly store the auger: when not in use, store the auger after drilling in a cool, dry and safe place. Cover it with waterproof cloth or dust cover to protect it from the influence of bad weather. By following these maintenance tips, your 12-inch compact post-drilling auger should operate efficiently and last for many years.

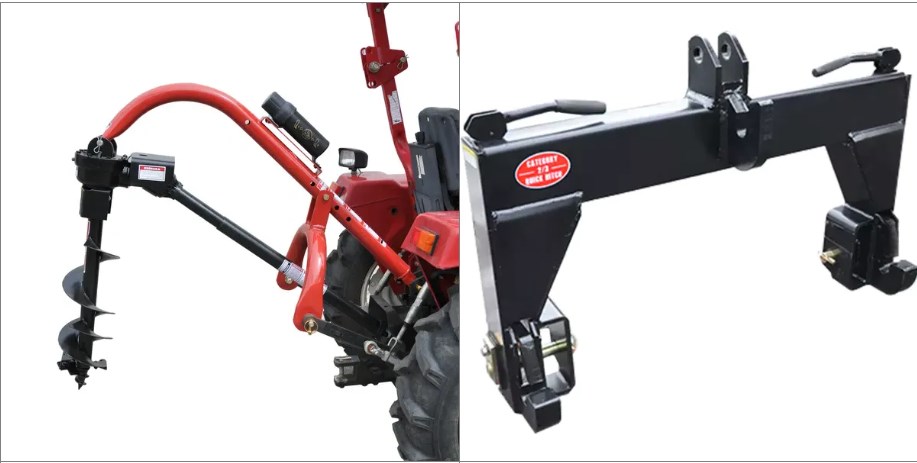

We also provide other tractor pile excavator parts

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
