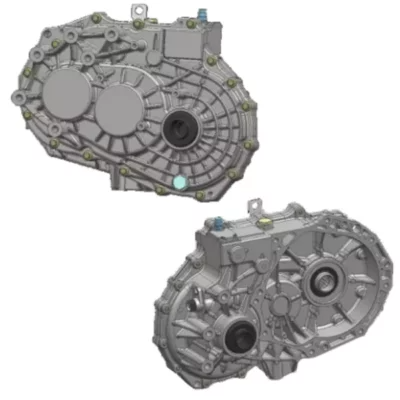

128L01 Reducer Gearbox Assembly for A-class Passenger Car Front Wheel Deceleration

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:128l01 Reducer Gearbox Assembly For A-class Passenger Car Front Wheel Deceleration - Buy Reducer Gearbox Assembly gearbox Assembly For A-class Passenger Car Front Wheel Deceleration reducer Gearbox Assembly For A-class Passenger Car Front Wheel Deceleration Product on CMN Industry Inc

Send Inquiry

Product Description

Product Features

This product is currently used for front wheel drive deceleration of A-class passenger cars

Product Performance
Max Input Torque	T max	280N.m
Max Input Rotation Rate	n max	12000r/min
Centre.to-centre Spacing	A	214mm
Gear Ratio	U	52:27/69:17

What is the function of a vehicle gearbox? The main function of a vehicle gearbox is to convert the engine output speed and torque into speeds and torques suitable for vehicle operation, thereby achieving vehicle driving under different road conditions and speeds. Specifically, the gearbox can achieve matching of different speeds and torques by changing the gear mesh ratio and position. In manual transmission, the driver can select different gear engagement ratios and positions by turning the transmission handle, so as to achieve higher speed and torque output. In automatic transmissions, the meshing ratio and position of gears can be automatically controlled through electronic control systems and sensors to achieve more accurate speed and torque matching. In addition, the gearbox can also achieve better handling and comfort by changing the speed and direction of the vehicle. For example, the CVT automatic transmission can achieve smooth driving and mild acceleration by continuously adjusting the speed and torque output.

Input & Output Spline Parameters
		Input internal spline	Output end internal spline
Tooth system
modulus	m	1	1.6
number of teeth	z	26	16
Pressure angle	a	45°	30°
the modification coefficient	x	0	0

Over Dimension & Weight
Weight(kg)	22
Length	458
AxleTrack	339
Height	218

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
