30W/40W/50W Picosecond Laser Cutting Machine From Chinese Manufacturers

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{width:446px}#det......Keywords:30w/40w/50w Picosecond Laser Cutting Machine From Chinese Manufacturers - Buy Picosecond Laser Cutting Machine laser Engraving Cutting Machine laser Cutting Machine Product on CMN Industry Inc

Send Inquiry

Product Description

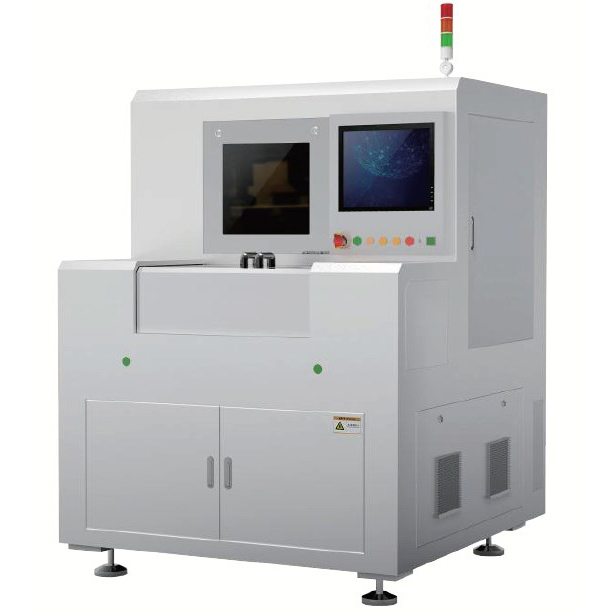

Picosecond Laser Cutting Machine

Product advantages

-Good cutting edge quality

-High speed cutting and drilling

-CCD visual positioning

-Support multiple visual positioning features

-Equipment without consumables and low cost

-Effective processing format 400x400mm

Applications

LCD Panel Ordinary Glass Chemical Glass Optical Glass Brittle Material Mobile Phone Glass Cover Fingerprint Recognition Chip

Wearable Glass Interior Carving

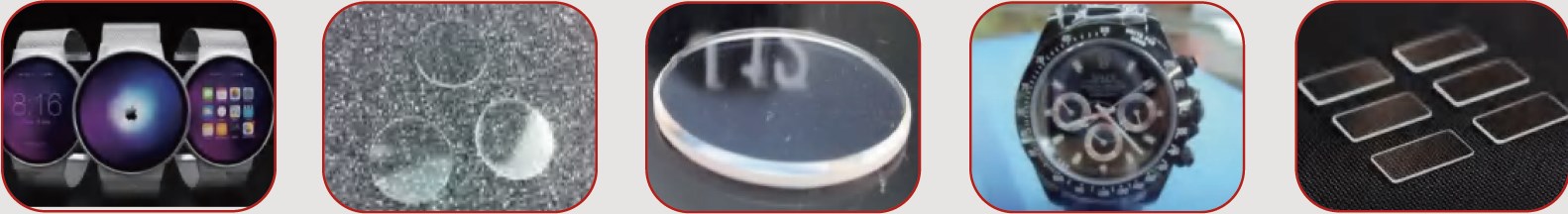

Product samples

For more details, please click here to contact us!

Laser Power	30W/40W/50W
Equipment Station	Single or Double Work Plate
Equipment Type	Infrared Picosecond
Processing Format	400*400mm(Customized)
Processing Speed	Depends on Materials
Processing Chipping	<20um
Minimum Cutting Line Width	<10ym
Cutting Thickness	≤6mm
Processing Radius	≤0.05mm
Glass Material	Normal/Chemical Strenathened GlassCoated Optical Glass
Model Size	164014824850mm

Key Features and Benefits: 1. Ultra-Short Pulse Duration: Picosecond lasers emit pulses with durations in the picosecond range, typically between 1 picosecond and 10 picoseconds. The extremely short pulse duration enables highly precise material removal with minimal heat transfer to the surrounding area. This results in reduced thermal damage and improved cutting quality. 2. High Precision Cutting: Picosecond laser cutting machines offer exceptional precision and accuracy. The short laser pulses generate small heat-affected zones and minimize material splatter, allowing for fine and intricate cutting with sharp edges and minimal burrs. 3. Versatility in Materials: Picosecond laser cutting machines can be used on a wide range of materials, including metals, ceramics, semiconductors, plastics, glass, and composites. They are particularly effective for cutting heat-sensitive or delicate materials due to the minimal thermal impact. 4. Non-contact Cutting: Picosecond laser cutting is a non-contact process, which means the laser beam does not physically touch the material. This reduces the risk of mechanical damage, contamination, or tool wear, making it suitable for sensitive materials or high-value components. 5. Minimal Heat Affected Zone (HAZ): The ultra-short pulses of picosecond lasers result in minimal heat transfer to the surrounding material. This leads to a smaller heat-affected zone, reducing the risk of thermal damage, such as melting, warping, or discoloration. It is particularly beneficial for cutting materials prone to heat-related issues. 6. Fast Cutting Speed: Picosecond laser cutting machines can achieve high cutting speeds, enabling efficient processing and improved productivity. The rapid and precise control of the laser beam allows for fast scanning or traversal over the material, reducing cycle times. 7. Minimal Post-processing: Picosecond laser cutting often produces clean and precise edges, minimizing the need for additional post-processing steps such as deburring or polishing. This can save time and effort in finishing operations. 8. Automation Integration: Picosecond laser cutting machines can be integrated into automated systems, such as CNC (Computer Numerical Control) machines or robotic work cells. This integration allows for high-precision cutting on a larger scale and increased efficiency.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
