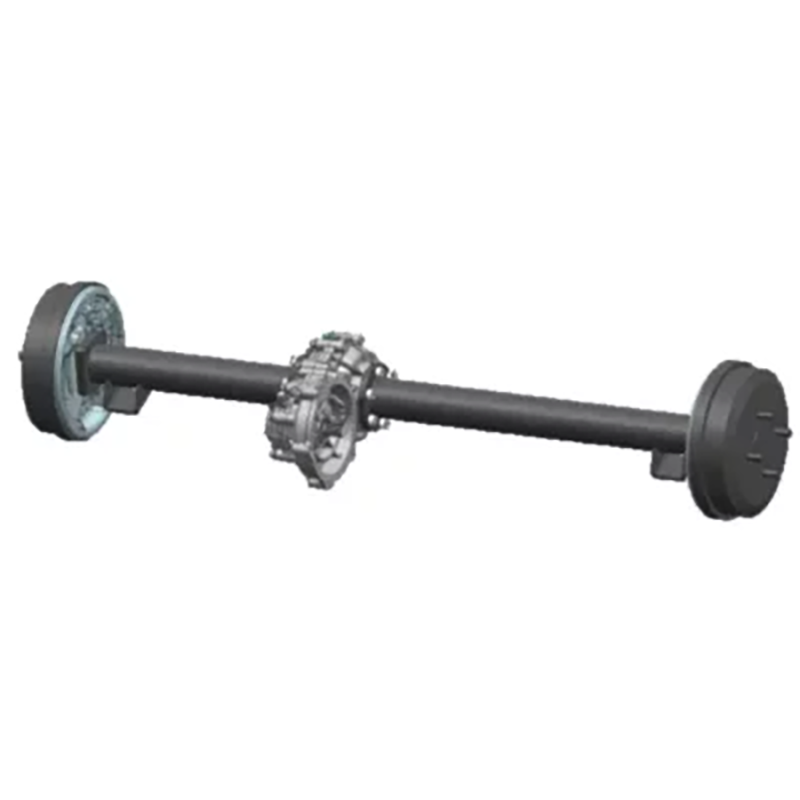

38.5kg EB02 Tricycle Rear Differential Axle Assembly for 3.5KW Electric Tricycle

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:38.5kg Eb02 Tricycle Rear Differential Axle Assembly For 3.5kw Electric Tricycle - Buy Tricycle Rear Differential Axle rear Axle Assembly For 3.5kw Electric Tricycle rear Axle Assembly Product on CMN Industry Inc

Send Inquiry

Product Description

Product Features

EB02 Rear Axle Assembly is currently used for the rear axle of 3.5KW electric tricycles

Product Performance
Max Input Torque	T max	22N.m
Max Input Rotation Rate	n max	4500r/min
Centre.to-centre Spacing	A	136mm
Gear Ratio	U	10.088

Application of rear axle assembly We can provide various modification solutions and have our own axle chassis modification factory. If you need to replace the original rear axle of the car, modify self-made dining cars, tricycles, four-wheeled vehicles, go-karts, forklifts, flatbed trucks, rail cars, trailers, and construction site material trucks, accessories can be provided

Input & Output Spline Parameters
Tooth system		Input internal spline	Output end internal spline
modulus	m	1	1
number of teeth	z	18	25
Pressure angle	a	20°	45°
the modification coefficient	x	0.8	0.1

Over Dimension & Weight
Weight(kg)	38.5
Length	1302
AxleTrack	352
Height	251

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
