Product Description

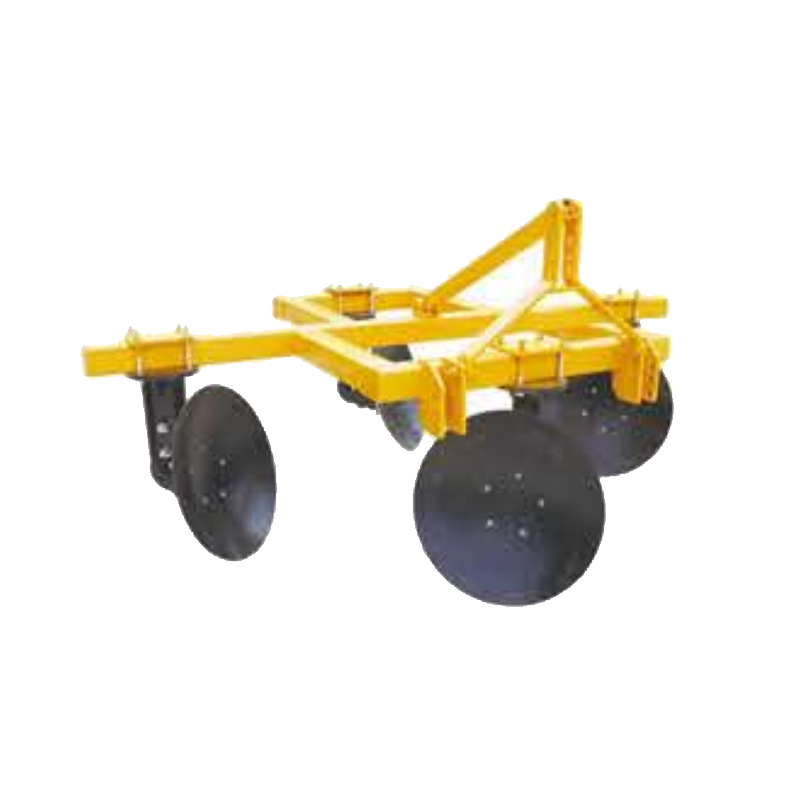

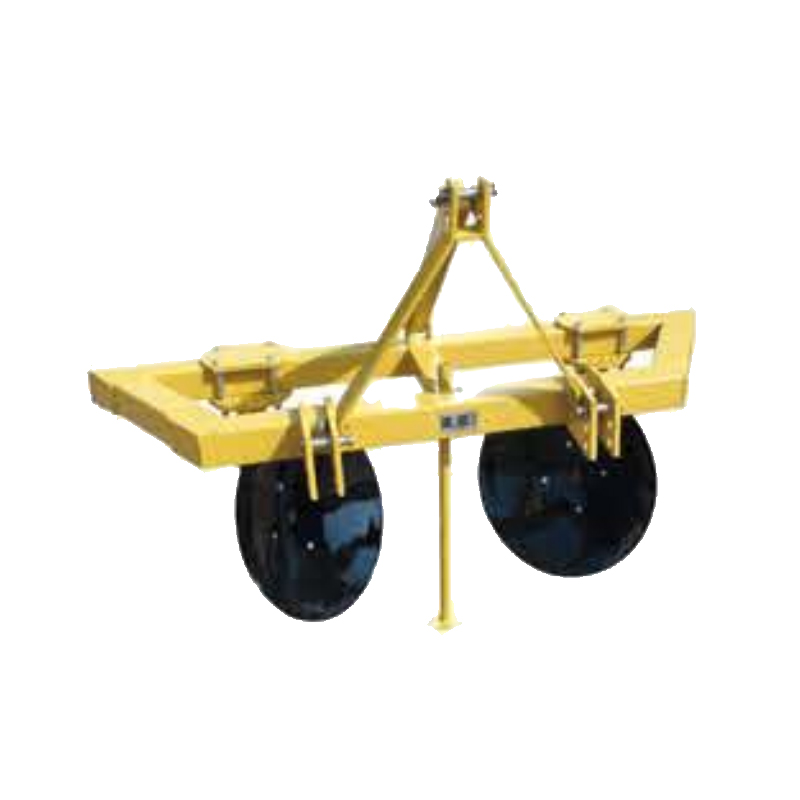

3Z Series Disc Ridger

Disc ridger 3Z series is mainly applied to the field after plowing and ridging operation.It is mainly suitable for potato, bean
and vegetable fields after plowing.

* The machine consists of square tube welded integral rigid machine frame, three-point suspension frame and disc, disc plow blade adopts high quality 65 manganese spring steel, refined by heat treatment processing.
* Disc starter 3Z series of ridge distance, ridge height, the number of rows, angle adjustment is convenient, supporting a wide range of strong adaptability.
* Reasonable structure, durable, easy to transport, easy to adjust, easy to use and maintain and so on.

	Unit	3Z-80	3Z-120	3Z-140	3Z-180	3Z-260
Width of cut	mm	800	1200	1400	1800	2600
Ridging width	mm	200~450			300-500
Ridging height	mm	150-260			150~300
Ridging of rows		1(2)	1(2)	1	1(2)	1(2)
Weight	kg	120	140	220	200	246
Tractor power	kg	20~30	30-40	50-60	60-70	70-90
Mounted cat		Three-point mounted Cat			Three-point mounted CatⅡ
