Product Description

6W-200W AC multi-function (reduction) motor,Small power and large torque, single phase and three phase complete.

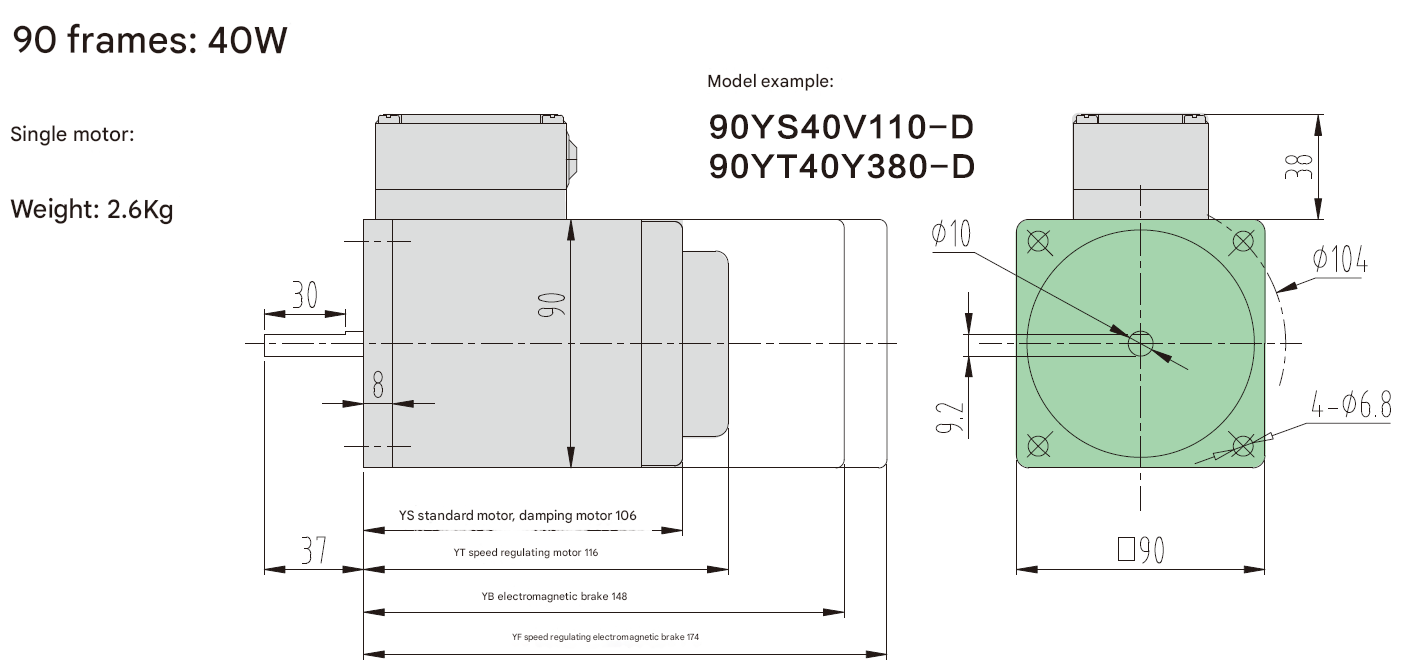

Standard motor 40W (can be equipped with electromagnetic brake)

Speed regulating motor

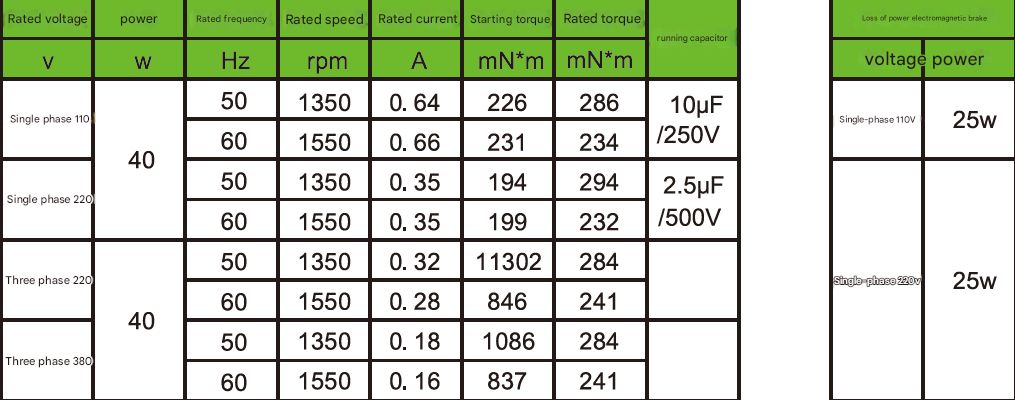

Rated Voltage (V)	Power (W)	Rated Frequency (Hz)	Rated Speed (rpm)	Rated Current (A)	Starting Torque (mN*m)	Rated Torque mN.m	Rated Torque mN.m	Running Capacitor
						90rpm (mN*m)	1200rpm (mN*m)
Single-phase 110	40	50	90-1350	0.64	220	110	300	10µF / 250V
Single-phase 110	40	60	90-1550	0.64	220	110	230	10µF / 250V
Single-phase 220	40	50	90-1350	0.32	220	110	320	2.5µF / 500V
Single-phase 220	40	60	90-1550	0.36	220	110	230	2.5µF / 500V

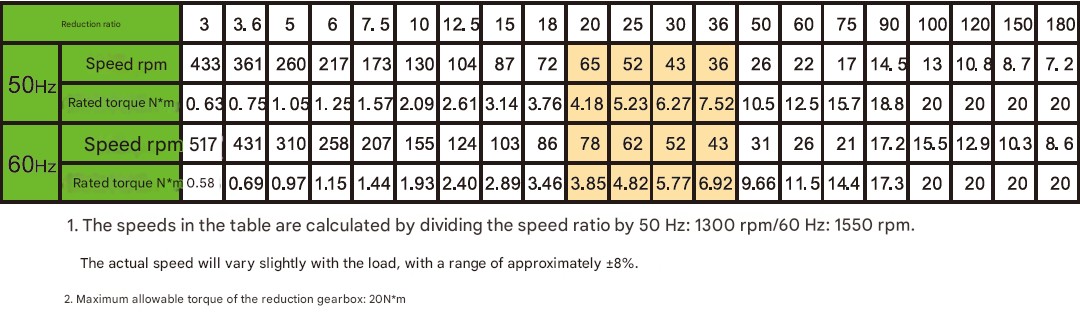

Reduction box performance table

Application

Advantages of Micro Reduction Motor
1. Compact & Lightweight – Small size ideal for space-constrained applications.

2. High Precision – Delivers accurate speed control and positioning for delicate operations.

3. Energy Efficient – Low power consumption with optimized gear ratios.

4. Low Noise & Vibration – Smooth operation suitable for noise-sensitive environments.

5. High Torque Density – Provides significant torque relative to its small size.

6. Long Service Life – Durable materials and precision engineering reduce wear.

7. Easy Integration – Compatible with various drive systems and controllers.

8. Low Maintenance – Sealed designs or pre-lubricated gears minimize servicing needs.

Applications of Micro Reduction Motor
Medical Devices – Surgical robots, infusion pumps, and diagnostic equipment.

Consumer Electronics – Camera lenses, drones, and small appliances.

Automotive Systems – Adjustable mirrors, seat controls, and wiper mechanisms.

Industrial Automation – Miniature conveyors, sorting machines, and robotic arms.

Aerospace – Actuators for small UAVs and satellite components.

Office Equipment – Printers, scanners, and paper feed mechanisms.

Toys & Hobby Models – Remote-controlled cars, animatronics, and DIY projects.

IoT Devices – Smart locks, automated valves, and sensor adjustments.
