6 Inch Compact Post Hole Auger for Tractor 3 Point Post Hole Diggers with 2 Round Shaft

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:6 Inch Compact Post Hole Auger For Tractor 3 Point Post Hole Diggers With 2 Round Shaft - Buy Compact Post Hole Auger 6 Inch Compact Post Hole Auger 6 Inch Compact Post Hole Auger For Tractor 3 Point Post Hole Diggers Product on CMN Industry Inc

Send Inquiry

Product Description

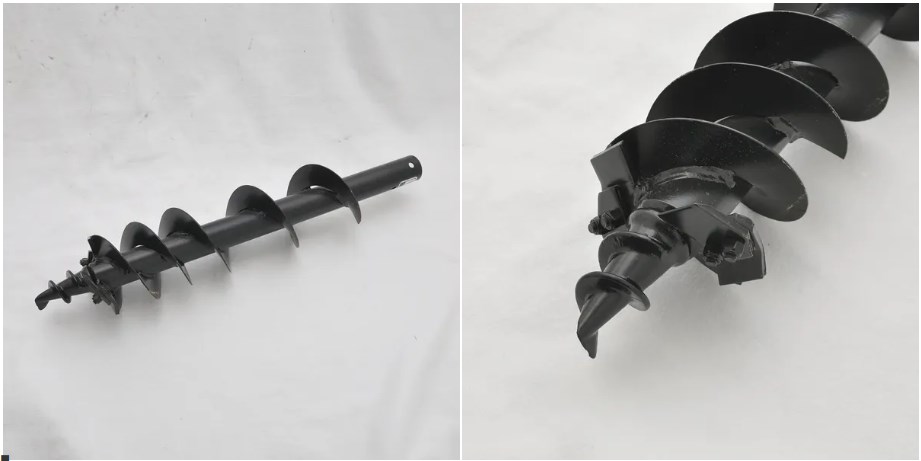

6-inch compact cylindrical drilling auger for tractors, 3-point cylindrical drilling machine with 2 "round shaft

The 6-inch compact pile hole auger is a tool used to drill holes in the ground for placing fence posts, marker posts or trees. It is designed for small work and can adapt to narrow space. The diameter of the auger after drilling is 6 inches, which means that the diameter of the hole it will drill will be 6 inches. The compact design of this tool makes drilling easier and faster than manual excavation.

6 inch compact cylindrical auger specifications -Length 36" -Alternate sides -Diameter 6" -The design length is short, which is suitable for small tractors (Class 0) -Use double 1/2 "bolts to connect to 2" round gearbox shaft (not included) -It is applicable to our Model 400 compact pile excavator or other brands. -Light, compact screw conveyor. -It is a good complement to the pile excavator driven by hand-held or three-point tractor.

Some of the best augers for sale after drilling

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037

6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036

6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

For more details, please click here to contact us!

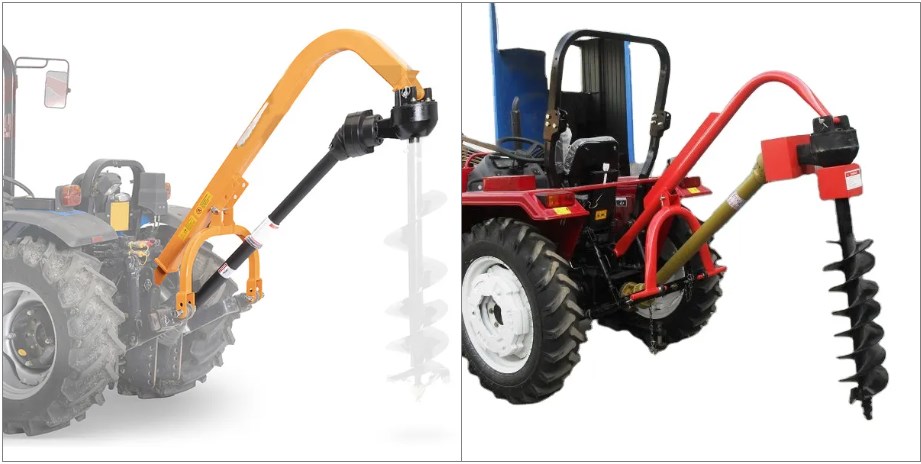

Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

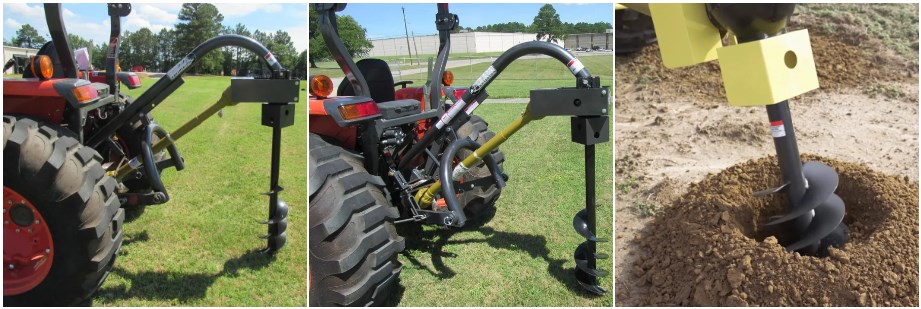

How to use the tractor to dig the pile hole?

It is very simple to excavate the pile hole with a tractor and a 3-point pile hole excavator, just follow the following steps: How to use the tractor to dig the pile hole 3-point pile hole excavator How to use the tractor to dig the pile hole (1) Select the appropriate location for the pile hole - ensure that the pile hole is in the appropriate location of the fence or structure, and there are no underground facilities. (2) Set up the pile excavator - connect the 3-point pile excavator to the rear of the tractor, and adjust the height of the excavator so that it is slightly higher than the ground. (3) Position the tractor - Position the tractor so that the excavator after drilling is aligned with the position where you want to dig the hole, and the auger of the excavator is at the center of the position. (4) Start the excavator - start the tractor engine and engage the PTO shaft. Slowly lower the excavator until the auger contacts the ground. (5) Start digging - use the tractor and pile hole excavator to start digging the ground. Make sure to keep the speed low to prevent the excavator from bouncing, which may lead to poor drilling quality. (6) Continue excavation - gradually lower the excavator as the depth of excavation deepens. Continue digging until the required depth is reached. You can remove dirt from the hole by lifting the auger out of the hole and tilting it back using the tractor hydraulics. (7) Done - Once you dig the hole to the depth you want, turn off the tractor engine and raise the rear digger. Now, you can continue to fill the hole with concrete or soil, and install fence posts or other structures.

Advantages of 6-inch compact tractor column hole auger The auger after drilling with a 6-inch compact tractor has several advantages, including: Efficient excavation: With the powerful tractor providing the necessary torque, the 6-inch compact post-drilling auger can quickly and efficiently dig holes of specified size. Ease of use: The 6-inch drilled auger can be operated comfortably on the tractor seat without manual excavation and reduces the physical consumption required to complete the work. Accuracy: The bored pile auger can drill to a uniform size to ensure that the pile or tree is properly fixed in place. Multi-functionality: 6-inch compact pile hole auger can be used for various tasks, including erecting fences, planting trees or installing signs. Cost-effectiveness: This type of post-drilling auger is cheaper than large drilling machines, which is an affordable option for those who need small-scale drilling. Compact design: The compact design of this 6-inch compact post-drilling auger makes it easy to transport and store when not in use, without occupying too much space. In general, the auger after drilling with a 6-inch compact tractor can bring many benefits, including saving time and labor, accuracy, versatility and economy.

PTO shaft of tractor 3-point column hole auger

The power take-off shaft is sturdy and durable • Quick disconnect 1-3/8 "6 splines, which can be installed on standard tractors • The adjustable telescopic tube can handle the high load requirements given by the series name • Used for various equipment, such as post-drilling excavator, paver, tiller, lawn mower, etc. • Interchangeable with other manufacturers

Series	Shortest Length	Extended Length	Tractor End	Implement End	Common Uses	SKU
1	27	34	1-3/8" x 6 QD	1-3/8" x 6 QD	Fertilizer Spreader	27-010
3	40	54	1-3/8" x 6 QD	1-3/8" x 6 QD	Finishing Mower, Tiller	27-011
4	30	40	1-3/8" x 6 QD	1-3/8" Round	Finishing Mower, Tiller	27-012
4	32	42	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutter	27-013
4	36	43	1-3/8" x 6 QD	1-3/8"x6 Clutch	Rotary Cutter, Tiller	27-014
4	37	50	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters, Pond	27-015
4	42	58	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-016
4	48	65	1-3/8" x 6 QD	1-3/8" x 6 QD	Post Hole Digger	27-017
4	53	74	1-3/8" x 6 QD	1-1/4" Round	Post Hole Digger	27-018
5	42	57	1-3/8" x 6 QD	1-3/8" Round	Rotary Cutters	27-019
12	48	64	1-3/8" x 6 QD	1-1/4" Round	Heavy Duty Digger	27-020
14	37	49	1-3/8" x 6 QD	1-3/8" Round	Post Hole Digger	27-021
14	56	77	1-3/8" x 6 QD	1-3/8" Round	5' & 6' Pull Cutters	27-022

How do I connect the PTO shaft to the tractor column hole auger?

Connecting the PTO shaft to the tractor column hole auger is very important to ensure that the auger can be powered by the tractor engine. Before starting, you need to make sure that the tractor and auger are turned off and the auger is in the neutral position. The following is a step-by-step guide for connecting the PTO shaft to the tractor column hole auger: How to connect the PTO shaft to the tractor column hole auger How to connect the PTO shaft to the tractor column hole auger 1. Position the PTO shaft on the tractor, which is usually under the tractor seat. 2. Align the splines on the tractor PTO shaft with the splines on the auger PTO coupling. 3. Push the splines together until they engage. You may need to turn the tractor column hole auger shaft slightly to align the splines. 4. Once the spline is engaged, slide the locking ring onto the coupling and lock it in place. 5. Tighten the set screw on the locking ring to fix it in place. 6. Check that the PTO shaft and the tractor column hole auger are correctly aligned and free from jamming or interference. 7. Start the tractor and engage the PTO shaft. The auger should now be powered up and ready for use after the tractor has drilled. Always operate the PTO shaft carefully and observe all safety instructions provided by the manufacturer.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
