6 Inch Standard Duty Earth Auger for 3-Point Tractor Mounted Post Hole Diggers

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:6 Inch Standard Duty Earth Auger For 3-point Tractor Mounted Post Hole Diggers - Buy 6 Inch Standard Duty Earth Auger earth Auger 6 Inch Standard Duty Earth Auger For 3-point Tractor Product on CMN Industry Inc

Send Inquiry

Product Description

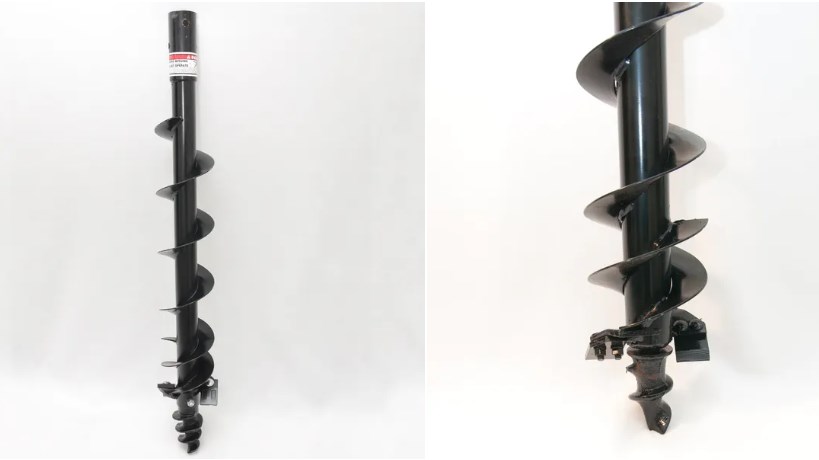

6 Inch Standard Duty Earth Auger for 3-Point Tractor Mounted Post Hole Diggers

The 6-inch standard auger is a tool for drilling holes on the ground. It is usually used for building and landscaping, and for installing fence posts, trees and other structures. The diameter of the auger is 6 inches, which means it can drill holes with a diameter of 6 inches. The name of "standard load" means that it is designed for general soil conditions and moderate use. When using standard soil drill, proper safety regulations must be observed and used carefully to avoid injury.

6 inch standard ground auger specifications

-This is a new 6 "soil drill, which is suitable for the pile excavator installed on the three-point tractor. -OEM equipment of Speedo 65 and 70 excavators, our post-drilling excavators, and more! Replaceable cutting edge. It is sold by us and most farm stores. Installed on all gearboxes with 2 "smooth bore output shafts... King Cutter, Speedo, Country Line, Work Saver, Bush Hog, etc. 6 "diameter. 48 inches long. Gearbox shaft mounting bolt holes are located at 2 "centers at 90 degrees from each other (standard) High quality unit, great excavation!! With the support of our excellent customer support team.

6-inch standard soil auger for sale

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037

6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036

6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

For more details, please click here to contact us!

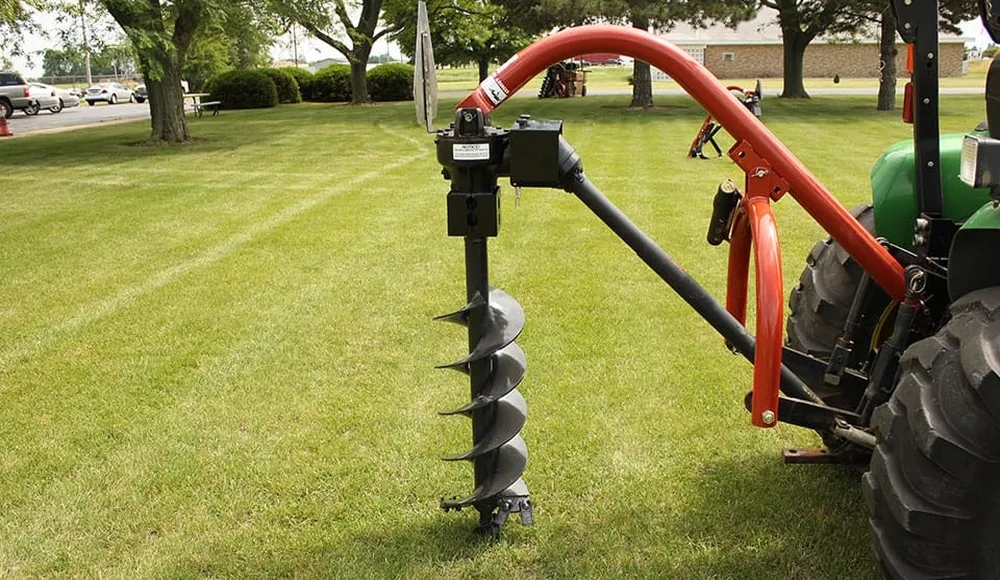

Post Hole Auger for 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3' lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150 bs	160 bs	200 bs	235 bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

Precautions for drilling operation of 6-inch standard soil auger

Before operating the 6-inch standard soil drill, the following precautions should be taken: Precautions for drilling operation of 6-inch standard soil auger (1) Wear protective clothing: wear protective clothing, such as gloves, protective glasses and strong work boots, to protect yourself from injury while drilling. (2) Inspection area: Before drilling, check the area for any obstacles, such as rocks, tree roots and underground utility lines. Be sure to mark and avoid them. (3) Follow the manufacturer's instructions: carefully follow the manufacturer's instructions when assembling, preparing and using the soil drill. (4) Site preparation: remove debris and uneven ground before drilling to ensure the site is flat. (5) Apply pressure carefully: apply pressure to the earth auger bit gently and slowly before accelerating. Excessive pressure can cause the auger to jam or break. (6) Monitoring auger: continuously monitor the auger bit during drilling to avoid overheating or other failures. (7) Keep level: keep the soil drill level when drilling. Excessive tilt can cause the soil auger to lose its balance, which can lead to a dangerous situation. (8) Shut down the engine: When releasing the soil auger or moving it to another position, be sure to shut down the engine. (9) Regular maintenance: properly maintain the soil auger by regularly cleaning and lubricating the moving parts. Check the soil auger before and after each use to ensure it is in good condition. By following these precautions, the operator can ensure that the 6-inch standard soil drill is used for safe and efficient drilling operations.

6 inch standard load soil auger characteristics A 6 inch standard load soil auger usually has the following characteristics: Diameter: The diameter of a 6-inch soil drill is 6 inches, which is the diameter of the hole it forms. Length: The length of a 6-inch soil drill is usually about 36 inches, but may vary depending on the manufacturer and model. Material: 6-inch soil drill is usually made of high-strength steel with durability and performance. Flight: The 6-inch auger has spiral flight and is designed to remove the soil from the hole during drilling. Power supply: The 6-inch auger bit can be powered manually. The hand-held tool of the rotary auger bit can also be powered by the motor on the tractor and other machines. Excavation depth: A 6-inch soil auger can usually dig a 36-inch hole, although this can be adjusted according to the application. Application: This type of 6-inch soil drill is an ideal choice for a series of projects, such as fence post installation, gardening and landscaping.

Installing the PTO shaft of the pile excavator on the three-point tractor

The three-point column-hole excavator installed on the tractor requires a PTO (power take-off) shaft because it is used to transfer power from the tractor to the column-hole excavator to turn the auger. The following are some features of the PTO shaft of a pile excavator installed on a three-point tractor: Three-point tractor installation PTO shaft of pile excavator Three-point bulldozer installation PTO shaft of pile excavator 1. Size: The power take-off shaft has different sizes and styles, but for the pile hole excavator installed on the three-point tractor, the size of the shaft is usually 1 3/8 inch (35 mm) in diameter. 2. Length: The length of the PTO shaft will vary according to the size of the tractor and the length of the implement used. It is important to obtain the correct length to ensure correct operation. 3. Connection: PTO shaft has male connector and female connector, which need to be matched with tractor and implement. The male connector is the splined end connected to the implement, and the female connector is the yoke connected to the tractor. 4. Safety: If used improperly, the PTO shaft may be dangerous, so it is important to observe all safety precautions during use. The shaft shall have protective devices covering rotating parts to prevent injury. Maintenance: The power take-off needs regular maintenance to prevent wear. It is important to lubricate the shaft and check for any signs of damage or wear to maintain its normal operation. Compatibility: It is important to ensure that the PTO shaft is compatible with the tractor and rear excavator to ensure safe and efficient operation.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
