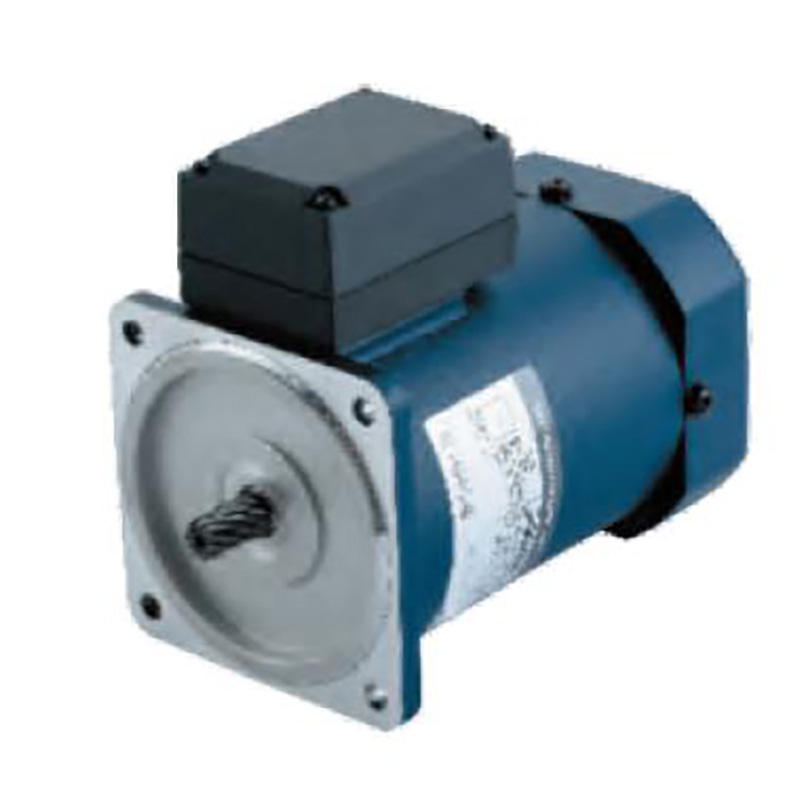

60W Signle-Phase High Efficiency Metal Gear Motor Gear Shaft Micro Reduction Motor with Rectangular Solid Shaft Reducer

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:60w Signle-phase High Efficiency Metal Gear Motor Gear Shaft Micro Reduction Motor With Rectangular Solid Shaft Reducer - Buy 60w Signle-phase High Efficiency Metal Gear Motor Gear Shaft Micro Reduction Motor With Rectangular Solid Shaft Reducer Large Torque Ac Custom Ac Gear Motor Small Ac Motor With Gearbox High Torque Low Rpm Electric Motor Brushed Ac Motor Brushless Ac Motor 6v 12v 24v Ac Motor Micro Motor Manufacturer Oem Odm Motor Services Industrial Automation Motor With Gearbox Reduced Motor Product on CMN Industry Inc

Send Inquiry

Product Description

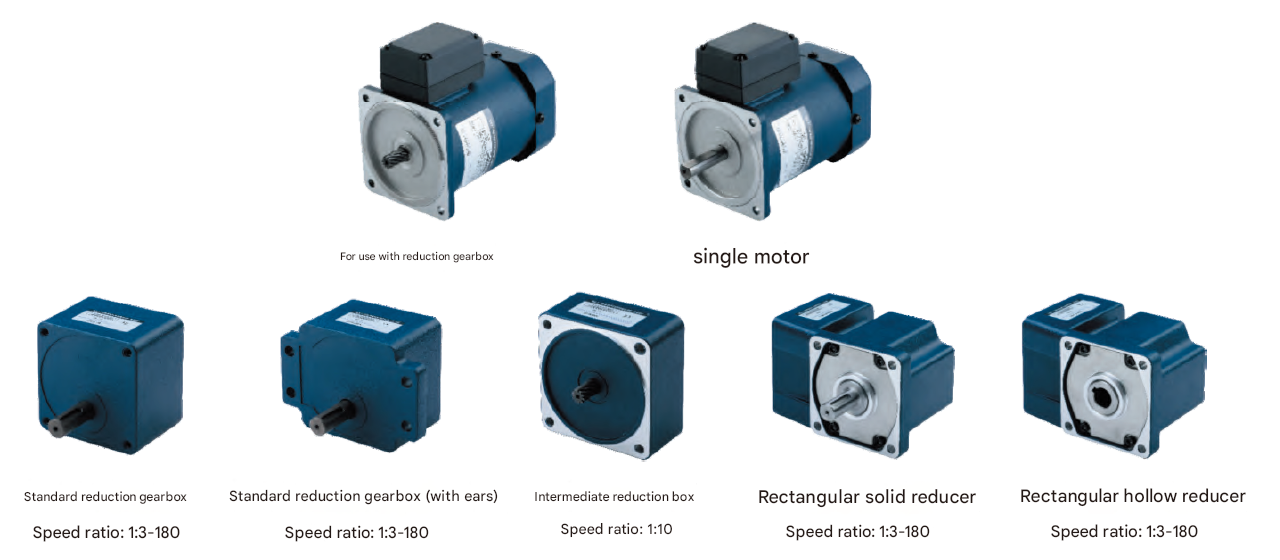

6W-200W AC multi-function (reduction) motor,Small power and large torque, single phase and three phase complete.

Standard motor 25W (Electromagnetic brake can be attached)

Speed regulating motor

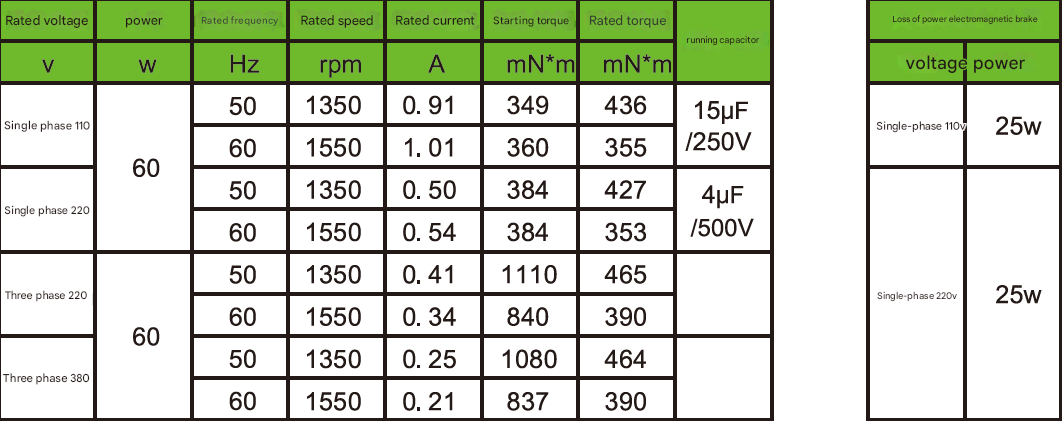

Rated Voltage V	Power W	Rated Frequency Hz	Rated Speed rpm	Rated Current A	Starting Torque mN·m	Rated Torque mN·m			Running Capacitor
						90rpm	1200rpm
Single-phase 110	60	50	90-1350	0.92	350	175	450	15µF / 250V
Single-phase 110	60	60	90-1550	0.93	350	175	360	15µF / 250V
Single-phase 220	60	50	90-1350	0.47	350	175	450	4µF / 500V
Single-phase 220	60	60	90-1550	0.5	350	175	360	4µF / 500V

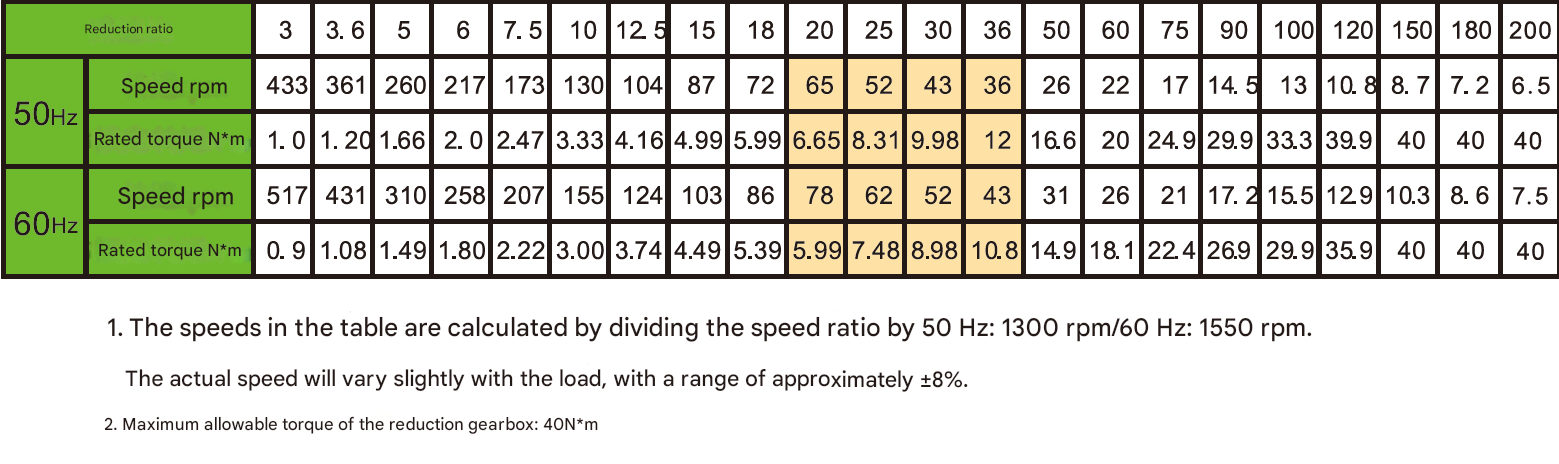

Reduction box performance table

Application

Advantages of Micro Reduction Motor
1. Compact & Lightweight – Small size ideal for space-constrained applications.

2. High Precision – Delivers accurate speed control and positioning for delicate operations.

3. Energy Efficient – Low power consumption with optimized gear ratios.

4. Low Noise & Vibration – Smooth operation suitable for noise-sensitive environments.

5. High Torque Density – Provides significant torque relative to its small size.

6. Long Service Life – Durable materials and precision engineering reduce wear.

7. Easy Integration – Compatible with various drive systems and controllers.

8. Low Maintenance – Sealed designs or pre-lubricated gears minimize servicing needs.

Applications of Micro Reduction Motor
Medical Devices – Surgical robots, infusion pumps, and diagnostic equipment.

Consumer Electronics – Camera lenses, drones, and small appliances.

Automotive Systems – Adjustable mirrors, seat controls, and wiper mechanisms.

Industrial Automation – Miniature conveyors, sorting machines, and robotic arms.

Aerospace – Actuators for small UAVs and satellite components.

Office Equipment – Printers, scanners, and paper feed mechanisms.

Toys & Hobby Models – Remote-controlled cars, animatronics, and DIY projects.

IoT Devices – Smart locks, automated valves, and sensor adjustments.
