Product Description

EVER POWER specializes in the development and production of hyperboloid right-angle reducers. These products feature a compact, aesthetically pleasing design; they are oil-resistant and durable, requiring no regular lubrication. The gear materials and craftsmanship are professionally guaranteed for a long lifespan; they offer low noise and minimal vibration; and they are widely adaptable, with options for non-standard voltages and frequencies available or customizable. EVER POWER is equipped with a professional reducer design and R&D team and can undertake the development and production of non-standard reducers. We welcome new and existing customers to visit us and collaborate with us.

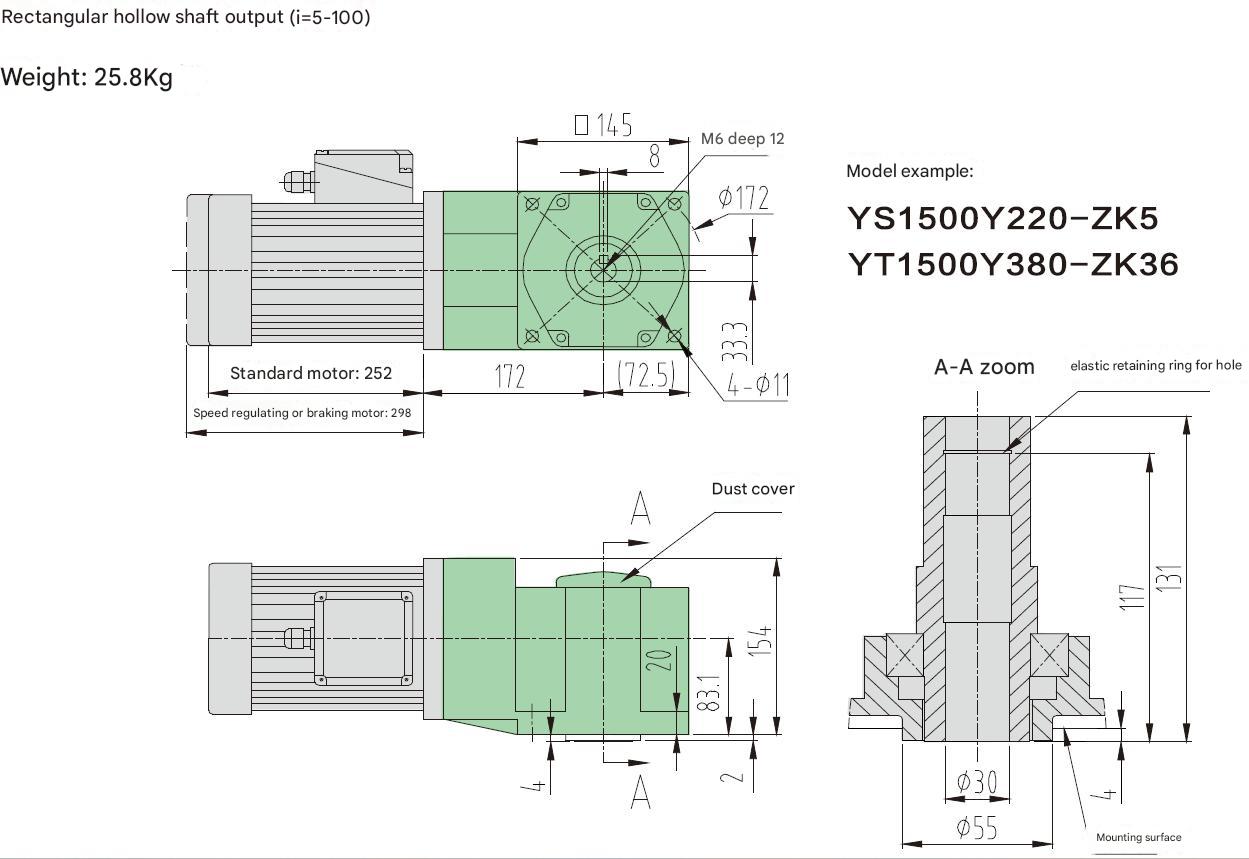

Rectangular hollow shaft output (i=5-100)

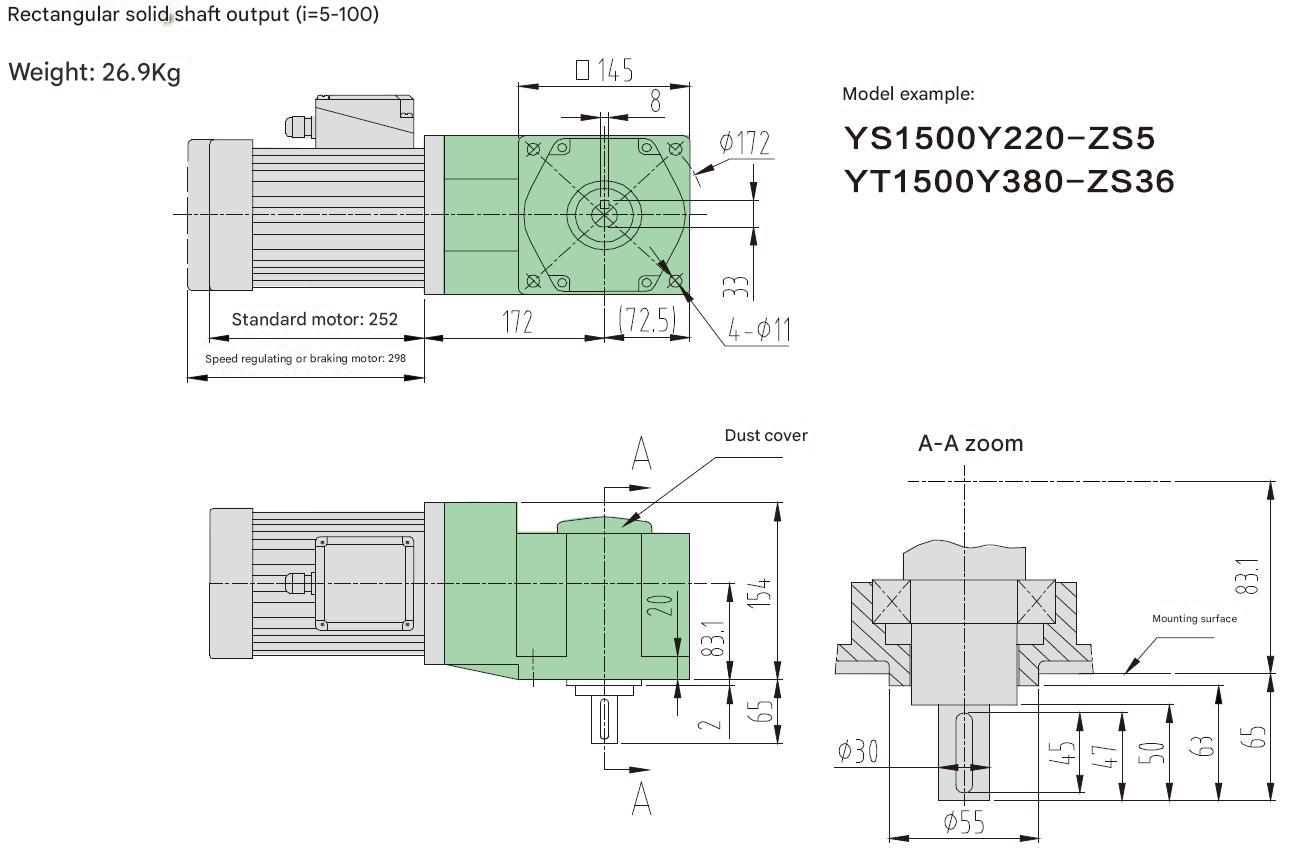

Rectangular solid shaft output (i=5-100)

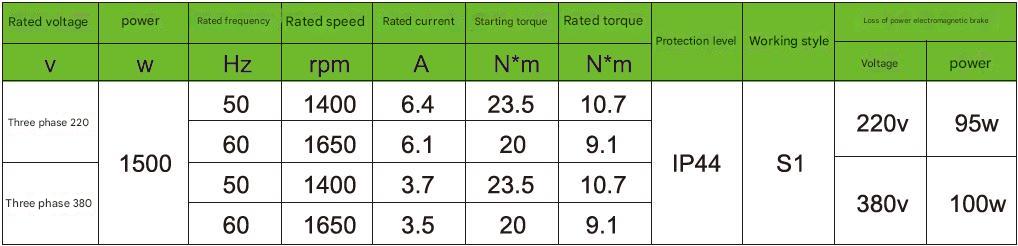

Standard Motor 1.5kw
Rated Voltage V	Power W	Rated Frequency Hz	Rated Speed rpm	Rated Current A	Starting Torque N·m	Rated Torque N·m	Protection Class	Duty Cycle
3-phase 220	1500	50	1400	6.4	23.5	10.7	IP44	S1
3-phase 220				60	1650	6.1			20	9.1
3-phase 380			50	1400	3.7	23.5			10.7
3-phase 380				60	1650	3.5			20	9.1

Electromagnetic Brake Motor 1500 W

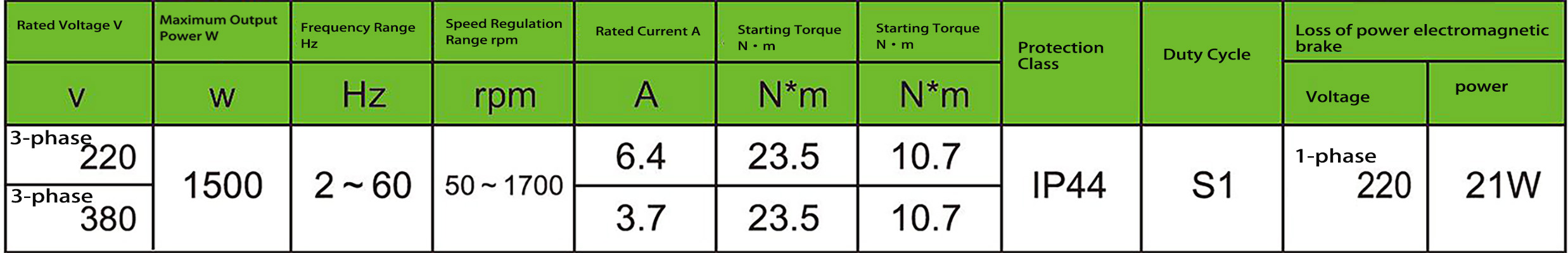

Variable Frequency Speed Regulation Motor 1500 W

Application

Advantages of Medium-Sized Right-Angle Bevel Gear Reducer
1. Space-Efficient 90° Power Transmission – Compact right-angle design optimizes layout in tight spaces.

2. High Torque Capacity – Robust bevel gears efficiently transfer power at 90° with minimal energy loss.

3. Smooth & Quiet Operation – Precision-ground gears reduce vibration and noise for improved performance.

4. Durable Construction – Hardened alloy steel gears and cast iron/aluminum housing ensure long service life.

5. High Efficiency (Up to 95%) – Optimized tooth profile minimizes friction and heat generation.

6. Versatile Mounting Options – Supports foot-mounted, flange-mounted, or shaft-mounted configurations.

7. Low Maintenance – Sealed design with long-life lubrication reduces downtime.

8. Wide Ratio Range – Accommodates various speed reduction needs (typically 1:1 to 6:1).

Applications of Medium-Sized Right-Angle Bevel Gear Reducer
Conveyor Systems – Powers curves, transfers, and elevation changes in material handling.

Packaging Machinery – Drives rotary fillers, labelers, and case packers.

Agricultural Equipment – Powers PTO shafts, feed mixers, and irrigation pumps.

Food Processing – Hygienic designs for mixers, slicers, and bottling lines.

Construction Machinery – Excavator attachments, concrete mixers, and hoists.

Printing Presses – Provides precise 90° power transfer for rollers.

Textile Machinery – Drives looms, winders, and fiber processing equipment.

Renewable Energy – Solar tracker systems and small wind turbines.

Orthogonal shaft reduction box
