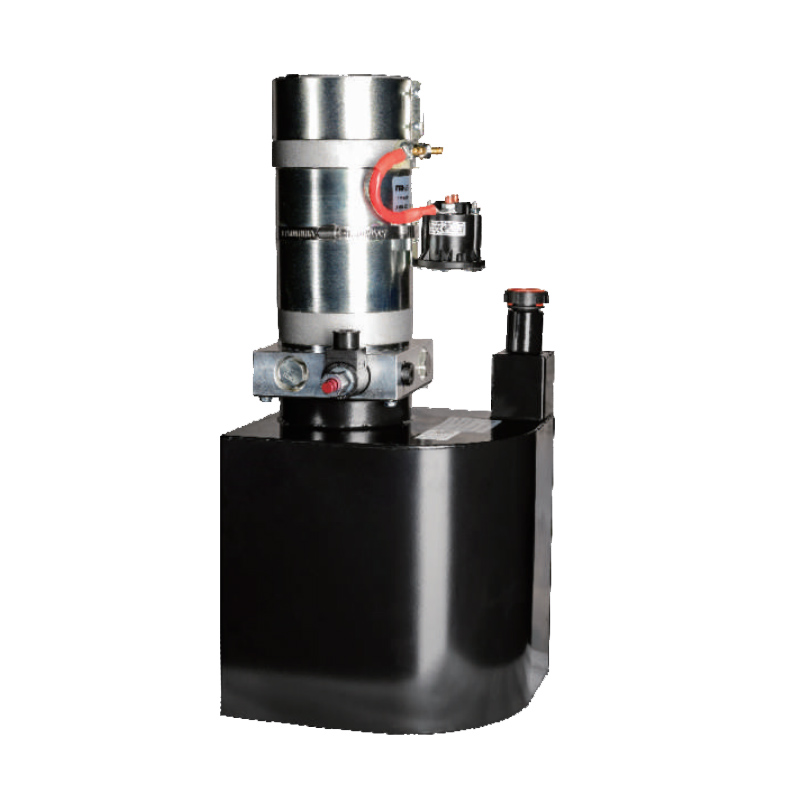

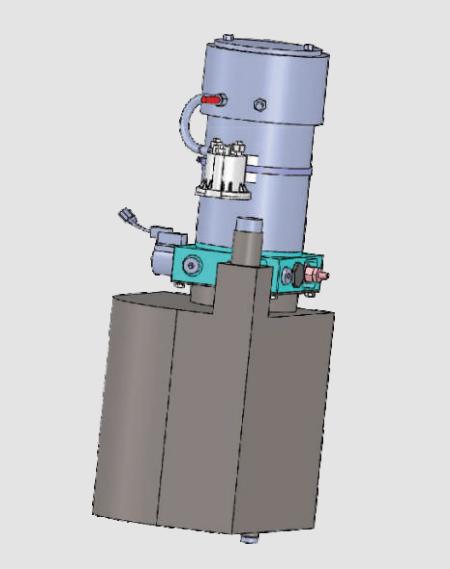

ABDS201 Electric Pallet Trucks Series 24V Hydraulic Power Unit

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:Abds201 Electric Pallet Trucks Series 24v Hydraulic Power Unit - Buy Abds201 Electric Pallet Trucks Series Hydraulic Power Unit hydraulic Power Unit hydraulic Parts Product on CMN Industry Inc

Send Inquiry

Product Description

Features

---Mainly used for logistics equipment, automobile warranty equipment, mining machinery, agricultural machinery.machine tool fixture, automobile, loader, snow plow, lifting platform;

---Simple principle,reliable performance, easy maintenance;

---Compact structural, beautiful appearance, and small overall layout space;Through different combinations of hydraulic valves, there are more than 200 hydraulic circuits for customers tochoose: ---Adopt high efficiency, low noise, small volume of high pressure small displacement gear pump, pumpdisplacement selection range is large; ---Can use DCC motor, motor voltage selection range is large;

---With high performance, zero leakage cartridge valve, pressure maintaining good performance,

----Each valve pressure loss is small, low energy consumption, economic and environmental protection;Can be used with manual emergency operation reversing valve, high safety;

---The electromagnetic proportional reversing valve can be used to realize the proportional control of the runningspeed of the actuator: ---Return oil using throttle valve, steady drop, small hydraulic impact;

---The valve block is made of high strength aluminum alloy, light weight and not easy to rust,

---The use of universal standard jack, good technology;Electric control or manual operation;

Technical parameters	ABDS201 Piling truck series	Forward stacker car series	Picking up cart series
Dc voltage (V)	24	24.	24
Motor power (kW)	2.2/3.0	3.0	3.2
Rated speed (r/min)	2750/2850	2850	3150
Pump displacement(m//r)	2.7/3.7	3.7	3.7
Noise (dB)	≤70
Overflow valve (MPa)	18/20	20.5	21
Electromagnetic valve	Proportionalelectromaqnetic valve
Throttle valve (L/min)	17	15	15
Port screw thread	G1/4 M14x1.5、M16x1.5、Can be customized

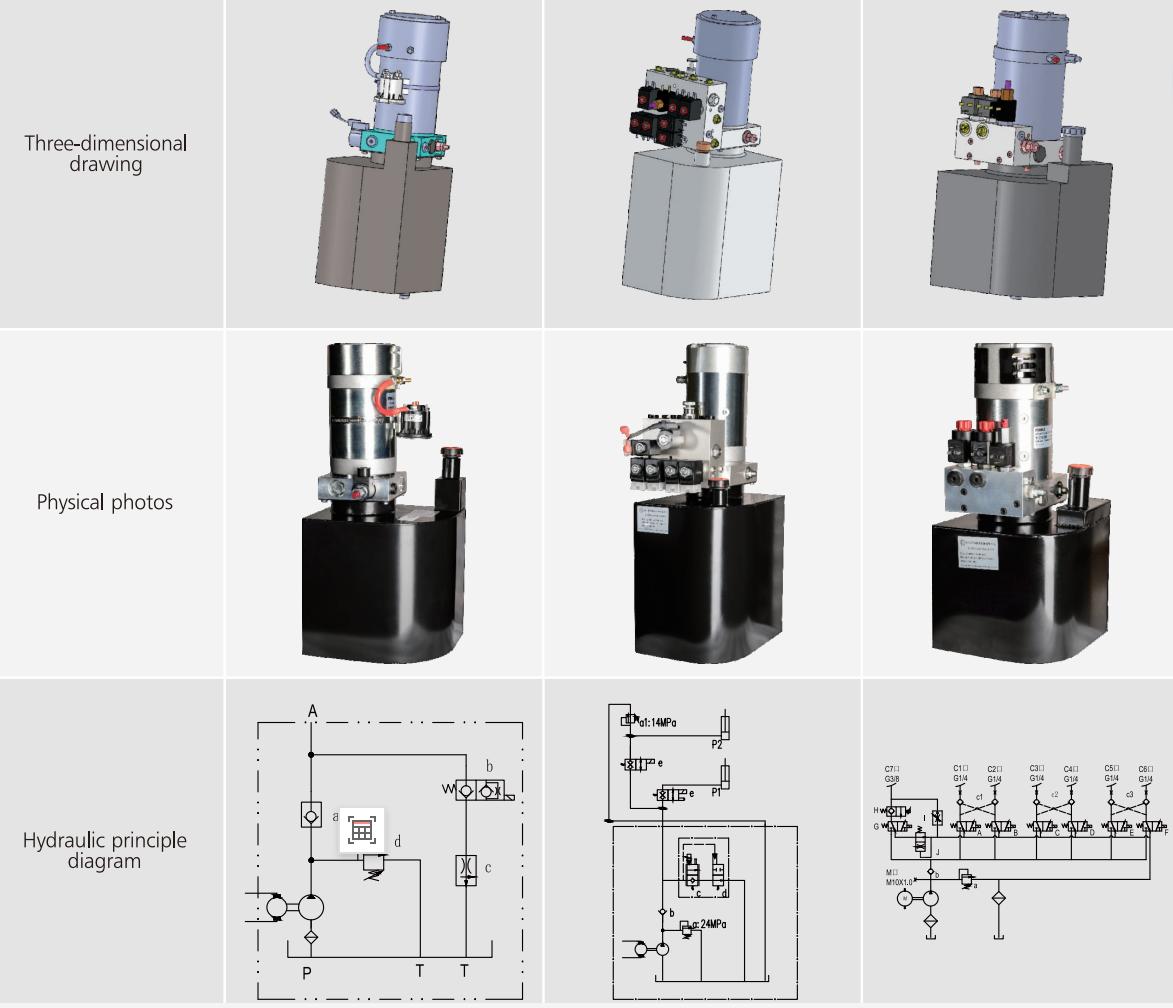

Hydrualic principle diagram

EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
