AC Servo Motor Standard Frame Size 1000/750rpm Rare Earth Permanent Magnet Energy-saving Three Phase Synchronous Motors

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Ac Servo Motor Standard Frame Size 1000/750rpm Rare Earth Permanent Magnet Energy-saving Three Phase Synchronous Motors - Buy Rare Earth Permanent Magnet 3-phase Synchronous Motor Ac Servo Motor High Efficiency Ac Servo Motor Energy Saving Low Noise High Torque Density Compact Size Variable Speed Application Industrial Automation Robotics Cnc Machine Tools Electric Vehicles Renewable Energy Systems Permanent Magnet Generator Totally Enclosed Synchronous Motor With Rare Earth Permanent Magnet Product on CMN Industry Inc

Send Inquiry

Product Description

Product overview

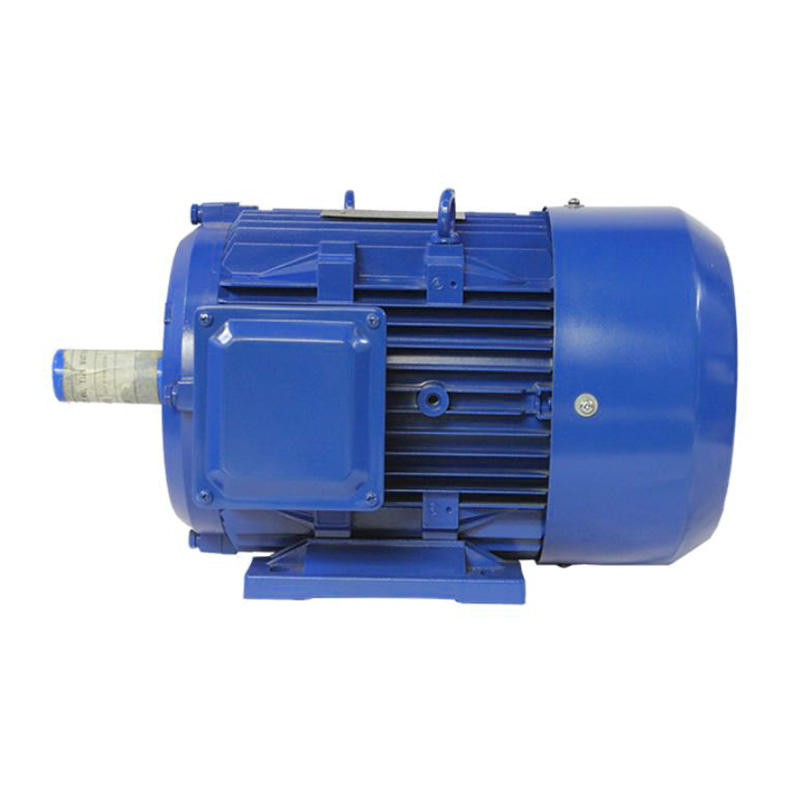

TYC series (IP55) rare earth permanent magnet three-phase synchronous motor Overview SUMMARY The TYC series ultra-high efficiency rare earth permanent magnet synchronous motor, which exceeds the IE4 efficiency standard, is our company's latest green energy-saving motor. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates with encoderless vector control, and has an internal magnetic steel structure. It has the advantages of high efficiency, reliable operation, and good installation interchangeability. MAIN CHARACTERISTICS Simple and reliable structure: encoderless vector control can achieve smooth stepless speed regulation from 0 to 1.5 times the rated speed, and can achieve unlimited start and stop. High protection level: IP55 protection level eliminates the disadvantage of permanent magnets of motors with lower protection levels absorbing iron dust and blocking the air gap. Strong anti-demagnetization ability: adopts internal magnetic steel structure and designs a higher maximum demagnetization working point. High power density and small size: The permanent magnet magnetic field of the motor rotor and the rotating magnetic field of the stator run synchronously without slip loss. The stator winding does not need to absorb reactive current from the power grid, which greatly reduces motor loss and temperature rise. Under the same power and torque, the motor mass and volume can be reduced by 70%, and the frame size or center height can be reduced by 1~2 levels. Ultra-High Efficiency Operation: This motor meets the Class 1 energy efficiency standard specified in GB/30253-2024, "Energy Efficiency Limits and Efficiency Grades for Permanent Magnet Synchronous Motors," and exceeds the IE4 efficiency standard (stray losses are calculated using the recommended values of the 112B method). IE5 or higher efficiency standards can be provided upon request. The motor also delivers exceptional efficiency across the entire speed and power range.

Main Specifications & Technical Data

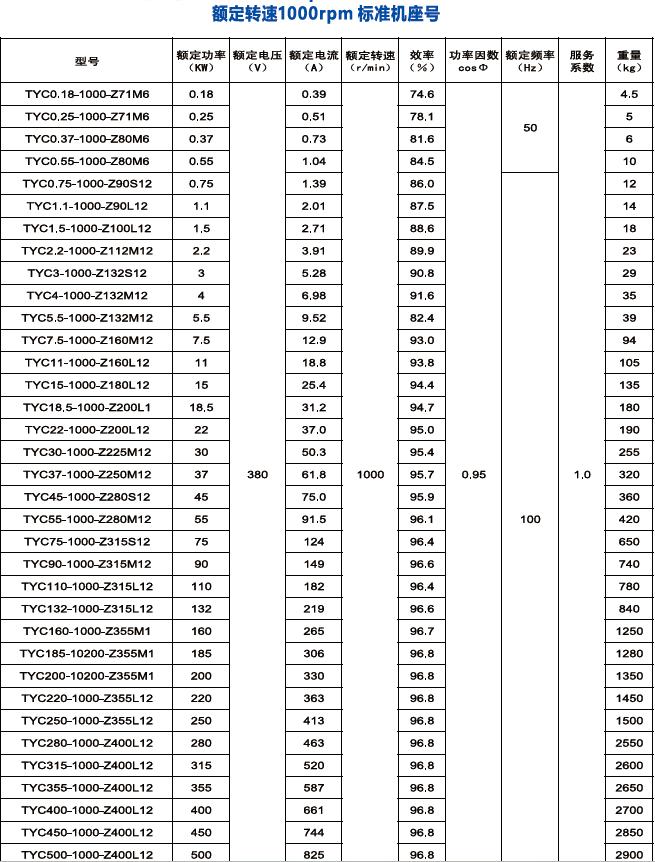

Model	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cos φ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC0.18-1000-Z71M6	0.18	380	0.39	1000	74.6	0.95	50	1	4
TYC0.25-1000-Z71M6	0.25	380	0.51	1000	78.1	0.95	50	1	4.5
TYC0.37-1000-Z80M6	0.37	380	0.73	1000	81.6	0.95	50	1	6
TYC0.55-1000-Z80M6	0.55	380	1.04	1000	84.5	0.95	50	1	10
TYC0.75-1000-Z90S12	0.75	380	1.39	1000	86	0.95	50	1	12
TYC1.1-1000-Z90L12	1.1	380	2.01	1000	87.5	0.95	50	1	14
TYC1.5-1000-Z100L12	1.5	380	2.71	1000	88.6	0.95	50	1	18
TYC2.2-1000-Z112M12	2.2	380	3.91	1000	89.9	0.95	50	1	23
TYC3-1000-Z132S12	3	380	5.28	1000	90.8	0.95	50	1	29
TYC4-1000-Z132M12	4	380	6.98	1000	91.6	0.95	50	1	35
TYC5.5-1000-Z132M12	5.5	380	9.52	1000	92.4	0.95	50	1	39
TYC7.5-1000-Z132L12	7.5	380	12.9	1000	93	0.95	50	1	94
TYC11-1000-Z160L12	11	380	18.8	1000	93.8	0.95	50	1	105
TYC15-1000-Z180L12	15	380	25.4	1000	94.4	0.95	50	1	135
TYC18.5-1000-Z200L1	18.5	380	31.2	1000	94.7	0.95	50	1	180
TYC22-1000-Z200L12	22	380	37	1000	95	0.95	50	1	190
TYC30-1000-Z225M12	30	380	50.3	1000	95.4	0.95	50	1	255
TYC37-1000-Z250M12	37	380	61.8	1000	95.9	0.95	50	1	320
TYC45-1000-Z280S12	45	380	75	1000	95.9	0.95	50	1	360
TYC55-1000-Z280M12	55	380	91.5	1000	96.1	0.95	50	1	420
TYC75-1000-Z315S12	75	380	124	1000	96.4	0.95	50	1	650
TYC90-1000-Z315M12	90	380	149	1000	96.4	0.95	50	1	740
TYC110-1000-Z315L12	110	380	182	1000	96.6	0.95	50	1	780
TYC132-1000-Z315L12	132	380	219	1000	96.6	0.95	50	1	840
TYC160-1000-Z355M1	160	380	265	1000	96.7	0.95	50	1	1250
TYC185-1000-Z355M1	185	380	306	1000	96.8	0.95	50	1	1280
TYC200-1000-Z355M1	200	380	330	1000	96.8	0.95	50	1	1350
TYC220-1000-Z355L12	220	380	363	1000	96.8	0.95	50	1	1450
TYC250-1000-Z355L12	250	380	413	1000	96.8	0.95	50	1	1500
TYC280-1000-Z400L12	280	380	463	1000	96.8	0.95	50	1	2550
TYC315-1000-Z400L12	315	380	520	1000	96.8	0.95	50	1	2600
TYC355-1000-Z400L12	355	380	587	1000	96.8	0.95	50	1	2650
TYC400-1000-Z400L12	400	380	661	1000	96.8	0.95	50	1	2700
TYC450-1000-Z400L12	450	380	744	1000	96.8	0.95	50	1	2850
TYC500-1000-Z400L12	500	380	825	1000	96.8	0.95	50	1	2900

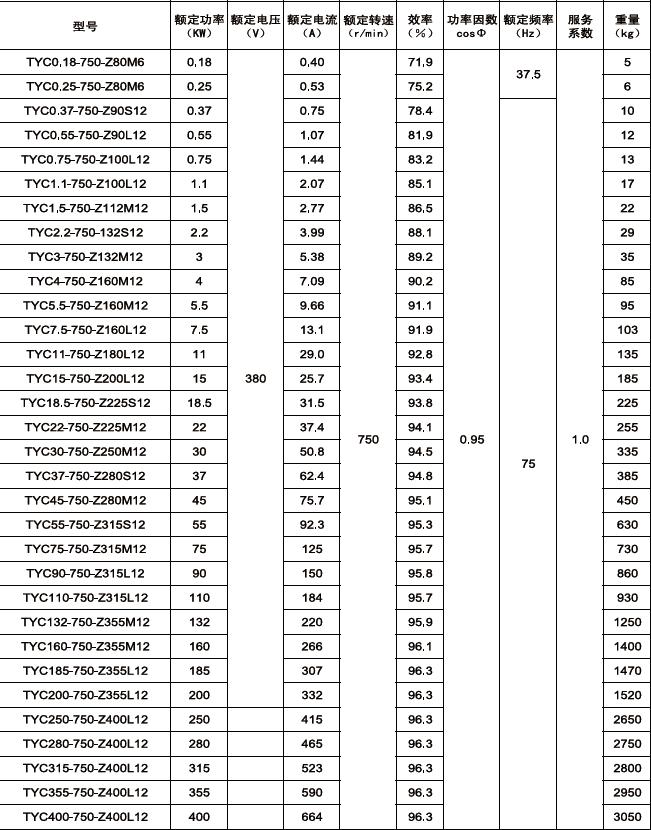

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cos φ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC0.18-750Z80M6	0.18	380	0.4	750	71.9	0.95	50	1	5
TYC0.25-750Z80M6	0.25	380	0.53	750	75.2	0.95	50	1	6
TYC0.37-750Z90S12	0.37	380	0.75	750	78.4	0.95	50	1	10
TYC0.55-750-Z90L12	0.55	380	1.07	750	81.9	0.95	50	1	12
TYC0.75-750-Z100L12	0.75	380	1.44	750	83.2	0.95	50	1	13
TYC1.1-750-Z100L12	1.1	380	2.07	750	85.1	0.95	50	1	17
TYC1.5-750-Z112M12	1.5	380	2.77	750	86.5	0.95	50	1	22
TYC2.2-750-132S12	2.2	380	3.99	750	88.1	0.95	50	1	29
TYC3-750-Z132M12	3	380	5.38	750	89.2	0.95	50	1	35
TYC4-750-Z160M12	4	380	7.09	750	90.2	0.95	50	1	85
TYC5.5-750-Z160M12	5.5	380	9.66	750	91.1	0.95	50	1	95
TYC7.5-750-Z160L12	7.5	380	13.1	750	91.9	0.95	50	1	103
TYC11-750-Z180L12	11	380	29	750	92.8	0.95	50	1	135
TYC15-750-Z200L12	15	380	25.7	750	93.4	0.95	50	1	185
TYC18.5-750-Z225S12	18.5	380	31.5	750	93.8	0.95	50	1	225
TYC22-750-Z225M12	22	380	37.4	750	94.1	0.95	50	1	255
TYC30-750-Z250M12	30	380	50.8	750	94.5	0.95	50	1	335
TYC37-750-Z280S12	37	380	62.4	750	94.8	0.95	50	1	385
TYC45-750-Z280M12	45	380	75.7	750	95.1	0.95	50	1	450
TYC55-750-Z315S12	55	380	92.3	750	95.3	0.95	50	1	630
TYC75-750-Z315M12	75	380	125	750	95.7	0.95	50	1	730
TYC90-750-Z315L12	90	380	150	750	95.8	0.95	50	1	860
TYC110-750-Z315L12	110	380	184	750	95.7	0.95	50	1	930
TYC132-750-Z355M12	132	380	220	750	95.9	0.95	50	1	1250
TYC160-750-Z355M12	160	380	266	750	96.1	0.95	50	1	1400
TYC185-750-Z355L12	185	380	307	750	96.3	0.95	50	1	1470
TYC200-750-Z355L12	200	380	332	750	96.3	0.95	50	1	1520
TYC250-750-Z400L12	250	380	415	750	96.3	0.95	50	1	2650
TYC280-750-Z400L12	280	380	465	750	96.3	0.95	50	1	2750
TYC315-750-Z400L12	315	380	523	750	96.3	0.95	50	1	2800
TYC355-750-Z400L12	355	380	590	750	96.3	0.95	50	1	2950
TYC400-750-Z400L12	400	380	664	750	96.3	0.95	50	1	3050

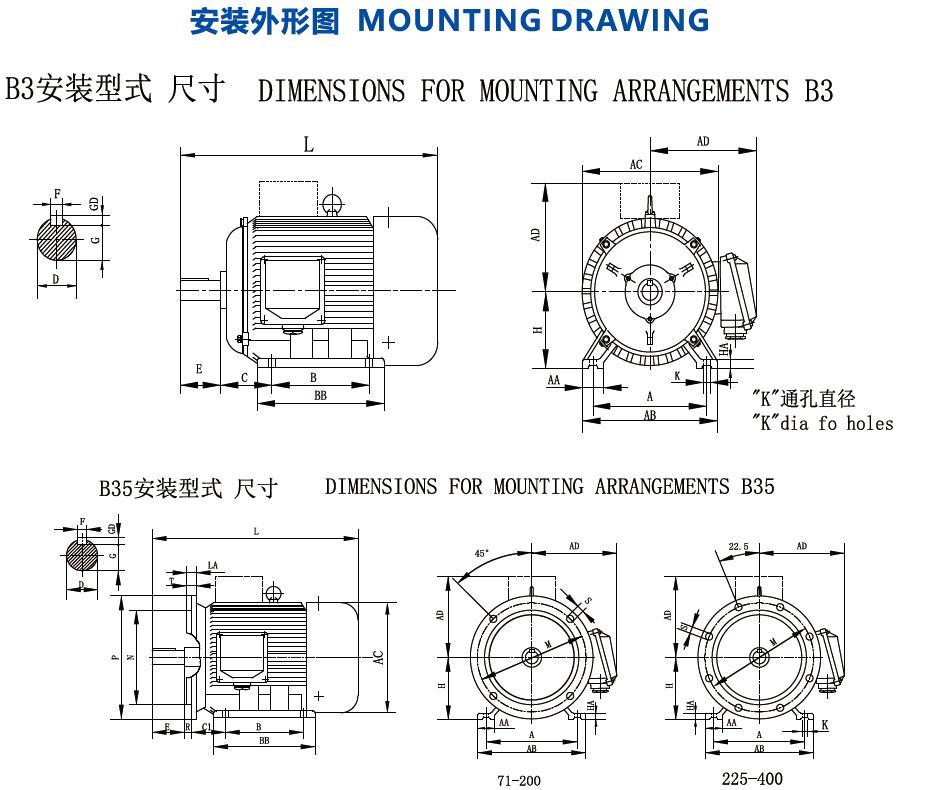

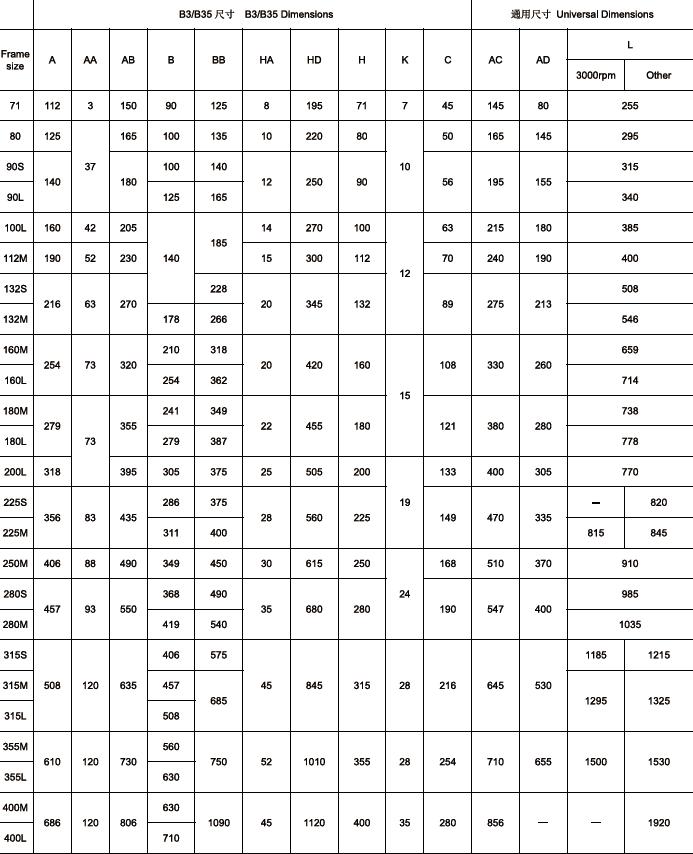

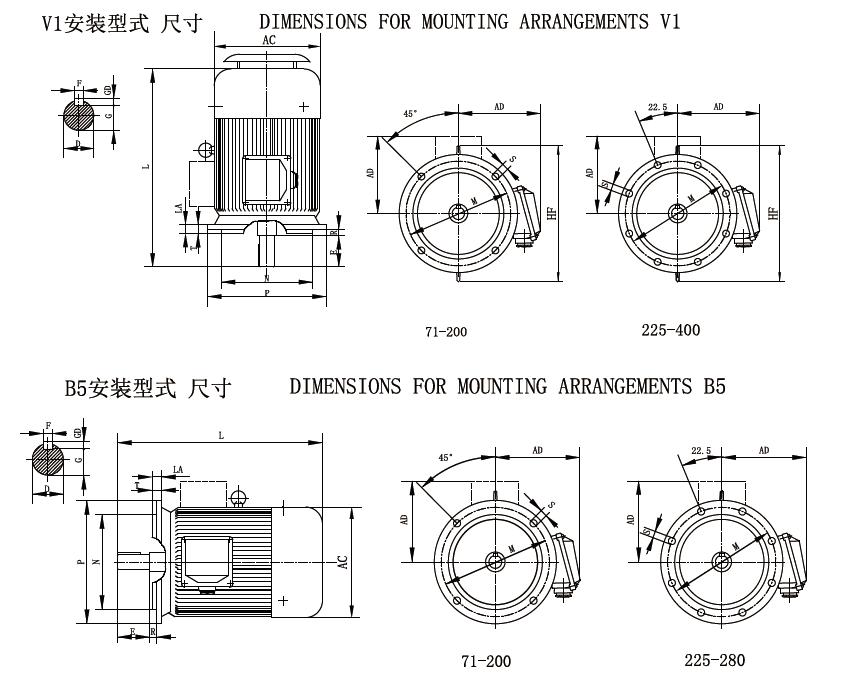

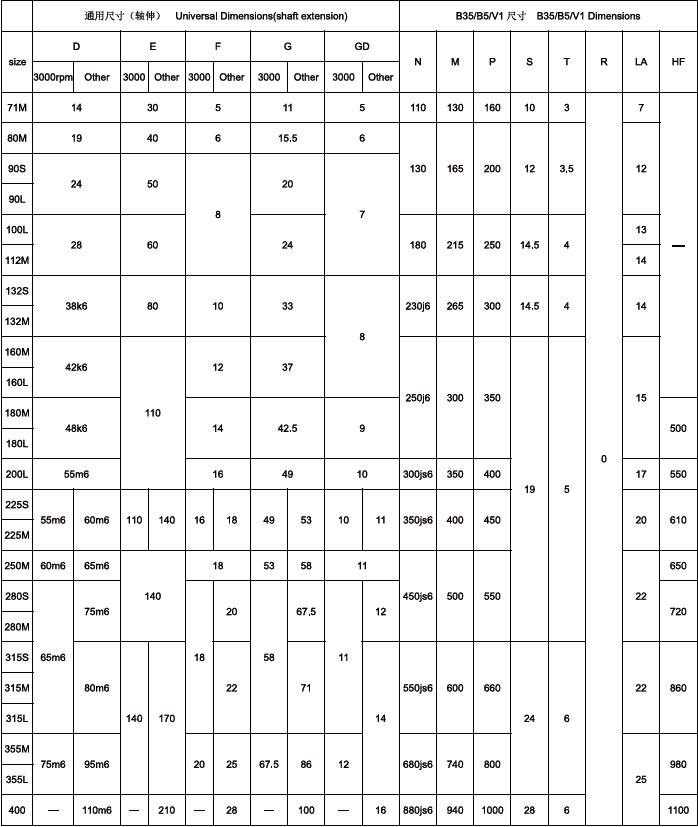

Machanical data
