Product Description

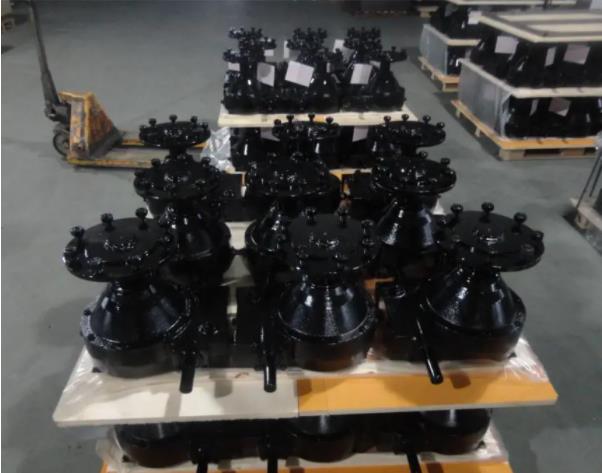

Universal special gearbox for sprinkler irrigation, including UMC type and DURST type, the installation dimensions are exactly the same, so you can replace it without any worries! • Watson sprinkler irrigation special gearbox can help your sprinkler irrigation system work better, longer and more efficiently, saving you time and cost. • From factory to farmland, from pre-factory testing to post-installation debugging, our products can always meet your unique needs! We are always there when you need us!

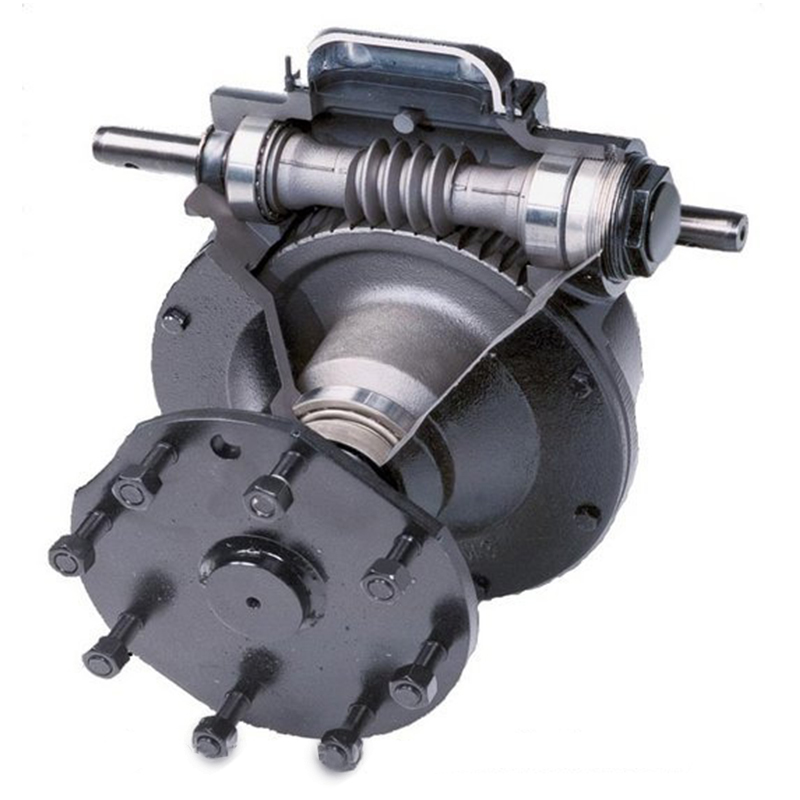

Housing: Load distribution is more even when designed under high stress Worm: High-strength, high-toughness iron, and the combination of steel and cast iron gears can greatly extend the wear life Turbine: High-strength cast iron gears can provide high load capacity and longest service life in industry Input and output bearings: Adopt American T-iken technical indicators to ensure industrial service life Tooth profile -14.5° pressure angle has a long service life and good reliability in harsh environments 50:1 transmission ratio: Concave gear design makes oil lubrication more effective Gear neck and keyway: Strengthen the load in key areas Extended output shaft: Provides additional clearance between the edge of the gearbox to reduce mud accumulation, which can reduce oil seal damage and extend the life of the gearbox High-viscosity gearbox oil: 85w-140 long-term wear gear oil under extreme load conditions

Model	Speed Ratio	Output Shaft Diameter	Weight (KG)	Torque

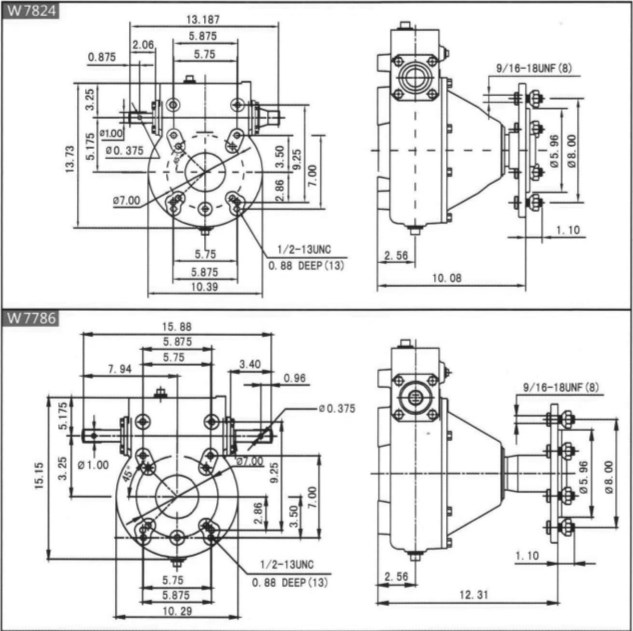

W7824	50:1	2.25"	50	7909Nm
W7786	52:1	2.25"	53	7909Nm

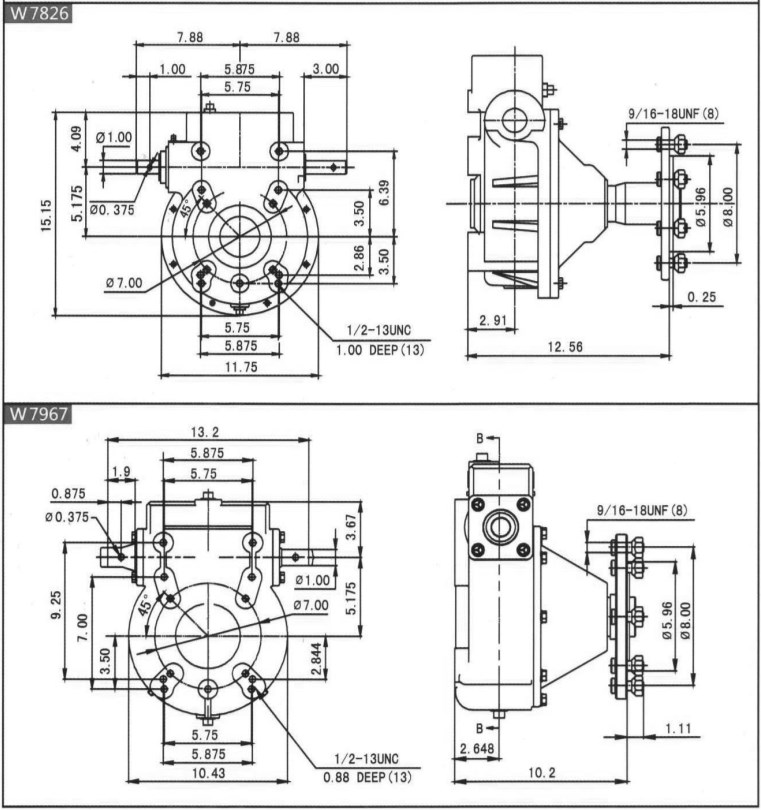

W7967	50:1	2.25"	55	7909Nm
W7826	52:1	2.25"	60	7909Nm
W740U	50:1	2.25"	51	7909Nm
W740UV	52:1	2.25"	54	7909Nm

Agricultural Gearboxes

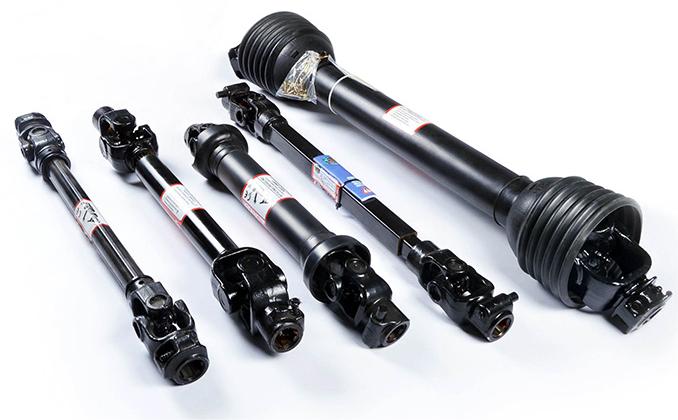

PTO shafts
