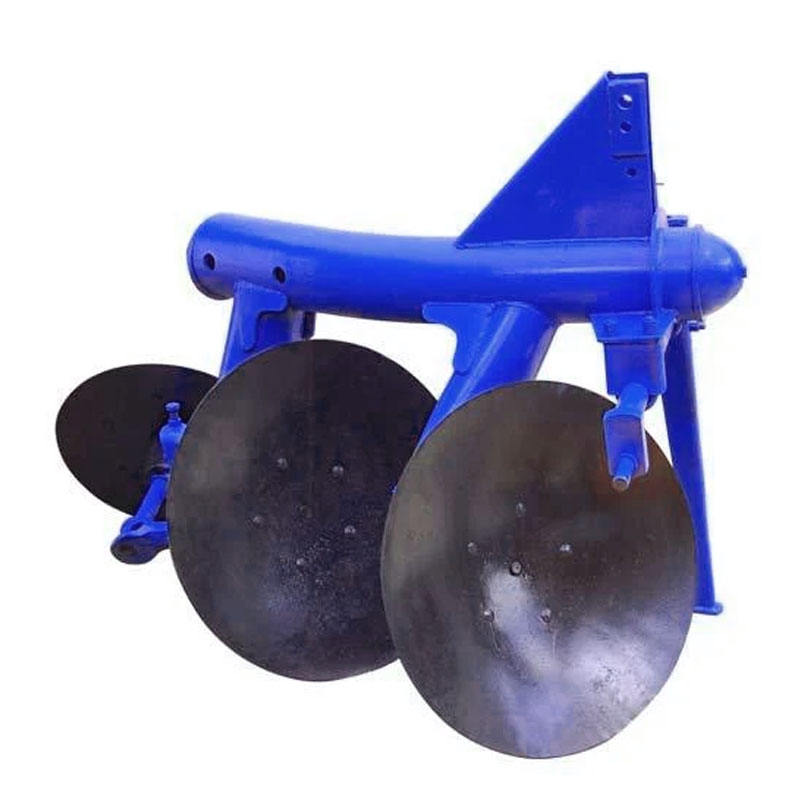

Agricultural Plowing Machinery 3 Furrow Disc Plough/best furrow plough
1LY series baldan fish disc plough description :
1LY agricultural disc plough baldan disc plough is specially designed, manufactured and borrowed according the features of foreign disc plough, it is Fully-suspended with four wheel tractor. And the discs are rotary motion when tuning the soil. This mounted disc plough is especially suitable for cultivation in the land with weeds, stems and frictional soil with bricks .
Advantages:
1.Disc plough with boron steel disc blade , disc blade with 48-52HRC hardness, wear-resisting tensile.
2. Disc plough hang plate is one whole plate , without welding , it is strong to use.
3. The plough hub is produced with thickned steel , the shaft is made of 80mm round shaft , not the iron casting , so it is strong to use in the hard field.
4. Adjustable angle of disc plough.
1LY series baldan fish disc plough specification :
Model | unit | 1LY-2 | 1LY-3 | 1LY-4 | 1LY-5 |
Working width | mm | 600 | 900 | 1200 | 1500 |
Working depth | mm | 250~300 | |||
No. of discs |
| 2 | 3 | 4 | 5 |
Total weight | kg | 350 | 400 | 470 | 560 |
Matched power | hp | 40 | 60 | 80 | 120 |
Linkage |
| Three-point suspension II type | |||
1LY series baldan disc plough package is iron case or iron frame . It depends on your need quantity . And one containter can load 60sets.
Company name : Hangzhou Ever-power Machinery Manufacture Co., Ltd.
Yes! you are right ! We are afactory, we have ourown workshop, now we have4 pcsprofessional farm machineproduction line. All the plow parts are made by ourselves, so the quality of the agricultural disc plough , please be assures. Of course ! thepricewill be thelowest!
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
