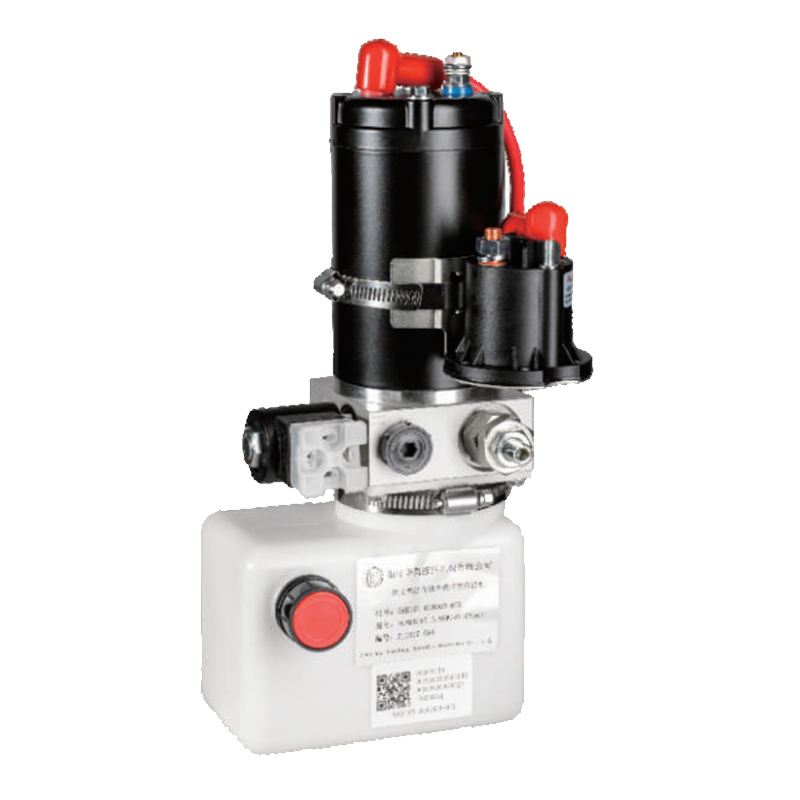

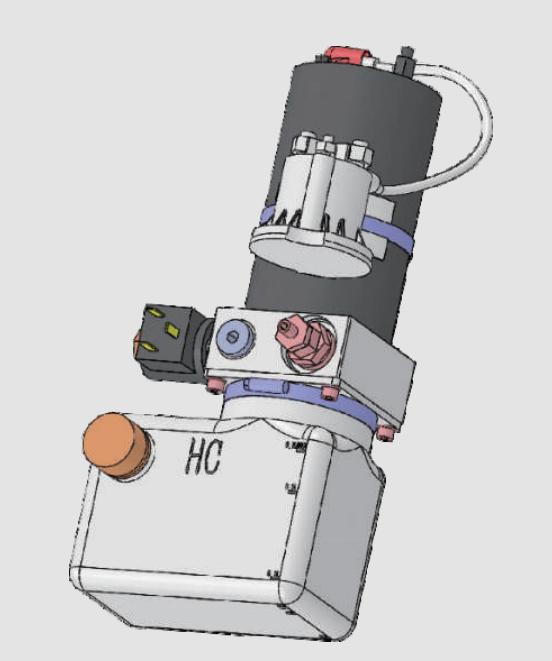

AMB155 Electric Pallet Trucks Series Hydraulic Power Unit

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:Amb155 Electric Pallet Trucks Series Hydraulic Power Unit - Buy Amb155 Electric Pallet Trucks Series Hydraulic Power Unit Product on CMN Industry Inc

Send Inquiry

Product Description

Features

---Mainly used for logistics equipment, automobile warranty equipment, mining machinery, agricultural machinery.machine tool fixture, automobile, loader, snow plow, lifting platform;

---Simple principle,reliable performance, easy maintenance;

---Compact structural, beautiful appearance, and small overall layout space;Through different combinations of hydraulic valves, there are more than 200 hydraulic circuits for customers tochoose: ---Adopt high efficiency, low noise, small volume of high pressure small displacement gear pump, pumpdisplacement selection range is large; ---Can use DCC motor, motor voltage selection range is large;

---With high performance, zero leakage cartridge valve, pressure maintaining good performance,

----Each valve pressure loss is small, low energy consumption, economic and environmental protection;Can be used with manual emergency operation reversing valve, high safety;

---The electromagnetic proportional reversing valve can be used to realize the proportional control of the runningspeed of the actuator: ---Return oil using throttle valve, steady drop, small hydraulic impact;

---The valve block is made of high strength aluminum alloy, light weight and not easy to rust,

---The use of universal standard jack, good technology;Electric control or manual operation;

Technical parameters	AMB155(Electric pallet trucks series)	48VElectric pallet trucks series	ABS200/300 series
Dc voltage (V)	24/48	48	24
Motor power (kW)	0.8	2.2	2.2
Rated speed (r/min)	3100	2700	2750
Pump displacement(m//r)	1	1.8	1.6
Noise (dB)	≤70
Overflow valve (MPa)	16	21	15/16
Electromagnetic valve	Electromagnetic directional valve
Throttle valve (L/min)	4	6	6
Port screw thread	G1/47 M14x1.5、M16x1.5、Can be customized

Hydrualic principle diagram
