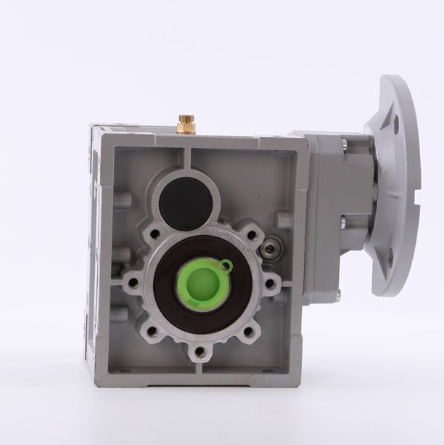

BKM Hyperboloid Gearbox Gearbox with Servo Motor Motor TKM High Precision Helical Gear Reducer

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Bkm Hyperboloid Gearbox Gearbox With Servo Motor Motor Tkm High Precision Helical Gear Reducer - Buy Bkm Hyperboloid Gearbox,Bkm Helical Gear Box,Gearbox With Servo Motor Product on CMN Industry Inc

Send Inquiry

Product Description

Product Characteristics

1. Drive by hypoid gear, has big ratios.

2. Large in output torque, high efficiency, energy saving and environmental protection.

3. Made of high quality aluminum alloy, light in weight and non-rusting

4. Smooth in running and low in noise, can work long in dreadful conditions.

5. Good-looking in appearance, durable in service life and small in volume.

6. Suitable for all round installation, wide application and easy of use.

7. The Mounting Dimension of BKM series are compatible with NMRV series worm gear unit (A part of NMRV050 dimensions are different
from BKM050)

8. Modular and multi-structure can meet the demands of various conditions.

TYPE	BKM50,BKM63,BKM75,BKM90,BKM110
Transmission Stage	B: 2 stages C: 3 stages
Ratio	B: 7.5,10,12.5,15,20,25,30,40,50,60 C: 50,60,75,100,125,150,200,250,300
Output torque	Up to 500N.m
Motor power	0.12~5.5KW
Housing material	Aluminum alloy
Output shaft material	40Cr
Hardness level	242-286HB
Helical gear Material	20CrMnTi
Hardness level	58-62HRC
Precision level	6 grade
Transmission efficiency	B:92%-94% C:90%-92%
