Product Description

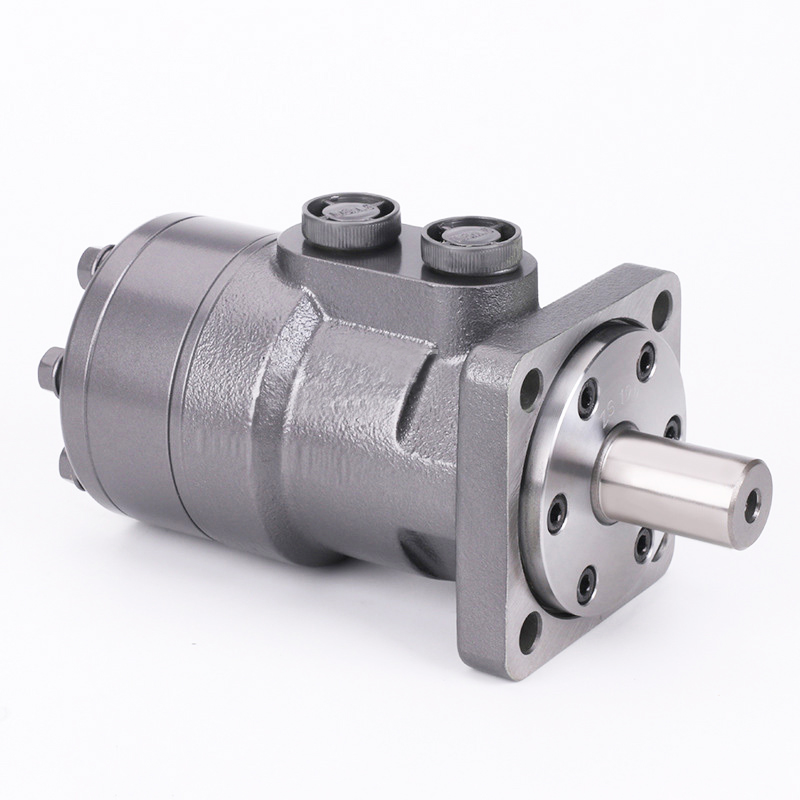

BM1 series orbital hydraulic motor is a kind of shaft distribution hydraulic motor. The series motor uses a column-mounted rotating stator pair, which has a structure that works under high pressure and can automatically compensate, so that the whole machine has high efficiency and good retention. Long working life. Its characteristics:

• The use of advanced stator parameters design, low starting pressure, high efficiency, and good retention, smooth operation.
• The use of high-pressure shaft seal, can carry high back pressure, allowing series, parallel use.
• Special design of linkage shaft structure, long service life of motor.
• Special flow distribution system parameter design to meet low noise requirements.
• The motor is compact and easy to install.

Type			BM1	BM1	BM1	BM1	BM1	BM1	BM1	BM1
				BM1H	BM1H	BM1H	BM1H	BM1H	BM1H	BM1H	BM1H
				BM1W	BM1W	BM1W	BM1W	BM1W	BM1W	BM1W	BM1W
				25	40	50	63	80	100	125	160
Actual displacement (cm³/rev.)			25	39.4	49	62.7	78.7	97.3	122.7	158
Maximum speed (rpm)	Rated	1320	964	845	700	660	553	412	320
		Continuous	1760	1368	1200	930	751	605	480	372
		Intermittent	1980	1508	1520	1190	948	760	605	470
Maximum torque (N.m)	Rated	33	60	77	98	130	162	206	205
		Continuous	33	60	95	121	147	184	240	302
		Intermittent	47	83	121	155	188	230	295	371
		Peak	67	105	140	179	221	266	366	436
Maximum output power (KW)	Continuous	4.5	8	10	10	10	11	10	10
Maximum output power (KW)		Intermittent	6.1	11.5	12	12	12	13	12	12
Maximum working pressure difference (MPa)	Rated	10	12.5	12.5	12.5	12.5	12.5	12.5	10
		Continuous	10	12.5	14	14	14	14	14	14
		Intermittent	14	16.5	17.5	17.5	17.5	17.5	17.5	17.5
		Peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5
Maximum flow (L/min)	Rated	35	40	45	45	55	55	55	55
		Continuous	45	55	60	60	60	60	60	60
		Intermittent	50	60	75	75	75	75	75	75

* The rated speed and torque refer to the output value under the rated flow and pressure.
* Continuous value refers to the maximum value that the displacement motor can work continuously.
* The intermittent value refers to the maximum value of the displacement motor working for 6 seconds in 1 minute.
* The peak value refers to the maximum value of the displacement motor working for 0.6 seconds in 1 minute.

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
