Product Description

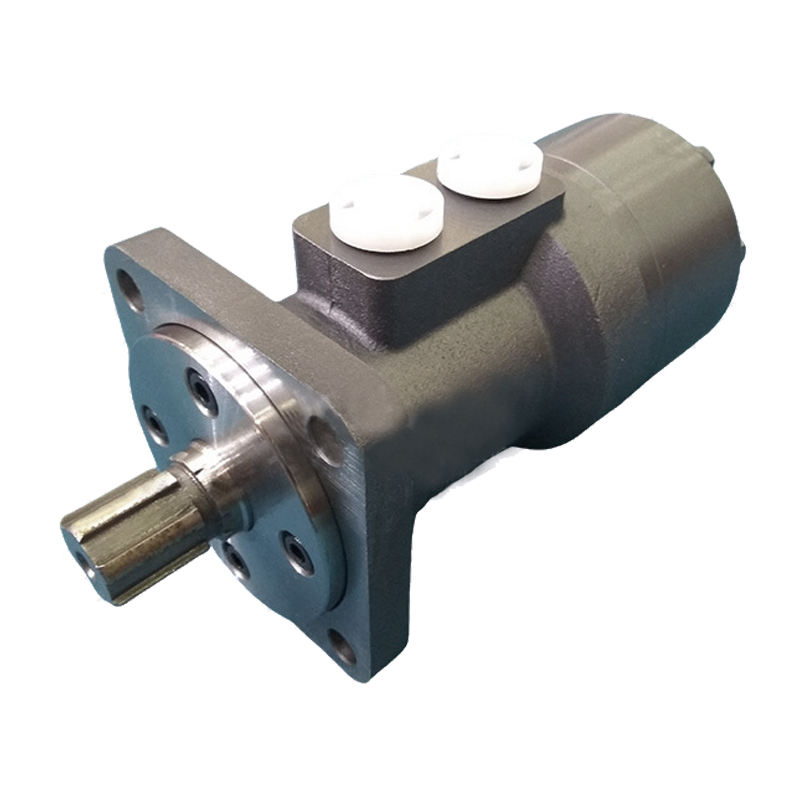

BM3 series orbital hydraulic motor is a kind of hydraulic motor with radial bearing support shaft distribution, its
characteristics:
• The flow distribution mechanism is integrated with the shaft extension, the flow distribution precision is high, and the motor mechanical efficiency is high.
• The use of bearing support structure design, so that the motor has a greater radial load capacity.
• Pillar rotary stator sub-design, high mechanical efficiency, high efficiency and good retention.
• Reliable rotary shaft seal design, high back pressure bearing capacity, can be used in series and parallel.
• Advanced structure design, high power density.

Type			BM3 100	BM3 125	BM3 160	BM3 200	BM3 250	BM3 315	BM3 400	BM3 500
Actual displacement (cm³/rev.)			97.3	122.7	158	194.6	244	306.3	393.3	489.4
Maximum speed (rpm)	Continuous	600	475	370	300	240	190	148	119
Maximum speed (rpm)		Intermittent	750	600	465	375	300	240	187	150
Maximum torque (N.m)	Continuous	190	240	310	380	425	530	540	670
Maximum torque (N.m)		Intermittent	235	295	380	470	483	600	680	850
Maximum output power (KW)	Continuous	9	9	9	9	8	8	6.5	6.5
Maximum output power (KW)		Intermittent	11	11	11	11	9.3	9.3	8.5	8.5
Maximum working pressure difference (MPa)	Continuous	14	14	14	14	12.5	12.5	10	10
Maximum working pressure difference (MPa)		Intermittent	17	17	17	17	14	14	12.5	12.5
Maximum flow (L/min)	Continuous	60	60	60	60	60	60	60	60
Maximum flow (L/min)		Intermittent	75	75	75	75	75	75	75	75

* The rated speed and torque refer to the output value under the rated flow and pressure.
* Continuous value refers to the maximum value that the displacement motor can work continuously.
* The intermittent value refers to the maximum value of the displacement motor working for 6 seconds in 1 minute.
* The peak value refers to the maximum value of the displacement motor working for 0.6 seconds in 1 minute.

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
