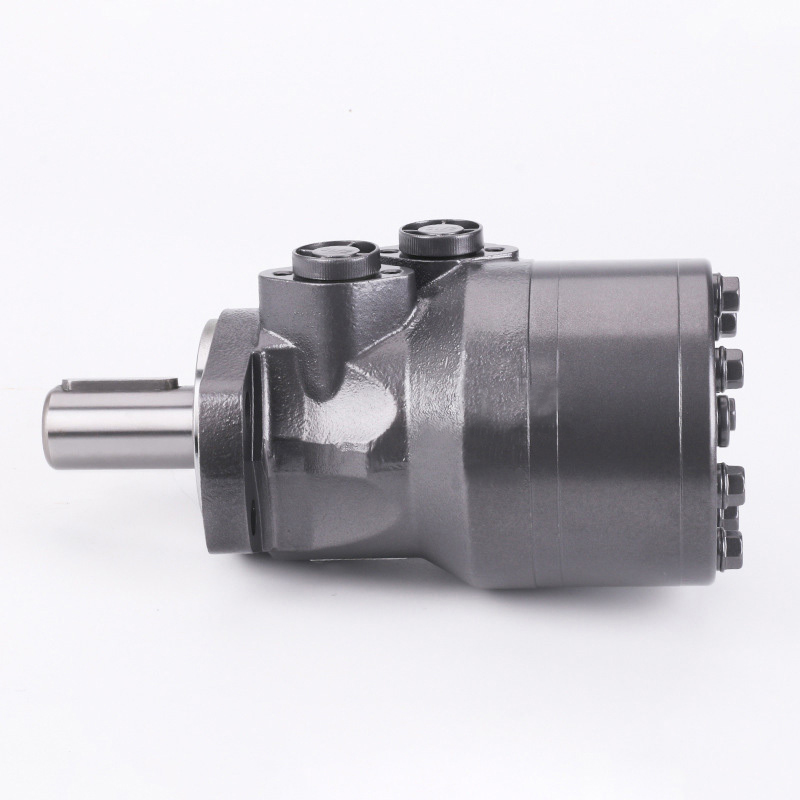

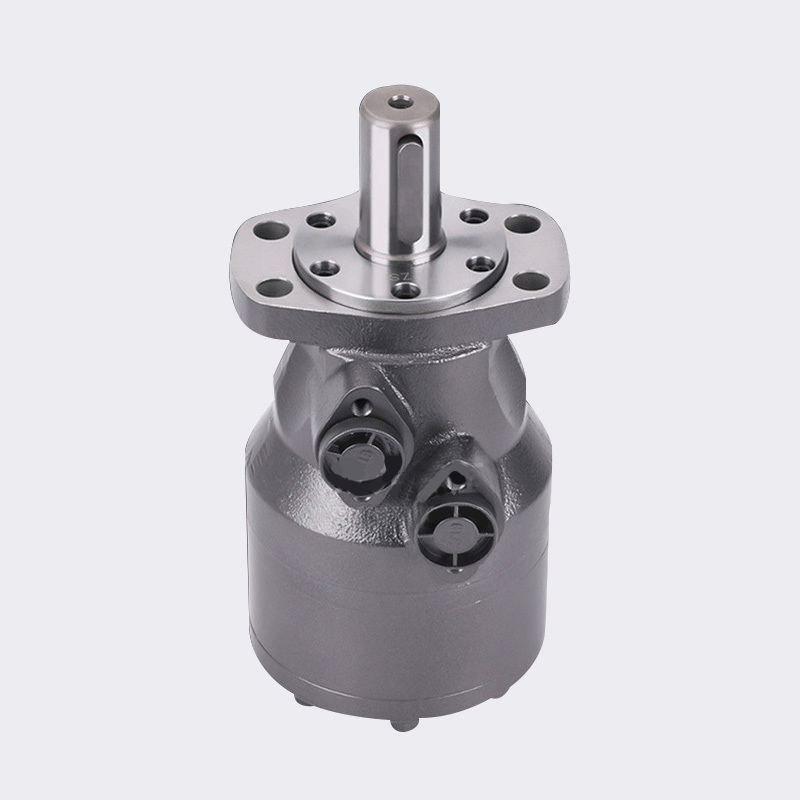

BMH Series Cycloidal Hydraulic Motor

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Bmh Series Cycloidal Hydraulic Motor - Buy Bmh Series Cycloidal Hydraulic Motor Product on CMN Industry Inc

Send Inquiry

Product Description

The BMH series cycloidal hydraulic motor is a type of axial flow hydraulic motor, which uses a column mounted rotating stator pair and has a structure that can work under high pressure and automatically compensate, thus making the entire machine highly efficient, with good retention and long working life. Its characteristics: Adopting advanced stator parameter design, it has low starting pressure, high efficiency, good retention, and smooth operation. Adopting high-pressure shaft sealing, it can bear high back pressure and allows for series and parallel use. The linkage shaft structure is specially designed to meet low noise requirements. Special flow distribution system parameter design can meet low noise requirements. The motor has a compact structure and is easy to install.

Types			BMH 195	BMH 245	BMH 310	BMH 390	BMH 490
Actual displacement (cm³/rev.)			195.7	246.2	311.7	391.4	491
Maximum speed(rpm)	Rated	295	235	185	145	115
		Continuity	375	295	235	185	146
		Intermittent	455	360	285	225	180
Maximum torque(N.m)	Rated	385	480	590	675	670
		Continuity	490	595	730	815	830
		Intermittent	555	702	815	950	1030
		Peak value	625	760	950	1050	1170
Maximum output power(KW)	Continuity	16	16	14	12.5	11
Maximum output power(KW)		Intermittent	18.5	18.5	15.5	15	14
Maximum working pressure difference(MPa)	Rated	14	14	14	12.5	10
		Continuity	17.5	17.5	17.5	15.5	12.5
		Intermittent	20	20	20	19	16
		Peak value	22.5	22.5	22.5	21	18
Maximum flow rate(L/min)	Rated	60	60	60	60	60
		Continuity	75	75	75	75	75
		Intermittent	90	90	90	90	90

Types			Maximum oil inlet pressure	Maximum back pressure (connected to external oil outlet)
BMM195-490(MPa)	Continuity	20	17.5
		Intermittent	22.5	20
		Peak value	25	22.5

*Rated speed and torque refer to the output value under rated flow and pressure. *Continuous value refers to the maximum value at which the displacement motor can operate continuously. *Intermittent value refers to the maximum value at which the displacement motor operates for 6 seconds within 1 minute. *The peak value refers to the maximum value at which the displacement motor operates for 0.6 seconds within 1 minute.

2.Emissions: 195 245 310 390 490 630 800 985

3.Flange and stop:2:Diameter 13.5 diamond flange with a stop diameter of 82.5X64:Diameter 13.5 diamond flange with a stop diameter of 82.5X66:6- Diameter 13.5 diamond flange, with a stop diameter of 82.5X6

H2:2- Diameter 13.5 diamond flange, horizontal oil port, stop mouth diameter 82.5X2.8

H4:4- Diameter 13.5 diamond flange, horizontal oil port, stop mouth diameter 82.5X2.8

H6: 6- Diameter 13.5 diamond flange, horizontal oil port, stop mouth diameter 82.5X2.8

4.Axial extension

M: Straight shaft with a diameter of 35, length of 58, flat key 10X8X45, M8 G: Straight shaft with diameter of 31.75, length of 46, flat key 7.96X7.96X31.75, 3/8-16UNC G2: Straight shaft with diameter of 31.75, length of 44.8, flat key 8X7X32, through key groove, 3/8-16UNC G3: Straight shaft with diameter of 31.75, length of 56, flat key 7.96X7.96X31.75, 5/8-18UNF S: Rectangular spline shaft 6-25.32X21.47X6.25, without groove, 40 long, 1/4-20UNC S2: Rectangular spline shaft 6-25.32X21.47X6.25, slotted, 40 long, 1/4-20UNC F: Involute spline shaft with diameter of 31.75, length of 46,14-DP12/24, 3/8-16UNC FD: Involute spline shaft with diameter of 31.75, length of 56,14-DP12/24, M8 XM: Straight shaft with diameter of 31.75, length of 44.8, flat key 7.96X7.96X31.75, 3/8-16UNC

5.Oil port and external leakage port

D: G1/2, Plate type 4-M8, G1/4 M: M22X1.5, Plate type 4-M8, M14X1.5 S:7/8-14UNF 'O'-ring, Plate type 4-5/16-18UNC, 7/16-20UNF S1:7/8-14UNF 'O'-ring, Plate type 4-M8,7/16-20UNF P:1/2-14NPTF, Plate type 4-5/16-18UNC, 7/16-20UNF H: Horizontal oil port 7/8-14UNF'O '- rin, without connecting thread, 7/16-20UNF H1: Horizontal oil port G1/2, without connecting thread, G1/4

6.Rotating working condition:standard / reverse7.Paint options:

00:No paint

No:Blue paint

B:Black paint S:Silver gray paint

8.Special requirement functions

Note: When using ordering information, users can select the code for the left colored part of the motor structure, displacement, installation flange, shaft extension, inlet and outlet, and write it to us in the above format. If the selected specifications are not listed in the above table or have special requirements, please contact us.

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms
