Product Description

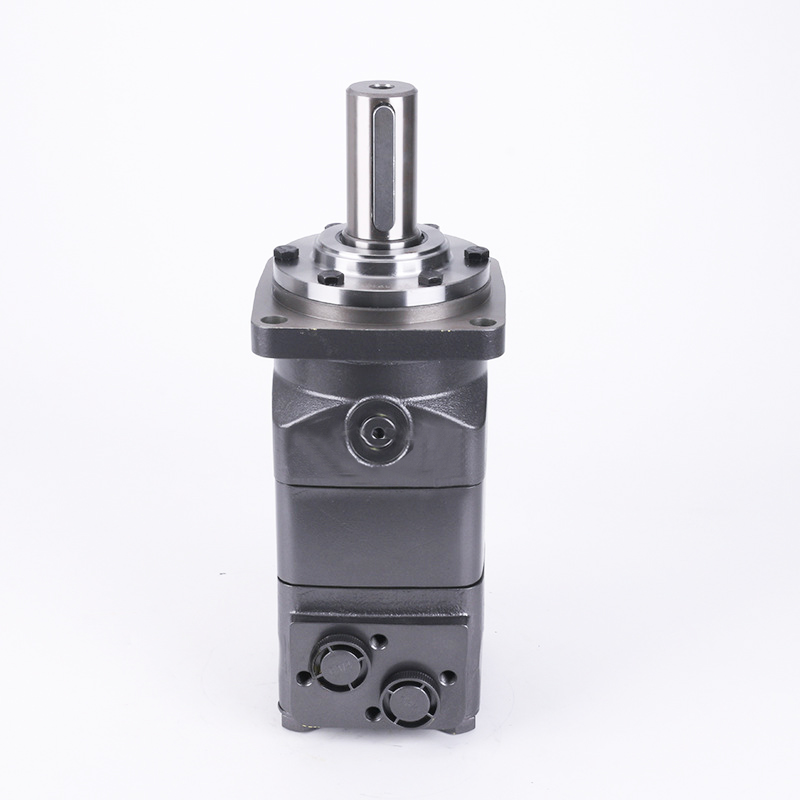

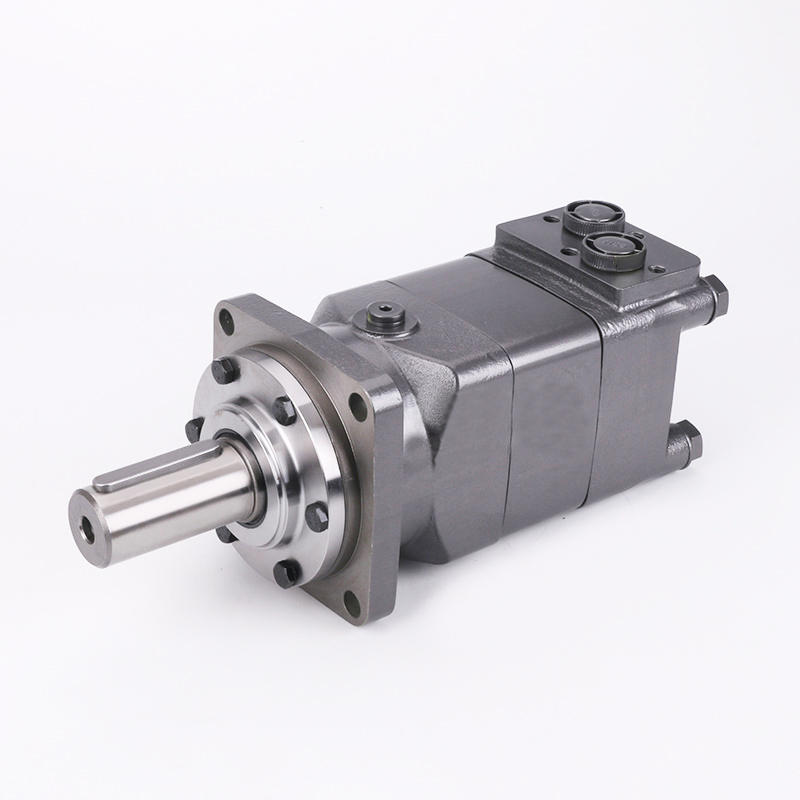

BMT series orbital hydraulic motor is an advanced hydraulic motor with end-face flow distribution structure. This series of motors use a column-mounted rotating stator pair, which has the characteristics of high working pressure, high working efficiency, good efficiency retention of the whole machine and long working life. On the basis of standard structure, multi-functional variant design can be carried out according to user requirements. Its characteristics:
• The use of advanced stator parameter design, low starting pressure, high efficiency and good retention.
• High working pressure and large output torque. Tapered roller bearing structure, bearing shaft, radial load capacity is strong, so that the motor can directly drive the working mechanism, the scope of use is expanded.
• Advanced end face flow distribution structure, so that the motor with high precision, wear after the automatic compensation function is strong, to ensure high volumetric efficiency, motor long life, to ensure that the motor speed is stable, smooth load speed characteristics.

Type			BMT	BMT	BMT	BMT	BMT	BMT	BMT	BMT
				BMTZ	BMTZ	BMTZ	BMTZ	BMTZ	BMTZ	BMTZ	BMTZ
				160	200	230	250	315	400	500	630
Actual displacement (cm³/rev.)			166.6	210	234.5	267.9	337	426.7	535.8	672.1
Maximum speed	Rated	455	455	410	358	285	220	180	140
(Rpm)	Continuous	590	580	520	460	365	290	230	182
	Intermittent	740	710	630	555	440	350	280	220
Maximum torque	Rated	390	490	535	619	780	930	1080	1170
(N.M)	Continuous	485	613	675	770	980	1120	1245	1400
	Intermittent	580	735	825	935	1170	1300	1400	1600
	Peak	690	870	965	1100	1385	1500	1680	1800
Maximum output power	Rated	18.7	23.4	23.2	23.2	23.3	21.4	20.4	18.2
(KW)	Continuous	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3
	Intermittent	32	40	40	40	40	35	35	27.5
Maximum working pressure difference	Rated	16	16	16	16	16	15	14	12
(MPa)	Continuous	20	20	20	20	20	18	16	12
	Intermittent	24	24	24	24	24	21	18	16
	Peak	28	28	28	28	28	24	21	19
Maximum flow	Rated	80	100	100	100	100	100	100	100
(L/min)	Continuous	100	125	125	125	125	125	125	125
	Intermittent	125	150	150	150	150	150	150	150
Maximum allowable oil inlet pressure	Rated	21	21	21	21	21	21	21	21
(MPa)	Continuous	21	21	21	21	21	21	21	21
	Intermittent	25	25	25	25	25	25	25	25
	Peak	30	30	30	30	30	30	30	30

*Rated speed and torque refer to the output value under rated flow and pressure. *Continuous value refers to the maximum value at which the displacement motor can operate continuously. *Intermittent value refers to the maximum value at which the displacement motor operates for 6 seconds within 1 minute. *The peak value refers to the maximum value at which the displacement motor operates for 0.6 seconds within 1 minute.

1	Structure Code	BMT
2	*Displacement*	160 200 230 250 315 400 500 630 800
3	*Flange, stop*	4: 4-φ14 square flange, φ160, stop φ125X9 K6: 4-φ14.5 square flange, φ162, stop φ127X9
4	*Shaft extension*	M: Straight axis φ40, length 82, flat key 12X8X70,M12 FD: Involute spline shaft φ38.1, length 82,17-DP12/24,M12 FE: Involute spline shaft φ38.1, length 57,17-DP12/24,3/8-16UNC FG: Involute spline shaft φ38.1, length 114,17-DP12/24, shaft head φ25X26.7 SL: Rectangular spline shaft 6-34.85X28.14X8.64, long 102,M8 G: Straight axis φ38.1, length 82, flat key 9.525X9.525X57.15,3/8-16UNC G1: Straight axis φ31.75, length 57, flat key 7.96X7.96X40,3/8-16UNC J: Rectangular spline shaft 6-30X24.8X6, long 46.2,M8 T: Φ45 cone shaft, taper 1:10, cone length 54, flat key 12828, shaft head length 82, shaft end thread M30X2
5	*Oil outlet and outlet*	D: G3/4,G1/4, plate type 4-M10 M: M27X2,M14X1.5, PLATE 4-M10 S: 1-1/16-12UN 'O'-ring,9/16-18UNF 'O'-ring S1: 1-1/16-12UN 'O'-ring,7/16-20UNF 'O'-ring G: G3/4,G1/4 M: 3M27X2,M14X1.5
6	*Rotating condition*	None: Standard R: Reverse
7	Paint Options	00: No paint None: Blue paint B: Black paint S: Silver gray paint
8	Special Function	None General

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

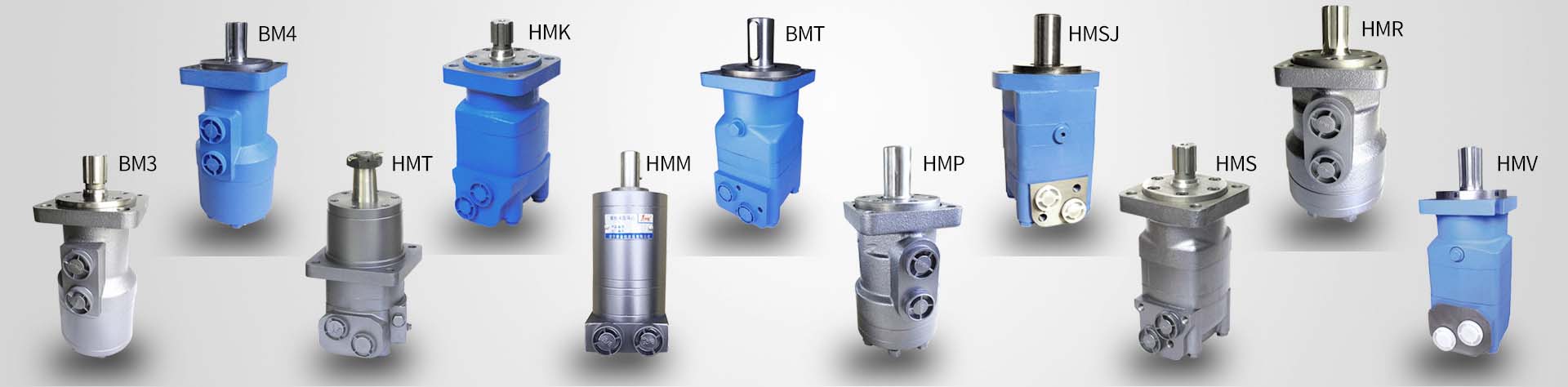

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
