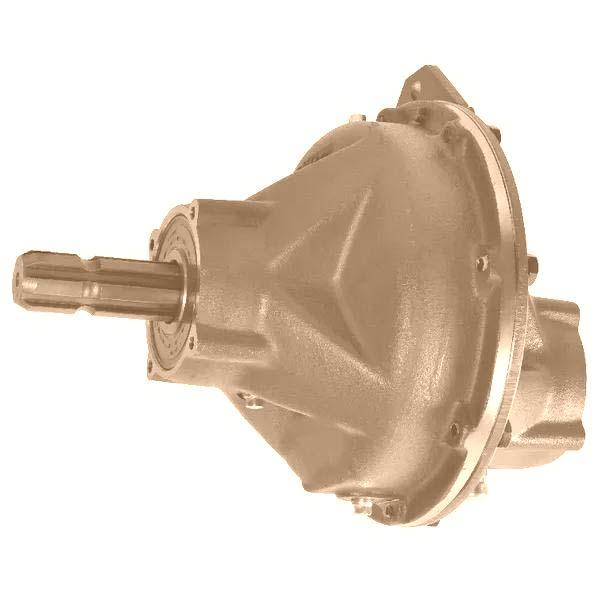

Description | Parallel Gearboxes A-20A 1.88:1 |
Application | Various (agricultural) applications |
Consists of | * Gearbox * Without oil |
Technical information | * If you have any questions regarding performance at different speeds, please do not hesitate to contact us * When using for the first time, replace the oil after 50 operating hours |
Max. input power | 55.2 kW |
Max. output torque | 96 daNm |
Contains oil | No |
Max. oil capacity | 1.4 l |
Max. oil change interval | 500 h |
Oil SAE viscosity grade | 80W-90 |
Housing material | Cast iron GGG25 |
Weight | 26 kg |
Gear arrangement Increasing | 217 – 218 |
Gear arrangement Reducing | 215 – 216 |
Gear ratio | 1.88:1 |
Input power kW / HP Increasing | 55.2 / 75 kW/HP |
Input shaft Increasing | Y |
Input shaft Reducing | X |
Input power KW / HP Reducing | 55.2 / 75 kW/HP |
Output Torque DaNm Increasing | 50.3 daNm |
Ratio Increasing | 1 : 1,88 |
Ratio Reducing | 1,88 : 1 |
Input section | X |
Shaft X | 1 3/4″ (6) (E) |
Shaft Y | 1 3/4″ (6) (A) |
Grinding Workshop
CNC Teeth Machine
CNC Lathe Workshop
Figuring Center
CNC Workshop
Heat Treatment Machine
3D Measurement Machinery
Gear Teeth Profile Test Machines
Heat Treatment Workshop
Tooth Profile Workshop
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products , the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
