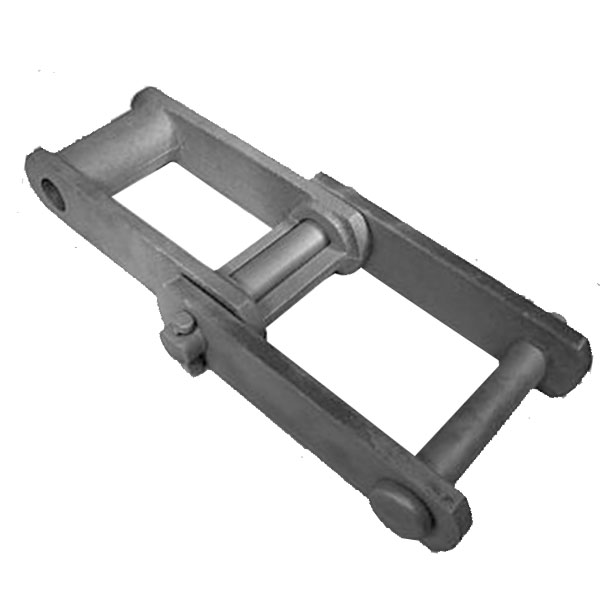

C55 C60 C77 C102b C110 C111 C131 C132 Mbp132 Pw132 C133 C188 Brh188 Combination Chain

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:312.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:312.5px}#detail_decorate_root .magic-3{border-bo......Keywords:C55 C60 C77 C102b C110 C111 C131 C132 Mbp132 Pw132 C133 C188 Brh188 Combination Chain - Buy Combination Chain industrial Chain c55 C60 C77 C102b C110 C111 C131 C132 Mbp132 Pw132 C133 C188 Brh188 Combination Chain Product on CMN Industry Inc

Send Inquiry

Product Description

Ever-power Combination Chain is used extensively in the cement, paper and pulp, quarrying, and mining industries for elevating and conveying a wide variety of abrasive and non- abrasive materials. It is also finding many uses in general in- dustrial assembly conveyors. It is not recommended for drive chain. The construction of Combination Chain can be either cottered or riveted. Cottered is normally consid- ered standard. Pins have flat areas at their ends, which lock into the appropriately punched sidebars, preventing pin ro- tation during chain operation. All pin holes are clean-cored for smooth bearing surfaces and are dimensioned for proper pin clearance. Industry dimensional standards are rigidly maintained and this chain may be interchanged with links of other manufacturers. Pitch sizes range from 1.631 to 6.050 inches; tensile strength range extends from 12,150 to 67,500 pounds. All Combination block links except C55 and C55L have elliptical barrels. This adds extra metal where the sprocket to chain contact causes most chain wear. MBP 132C has chambered barrels containing grease which lubricates pins, helps to avoid joint freezing, and pro- hibits entry of corrosive and abrasive material into the bar- rel core. Attachments are available in many of the pitch sizes for a wide range of applications. Combination links are symmetrical and may therefore be operated in either direction of travel. Brutaloy and cast steel sprockets are available for each pitch size. COUPLER LINKS FOR COMBINATION CHAIN Coupler links are required for joining chain where no take-up is available. Each chain pitch size has a Promal cast off-set sidebar coupler link available for this purpose.

COMBINATION CHAIN MATERIALS

A-L CHAIN NO.	MATERIALS
A-L CHAIN NO.		BLOCK LINKS (Inside Links)	SIDEBARS (Outside Links)	PINS
C55		Carbon Steel, Heat Treated
C 55L				Carbon Steel, Heat Treated
C 60				Carbon Steel, Heat Treated
C 77				Carbon Steel, Heat Treated
C 102B				Carbon Steel, Heat Treated
C 1021/2	ALL NUMBERS	Carbon Steel, Heat Treated	ALL NUMBERS
C 110 C 111 C 111C		ALL NUMBERS		Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated	ALL NUMBERS
C 131				Carbon Steel, Heat Treated
C 132 MBP 132 MBP 132C PW 132 C 133	A-L PROMAL	Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated Carbon Steel, Heat Treated	Carbon Steel, Heat Treated
C 188		Carbon Steel, Heat Treated
BRH 188				Carbon Steel, Heat Treated

WEIGHTS OF COMBINATION CHAIN PARTS

A-L CHAIN NO.	AVERAGE WEIGHT IN LBS.
	COUPLERS	PLAIN BLOCK LINKS	STEEL PINS WITH COTTERS	STEEL RIVETS
C 55	0.3	0.3	0.1	0.1
C 77	0.4	0.4	0.1	0.1
C 102B	1.9	1.8	0.4	0.4
C 110	2.6	3.1	0.4	0.4
C 111	3.3	3.5	0.7	0.7
C 132	6.1	6.0	1.5	1.5
MBP 132	6.1	8.2	1.5	1.5
MBP 132C	6.1	8.2	1.5	1.5
PW 132	6.1	9.8	1.5	1.5
C 188	0.7	0.7	0.2	0.2
BRH 188	0.7	1.2	0.2	0.2
