CAT2/3 3-Point Tractor Quick Hitch for Category 2/3 QHT023 (CAT 2 Tractor to CAT 3 Implement)

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Cat2/3 3-point Tractor Quick Hitch For Category 2/3 Qht023 (cat 2 Tractor To Cat 3 Implement) - Buy Quick Hitch 3-point Tractor Quick Hitch cat2/3 3-point Tractor Quick Hitch Product on CMN Industry Inc

Send Inquiry

Product Description

CAT2/3 Quick Hitch

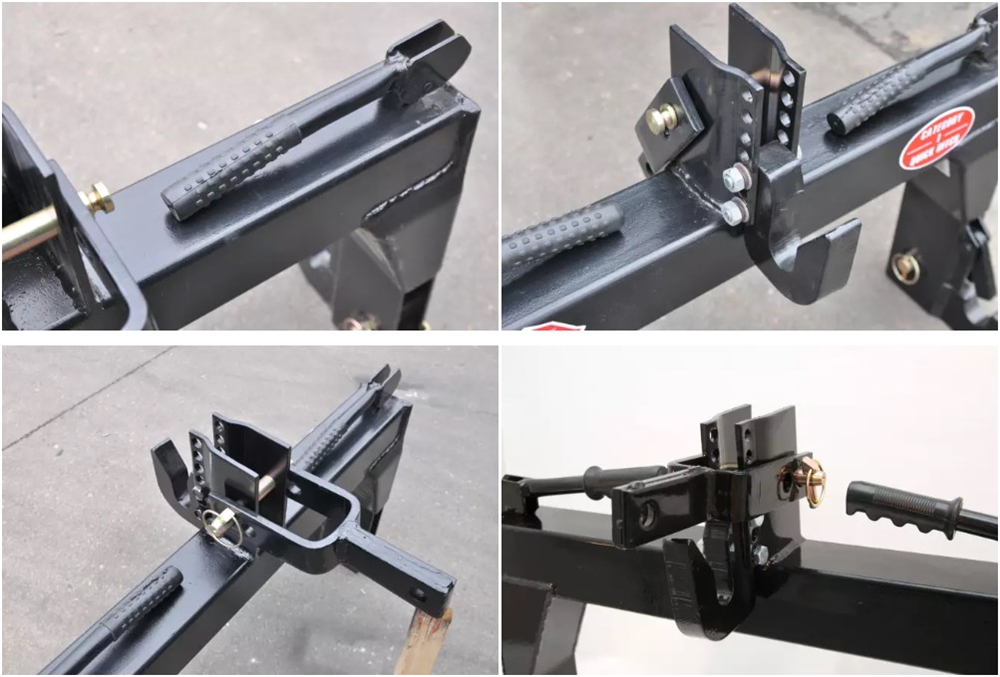

-Adapt your Category 2 and 3 vehicles to 3-point quick coupling -Constructed of 4 "x 4" tubular steel -Reinforced with 9 # steel gusset plate -Lightweight design can save 3 pounds of lifting capacity -Spring loaded lever to lock the lower lift pin in place -No welding or modification is required. The connection is simple and fast. -Includes the lower lift pin. The top link pin is sold separately. CAT2/3 three-point tractor quick hitch type 2/3 QHT023 (CAT 2 tractor to CAT 3 implement) With the Category 2 3-point quick hitch, you can easily switch the implements connected to the tractor 3-point hitch. The quick coupling device is made of 4 "x 4" structural steel pipe, reinforced by 9 # steel gusset plate, and has a rated lifting capacity of 4000 lb. Connect the three-point quick hitch to the three-point lift arm and easily connect or remove the implement in a few minutes. After connecting to the tractor, use the top link hook to connect to the three-point attachment and use the locking lever to fix the lifting pin of the attachment. Note: This device is designed to receive Class 2 implements, and will use conversion bushings on the lower lift pin and the top link pin to receive Class 1 implements.

Quick Hitch Specifications

CAT2/3 Quick Hitch

Overall Height	22.75-in.
Overall Width	37.25-in.
Overall Depth	8.25-in.
Lower Lift Pin Hooks	32.75-in. Center to Center
Lower Lift Pin Hook Width	1.75-in.
Tractor Top Link to Bottom Spacing	14.75-in.
Top Link Bar Hook Width	1.25-in.
Finish	Powder-Coat
Gusset Steel Thickness	9 Gauge
Lifting Capacity	4,000 lb.
Product Weight	97 lb.

Other Categories

Category	W(IN)	H(IN)	L(IN)	Weight(LB)
CAT 1	27.25	18.5	15-18..5	80
CAT 2	32.75	21.5	15	139
CAT 2 HD	32.5	21.5	15	165
CAT 3	38.25	24.5	19	182
CAT 3 NARROW	32.6	24.5	19	176

Detail display

How to select a quick hitch suitable for tractors To select a quick hitch model for the tractor, you need to consider the following factors: Tractor classification: Quick Hitch classifies tractors according to their size and capacity (in fact, it is based on the international classification of electronic manipulation physics), such as CAT 1 to CAT 4. It is very important to understand the classification of tractors, because different classifications correspond to different types of quick hitch. Use of implementation methods: Different types of implementation methods, such as ploughs, shovels or mowers, require different types of quick coupling modes. It is important to know which implementation needs to be connected, because different implementations need different connection methods and models. Fast continuity: The speed of fast coupling is also an important factor to be considered. Some quick connections will enable you to connect and release faster and more easily, which can save valuable time and energy for your farm operation. In short, to select a quick hitch model suitable for your tractor, you need to understand the classification of the tractor and the realization of the required connection, as well as your budget and other requirements. Before purchasing, please read the product manual and trailer operation guide to ensure that the model you purchased meets your requirements and use specifications.

Using a quick hitch to connect implements

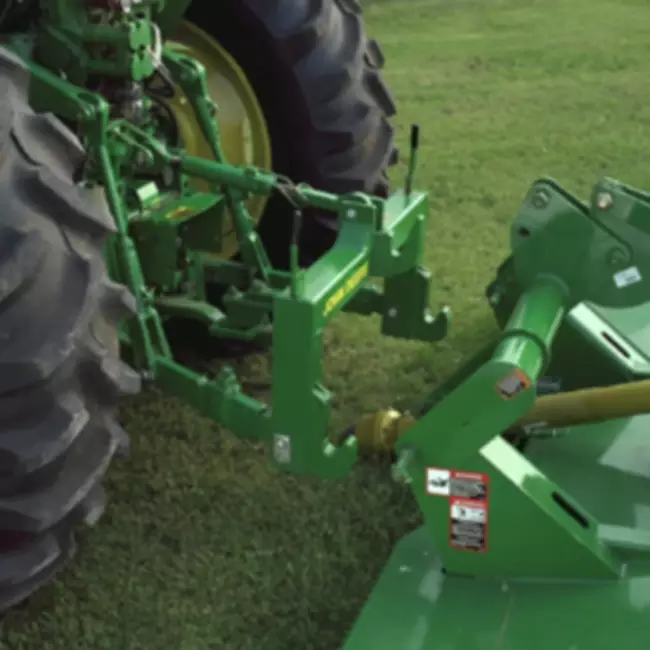

CAT2/3 three-point tractor quick hitch type 2/3 QHT023 (CAT 2 tractor to CAT 3 implement) To connect the implement to the quick hitch, return it and align the middle hook on the hitch with the top pin on the implement. As long as the top hook is in a straight line, the bottom pin should fall in place. Lift the implement, slide the pin into the hook and lock it in place using the locking lever on the top of the hitch. When preparing to remove the implement from the quick hitch, unlock the lever at the top of the hitch and lower the lift arm until the implement pin slides out of the hook.

CAT 2 VS CAT 3 Quick Hitch CAT (Category) 2 and CAT 3 quick hitches are common hitching systems used to connect tractors and other agricultural implements. Here are some key differences between the two types of hitch: Size: Class 3 is larger than Class 2. The diameter of the Cat 2 hitch is usually about 32 mm, while the Cat 3 hitch is about 44 mm. Load bearing capacity: Type 3 hitches are stronger than Type 2 hitches, and can withstand heavier loads, usually up to 10000 pounds, while Type 2 hitches are 6000 pounds. Compatibility: Cat 2 and Cat 3 hitches are not interchangeable. Implements designed for the Cat 2 hitch cannot be installed on Cat 3 and vice versa. Price: The difference in size and strength means that the Cat 3 hitch is usually more expensive than the Cat 2 hitch. In general, the choice between Cat 2 and Cat 3 quick hitches depends on the type of farm equipment used and the size of the tractor used. Although Cat 3 hitches provide greater strength and capacity, not all applications require them.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
