Product Description

Item	Description

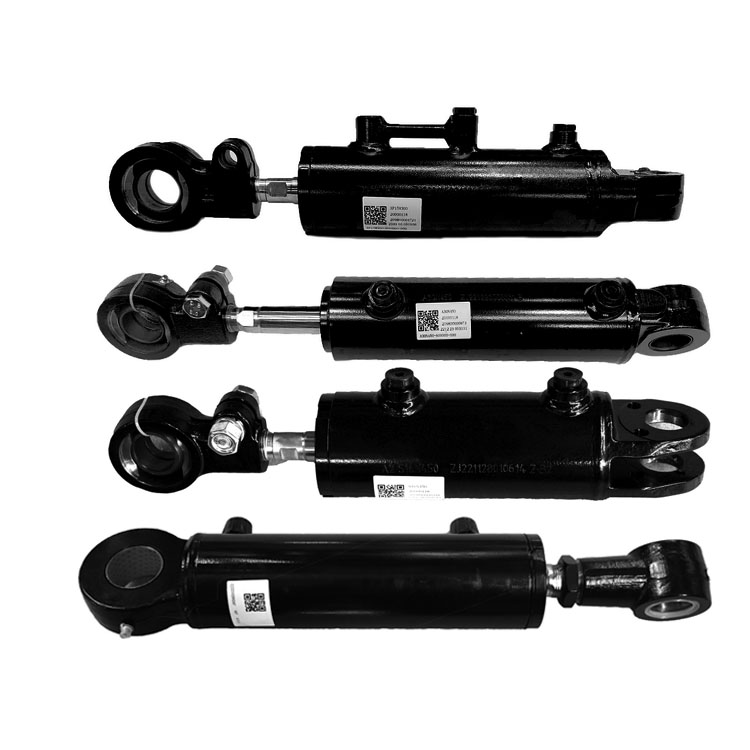

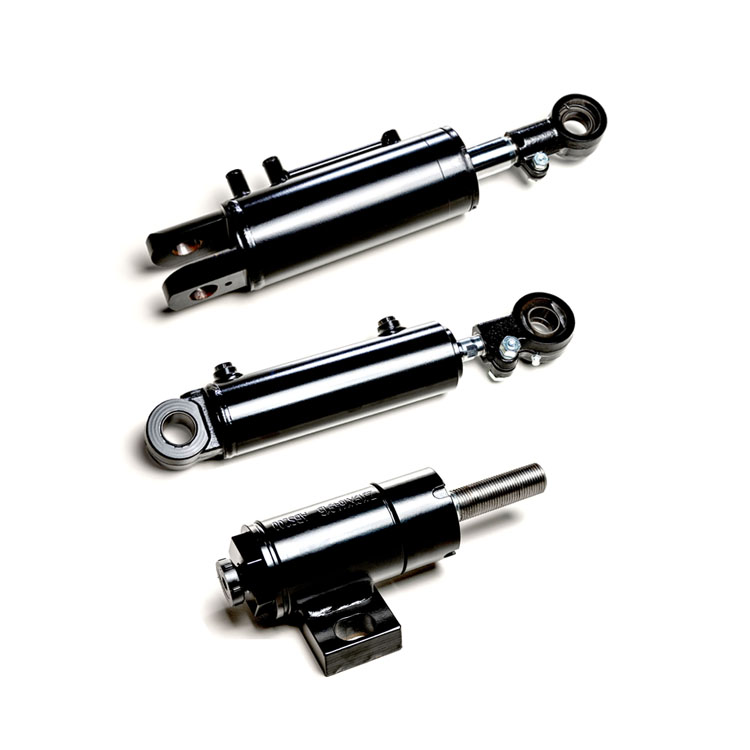

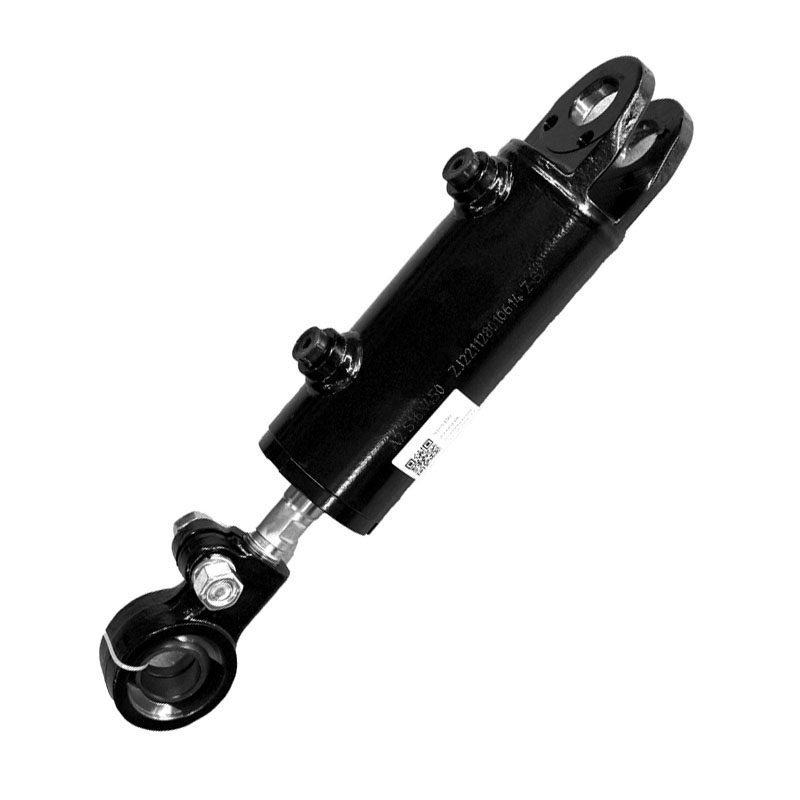

Product Name	Custom made hydraulic Cylinder for agricultural machinery, harvester
Certificate:	ISO9001, ISO4001, ISO 45003
Production Capacity:	1200,000 pcs per year
Sample Time	Based actual type
Brand	Huachang or customer's logo
Service	OEM & ODM
Seal brand	Parker,NOK, BUSAK SHAMBAN
Delivery Time	Based on order quantity.
Business Type	Manufacturer & Exporter

Hydraulic Cylinders For All IndustriesWe can build, supply new, and repair cylinders forForklift,Earth Moving, Marine, Press, Crane, Telescopic, Shear, Excavator and Chip Dump applications. We also have the capabilities, experience, and technical knowledge to manufacture new cylinders and custom build cylinders. We can handle any hydraulic cylinder needs from smaller application cylinders to very large cylinders (for example cylinders on large mining equipment).Contact us for pricing and availability or if you're needing a customhydrauliccylinder.

Hydraulic cyliinder Features

---3000PSI Rated pressure, 6000PSI testing pressure. ---Imported world famous brands and Chinese top brands sealing system. ---High quality Cold Drawn steel tube, with good rigidity. ---CNC Rolled tube inner surface, with roughness of 0.2~0.4um. ---Superior strength chrome-plated rod, anticorrosion for a long life. ---High grade Ductile Iron bar directly machined Gland and Piston, with high strength. ---Heavy-Duty welded construction, automatic welding for good quality. ---Twin-lip piston seals for maximum efficiency. ---100% factory tested under at least 1.5 times of the rated pressure.

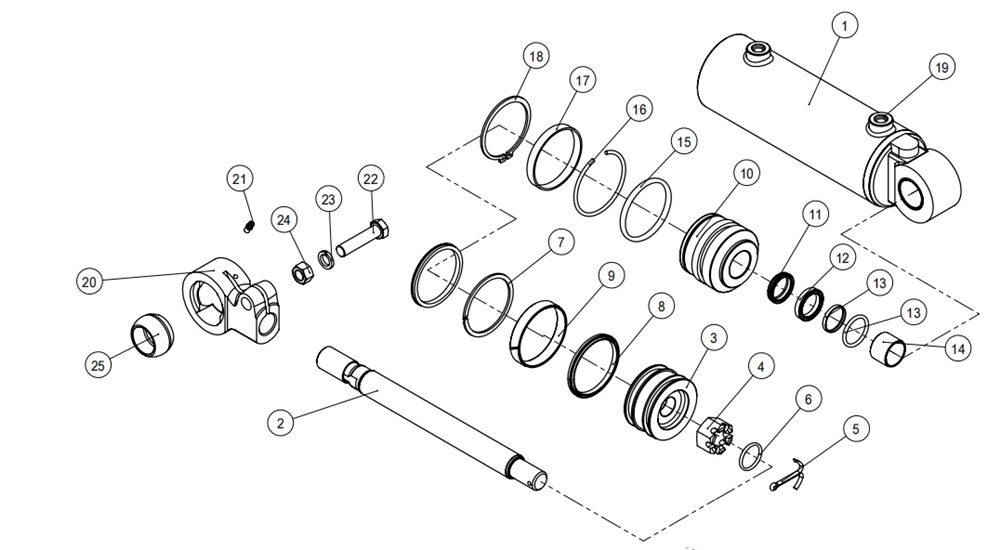

1	Cylinder Housing assy	10	Guide Bush	18	Circlips For Shaft
2	Piston Rod	11	Dust Wiper	19	Plug
3	Piston	12	U-Ring	20	Clevis
4	Hex Nut	13	Rod Seal	21	Grease Nipple
5	Cotter Pins	14	Du Bush	22	Bolt
6	O-Ring	15	O-Ring	23	Spring Washers
7	Back-Ring	16	Round Wire	24	Nut
8	Hole Seal	17	Key Ring	25	Spherical Bearing
9	Wear-Ring

Available brand & models

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E, SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400 ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500 DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR

Q1:What's youradvantage?

A: We have been working on hydraulic cylinder over 40 years, weuse ERP,MES and PLM systems to realize all-round digital control.
Q2:Can you do OEM or ODM?
A: Yes,We can do both
Q3::Can you do painting & powder coating?
A:Yes, we can do both

Q4:: Do you apply 5s management at your workshop?

A: We apply 7s management at our workshop
