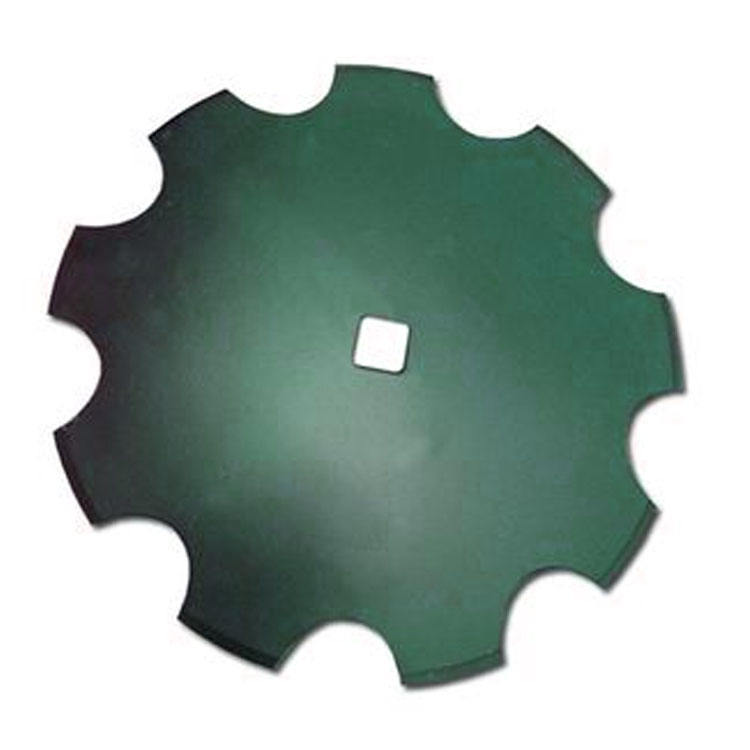

China Hongri heavy duty disc harrow parts blade disc for sale
Hangzhou Ever-power disc blade information :
1 Material : 65Mn Spring steel or boron steel
2 Diameter : 10-32 inch
3 Thickness : 3-12mm
4 Hardness: 38-48 HRC
5 Edge Type : Plain , notched or according to your demand
6 Height of bow : according to your demand
7 Process : Forged with heat treatment
26'' x 6mm disc blade specification is as following :
| Diameter | 26''(660mm) |
| Thickness | 6mm |
| Weight | 17kg |
| Type | notched ,plain ,flat or according to your demand |
| Hole | according to your demand |
| Color | according to your demand |
| Material | 65Mn Spring steel or boron steel |
Our company is a professional factory of disc blade , so we also can produce many different size , you can send me your need disc blade drawings or size , we can supply you the same goods , the following list show the types of disc blade often produced by our factory :
Common Specifications of Discs | |||
Diameter | Height of bow | Thickness | |
MM | INCH | MM | MM |
255 | 10 | 12 | 3 |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3/4 |
460 | 18 | 38~60 | 3/4 |
480 | 19 | 57 | 3/4 |
510 | 20 | 44~63 | 3/4/5 |
535 | 21 | 63 | 3/4/5 |
560 | 22 | 60~85 | 4/5/6 |
585 | 23 | 75~90 | 4/5/6 |
610 | 24 | 75~95 | 4/5/6 |
660 | 26 | 86~115 | 5/6/7/8 |
710 | 28 | 100~130 | 5/6/7/8 |
760 | 30 | 100~135 | 6/7/8/10/12 |
810 | 32 | 100~140 | 7/8/10/12 |
910 | 36 | 120~200 | 8/10/12 |
960 | 38 | 120~200 | 8/10/12 |
Plain disc blade package is hook rings , usually 50pcs or 100pcs packed in one rings .
-Delivery time: after confirm order,within 30days. if your order Qty. more than 3000pcs, delivery time need to disc cuss. but not more than 60days.
-Payments items: As usual, it is30% depositafter confirm order andbalance 70%after shipment.
-Disc blade material: Boron steeland65Mn steel.
- We are able to following yourdrawingorsampleto machining.
