Product Description

Performance and features

This series reducer is designed for two-axis blade mix-er. The output mode of double hollow shafts, maximum savings in installation space and production costs, as a result, the equipment runs more smoothly and efficiently. The hardness of the gear surface reaches 58-62HRC, and the gear accuracy reaches 6 levels (ISO1328). Compared with similar products at home and abroad, it has the characteristics of small size, light weight, reliable use, convenient maintenance and long service life, etc. The series reducer is driven by four-stage gears. The gear material is low-carbon alloy steel. Carburizing, quenching and grinding are adopted.

Center Distance	400 mm
Motor	5.5kW-4P / 7.5kW-4P
Ratio	25
Output Speed	58 rpm
Suitable for 0.25 m³ - 0.5 m³ gravity-free twin-shaft mixers

Application

Using location conditions

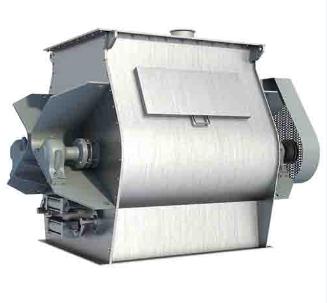

Biaxial blade mixer is widely used in dry mortar, chemical industry, pesticides, ceramics, food, feed and battery industries. When the equipment works, biaxial relative reverse rotation drives the blades with different angles to turn the material along the axial and radial cycles. Under the action of high linear velocity, the material is thrown up and falls in a weightless (i.e. weightless) state. When the material is thrown up and fallen, the cross-mixing of the material reaches uniformity.

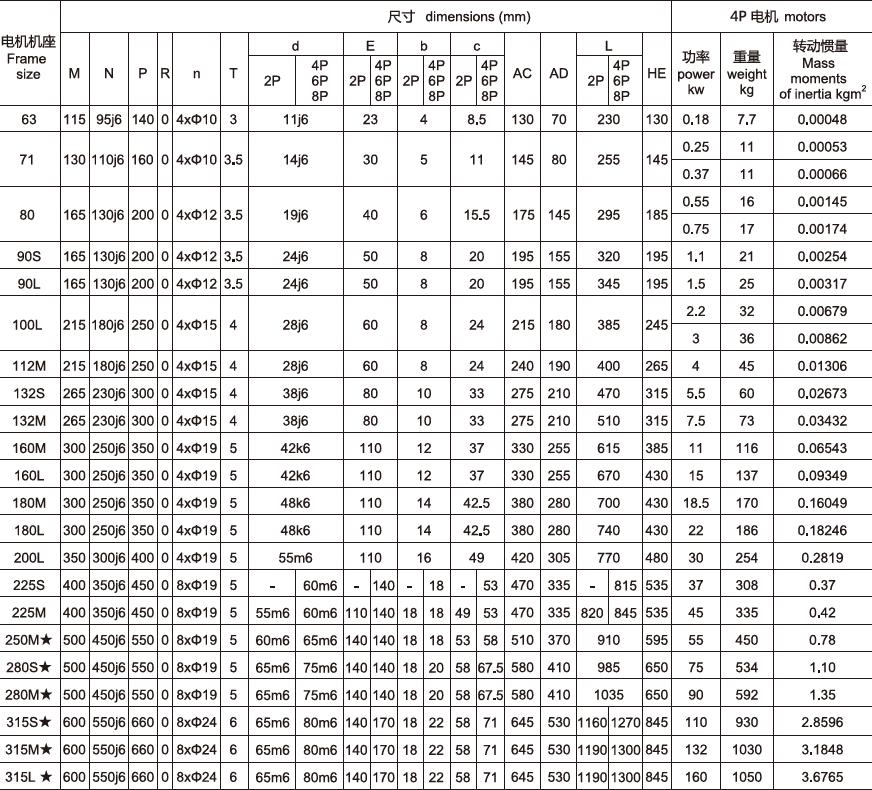

Dimension sheets for Y series three-phase induction motors
