EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure

EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#7a90b2;font-family:Roboto;font-size:24px;color:#53647a;background-color:#fff;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .ma......Keywords:Ep 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter Ss304 Iron Tube Fiber Laser Cutter For Steel Structure - Buy Ss304 Iron Tube Fiber Laser Cutter 45 Degrees Pipe Laser Cutting Machine 450mm Tube Fiber Laser Cutter Machine Product on CMN Industry Inc

Send Inquiry

Product Description

Round tube diameter range 15-450mm(change according to the size of the chuck), can support multiple tube type cutting, channel,angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard semi-automatic loading, more efficient, convenient and stable
Optional 45° bevel, real 0 tailing and 100% material utilization
Fit for engineering machinery, bridge & tunnel, construction machinery, steelwork industry, etc.

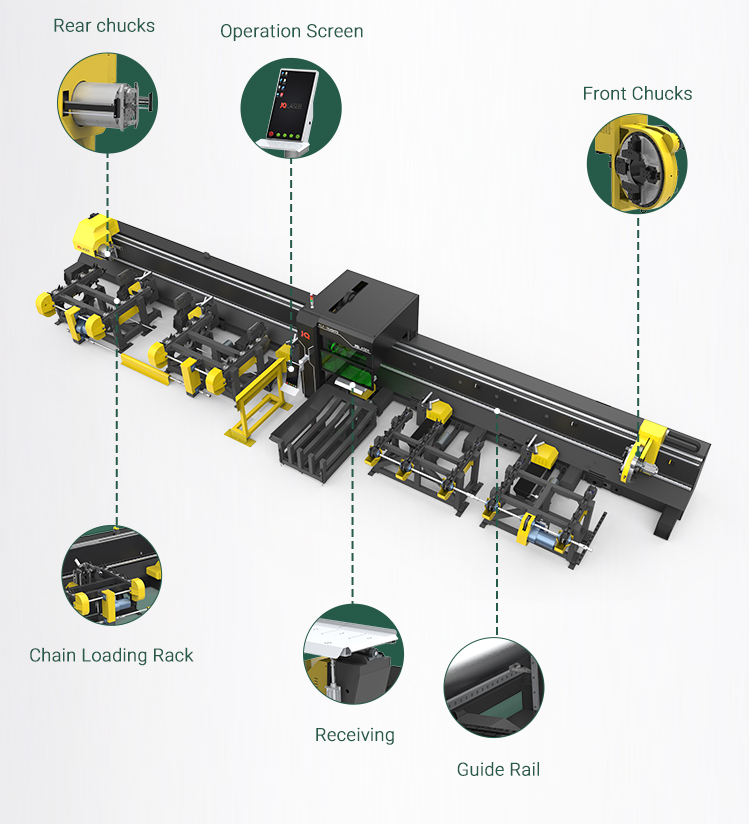

EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
Product Name
Three Chuck Laser Pipe Cutting Machine
Maximum Cut Pipe Length
Cutting Length From 7000 To 12000 mm
Cut Pipe Diameter
15~450mm (Circle Of Workpiece)
Pipe Thickness
Depends On The Power
Cutting Accuracy
±0.1mm
X, Y axis positioning accuracy
±0.05/1000mm
X, Y axis repeat positioning accuracy
±0.03/1000mm
Acceleration
0.8G m/s²
Maximum Operating Speed
60 m/min
Maximum Weight For Each Tube
500Kg
Chuck Rated Speed
60rpm
Mainframe Shape
About 22000×6000×2500mm
Laser power
8000W Or Customized As Required
Three Chunks
Three chucks can be reversed for cutting, and are applied to a variety of clamping and cutting modes can be used to achieve zero-tail cutting of tubes, improve tube utilization, and save costs.
Fully enclosed pneumatic chuck
---Effectively prevent cutting dust pollution ---Full stroke design, high alignment accuracy ---Gear transmission, good rigidity, high transmission precision ---The front chuck and the middle chuck are installed face to face, helping to achieve zero tailing The four-jaw guide rail is driven by the guide rail mechanism, which makes the four-jaw straightness and stability higher, and truly achieves the effect of self-centering
Customizable Chain Type Loading And Unloading Device
The chain type loading and unloading device can realize the handlingand lifting of the upper material of the pipe as well as the receiving ofthe lower material side and the transportation of the finished parts
The Servo Follow-up Support System
The automatic centering device can automatically center the delivered pipe so that the chuck can hold the pipe accurately

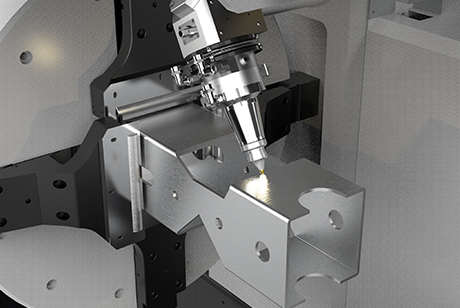

EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
Bus control system
The rich process database is easy to operate and powerful, and can be deeply developed for different customer needs.
CHOOSE YOUR LASERTUBE
Make Your Choice
Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
EP 45 Degrees Pipe Laser Cutting Machine 450mm Big Diameter SS304 Iron Tube Fiber Laser Cutter for Steel Structure
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
