Lathe spindle motor
The lathe spindle motor provides the torque needed to make larger cuts and remove more inventory. It is usually direct or belt driven and provides a stable speed range of 50 to 1000 RPM. The motor is easy to match with different CNC. If you plan to purchase a new lathe, you should first consider the spindle motor type that best suits your needs.
The spindle motor is belt driven or direct driven
When comparing the lathe spindle motor, you should pay attention to the difference between the two. Direct drive lathes tend to use direct drive motors, whereas belt driven lathes typically use belts. These two spindle motors have their own advantages, but they are not the same.
Generally, the direct drive spindle motor has higher efficiency and lower maintenance requirements. Belt driven spindles are more suitable for smaller projects and may not last too long. They are also easier to install. They make it easier to position and install tool holders.
Direct drive spindles can provide higher speeds than belt driven spindles. However, they cost more than belt driven spindles. Choosing between belt drive and direct drive spindles is an important decision that will affect your production.
They provide torque for larger cuts to remove more inventory
The spindle motor provides torque for greater cutting on the lathe, making it easier to remove more inventory. These motors are available in a variety of types and speeds. High speed spindles require more horsepower, while low speed models require less horsepower. These options provide greater torque and better speed control, which makes them ideal for handling large diameter workpieces and harder materials.
The maximum speed of the lathe spindle motor depends on the tool diameter, tool type and material. Each material has its maximum surface cutting speed, which depends on the friction and heat generated between the tool and the part. Metals such as steel and aluminum have a lower maximum surface cutting speed.
They can be easily matched with various CNC
There are different types of lathe spindle motors. Some are rigidly mounted, while others are suitable for low-end RPM and high-speed machining. For example, A2-11 "spindles can be easily replaced between three jaw chucks and four jaw chucks. They range in speed from 7 to 11000 rpm and can be used for large boring and machining operations.
Various CNCs use different spindle motors to ensure that the spindle of the machine tool remains rotating. FANUC spindle motors use a cooling system and additional magnetic poles to reduce noise and heat. Some larger powertrain systems use feedback braking technology to reduce energy use. They can also feed back part of the energy to the grid.

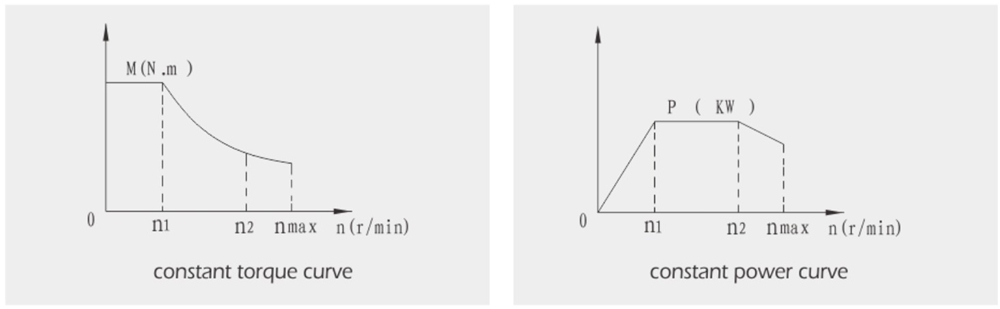

They provide a stable speed range of 50 to 1000 RPM
The lathe spindle motor provides stability and speed control. The maximum output torque of the motor is 875 RPM, and the spindle is 500 RPM. As the spindle speed increases, the torque also increases. In addition, the speed range of 50 to 1000 RPM is very stable, with readings within a few percent. The controller's IR compensation circuit ensures excellent motor regulation and provides a stop of less than 1 second.
Lathe spindle motors are available in a variety of designs, including stepless and constant surface speed (CSS). The C-Turn series has a rigid structure and a 4-speed headstock that provides optimum stability. The large lathe bed is made of high-quality cast iron, and the channel of lathe bed is super wide to reduce the vibration during heavy processing.
They may be damaged
The spindle motor of the lathe may be damaged over time. When they are damaged, they will become inoperable and may be dangerous to operate. Fortunately, there are many ways to repair damaged spindles. These methods can keep your machine running at full load and prevent production lag or loss.
The most common problem with the spindle is runout, which can cause vibration and noise. Other factors that affect the performance of the lathe spindle include the actual running workpiece clamping system, jaws, and materials. In addition, check the hydraulic closer for brake disc runout.
Although DIY maintenance is a good choice, you may need to contact a professional if the spindle drive is excessively worn. Then you need to clean the motor contacts, which should be corrosion free. In addition, poor blade connection may result in low DC error. This may also cause the motor to fail to achieve its maximum rpm.
