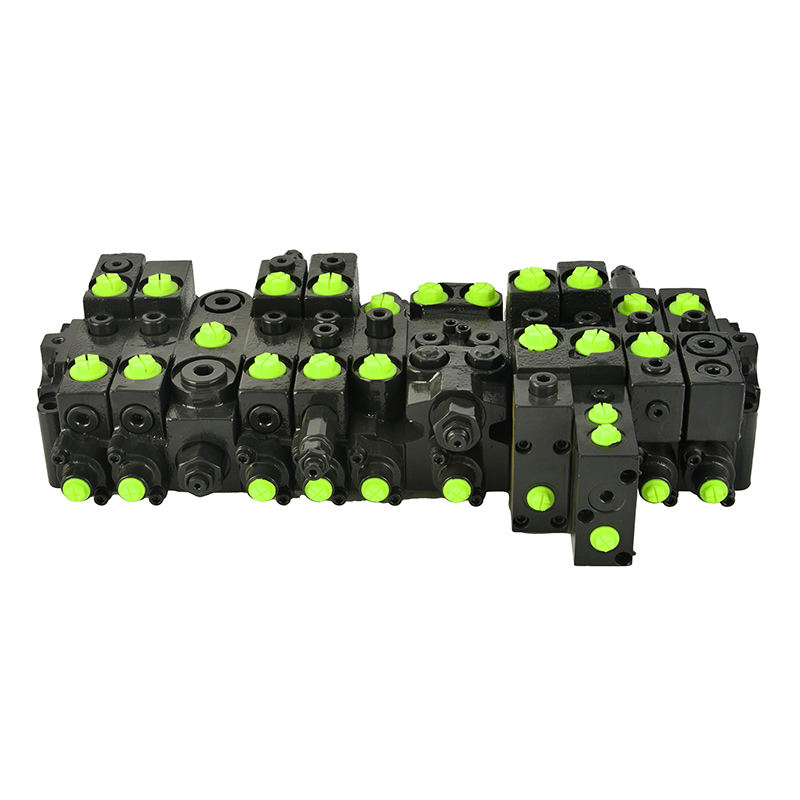

Factory Sale Multi Way 6T Valve Hydraulic Valve for Excavator

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Factory Sale Multi Way 6t Valve Hydraulic Valve For Excavator - Buy Hydraulic Valve Product on CMN Industry Inc

Send Inquiry

Product Description

Characteristic

The Multi-Way 6T Hydraulic Valve is a critical control component in excavators, designed to manage the flow and direction of hydraulic fluid to various actuators (cylinders, motors). The "6T" typically refers to 6 working ports (A, B, P, T, LS, etc.) and tandem center spool configuration, making it ideal for complex hydraulic circuits in construction machinery.

Feature	6T Valve	Conventional Valve
Neutral Flow	Tandem bypass (P→T)	Closed center (pressure buildup)
Efficiency	Load-sensing compatible	Fixed pump flow
Flexibility	Modular, expandable	Limited ports
Precision	Proportional options available	Manual only

Key Features
Tandem Center Spool Design
Allows neutral flow bypass (P → T) when valves are inactive, reducing pressure buildup and energy loss.

Ensures smooth transitions between operations (e.g., boom, arm, and bucket movements).

6-Port Configuration
P (Pump Inlet) – High-pressure supply from the hydraulic pump.

T (Tank Return) – Return line to the reservoir.

A & B (Actuator Ports) – Connect to hydraulic cylinders/motors for bidirectional control.

LS (Load Sensing) – Dynamically adjusts pump flow based on demand, improving efficiency.

Optional Auxiliary Ports – For additional functions (e.g., hammer circuits, thumb attachments).

Proportional or Manual Control
Lever-operated (manual) for standard excavators.

Electro-hydraulic (proportional) for precision in advanced models (e.g., Hitachi ZX series).

High Pressure & Flow Capacity
Rated for 250–350 bar (3,600–5,000 psi), handling high-power excavator workloads.

Flow rates up to 100–200 L/min (depending on valve size).

Durability & Anti-Clogging
Hardened spools and sleeves resist wear in abrasive environments.

Application Scenarios:
Boom/Arm/Bucket Control
Directs flow to cylinders for lifting, digging, and dumping motions.

Swing & Travel Motors
Manages rotation and movement via hydraulic motor circuits.

Attachments (Optional)
Supports auxiliary hydraulics for hammers, grapples, or augers (via 3rd/4th spool sections).

Load-Sensing Systems
Optimizes pump output to match real-time demands, saving fuel (common in modern excavators like CAT 320).

For more details, please click here to contact us!
