Factory Sale Various B5 Flange Mounted -TEFC Stainless Steel Motor for Food Processing Plant

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:288.7903736542115px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:288.7903736542115px}#detail_decorate......Keywords:Factory Sale Various B5 Flange Mounted -tefc Stainless Steel Motor For Food Processing Plant - Buy Stainless Steel Motor motor Foot Mounted-tenv iec Stainless Steel Motor Product on CMN Industry Inc

Send Inquiry

Product Description

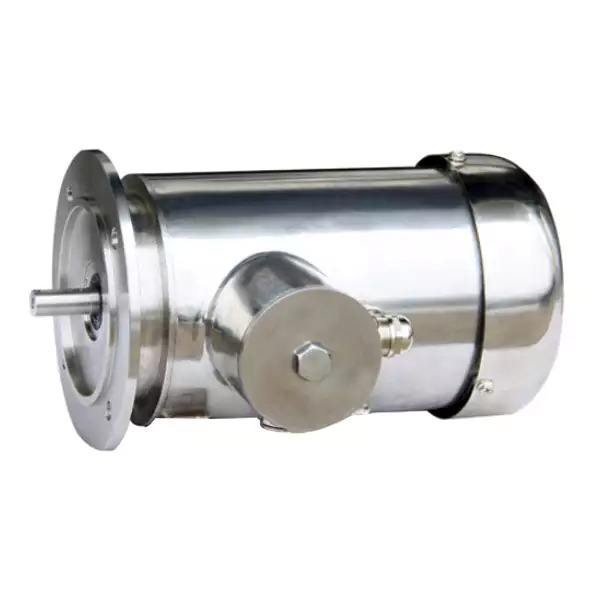

Description Of Stainless Steel Motor
All stainless steel motors designed and produced by HZPT have a lower protection grade of ip66/ip67. They can be soaked in 15 cm to 1-meter deep water for 30 minutes to prevent water from entering. It is suitable for high temperature, high humidity, water, steam, and other * end working environments. These motors can even operate underwater - the protection grade of standard products has reached IP67! All motors adopt unique assembly technology to avoid through bolt connection or end cover bolt connection. The surface of the motor is very smooth, which is easy to clean and wash dirt such as food residues.
The stainless steel motors produced by HZPT company can be made of stainless steel 302, 304, or 316 according to customer requirements. The standard product is made of food-grade 304 stainless steel, which can be used for a long time without rust and corrosion. The standard motor shaft is made of stainless steel 420.

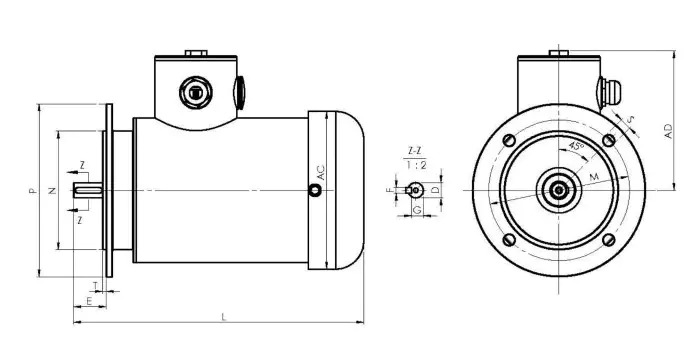

Frame Type	Flange type	Poles	D	E	F	G	M	N	P
R	S	T	Flange hole	shaft hole	AC	AD	71	FT130	2, 4, 6
14	30	5	11	130	110	160	0	10	3.5
4	M5	134	129	80	FT165	2, 4, 6	19	40	6
15.5	165	130	200	0	12	3.5	4	M6	144
135	90	FT165	2, 4, 6	24	50	8	20	165	130
200	0	12	3.5	4	M8	176	147	100	FT215

Advantages of stainless steel motor

-The stainless steel motor developed by it has a smooth surface and meets the high sanitary standards required by the market.
-stainless steel motor is made of a tubular frame, closed design, and no ventilation. The external parts of the motor are made of stainless steel, and plastic parts are not used. The nameplate data is engraved on the back of the end cover or junction box by laser, without accumulation of dust or processing residues, so that the surface of the motor is easy to clean and can withstand common corrosive reagents.
-Stainless steel motor has ip69k protection grade, and the efficiency can reach IE4. Due to the precise electrical design, the motor's internal heating and surface temperature are limited. In addition, the motor is made of insulating material, so it is suitable for use with inverters.
-HZPT can also research and design unique electrical and mechanical solutions to meet the customized needs of customers.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
