Slewing Drive Gearbox For Satellite Antenna
When choosing a slewing drive for your satellite antenna, there are a few important things you should consider. Single-axis slewing drives are commonly used, and they are easy to install, with a low profile and enclosed housing. They are ideal for satellite dishes, solar trackers, and mining equipment. A slewing drive for your satellite antenna should have a low maintenance design and a high level of performance.
Hourglass worm mechanism

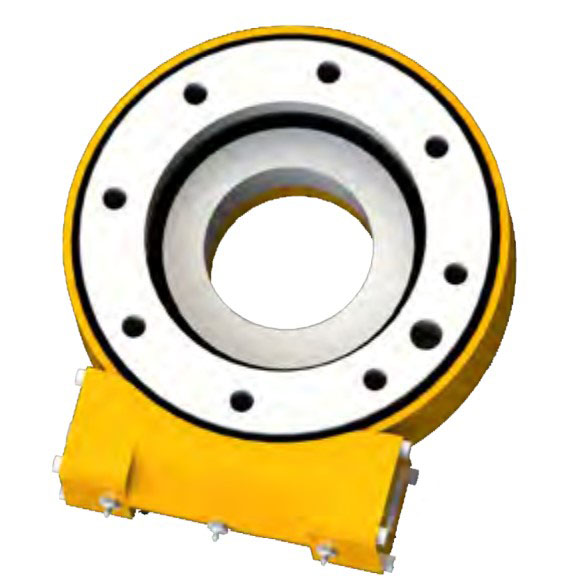

The FGE series slewing drive gearbox from Ever power combines patented hourglass worm technology with an IP55-rated enclosure and a case seal for maximum component protection. They're suitable for single-axis and dual-axis slewing drives, and are available in four sizes and four different mounting configurations.
Slewing drive gearboxes are commonly used for rotating devices that need high rotational torque. Slewing drives are designed to withstand axial and radial loads, and are capable of high overhung loads. They're also a versatile solution for many applications. Because they combine multiple gear teeth, the slewing drive provides high torque while maintaining high accuracy and rotation.
The hourglass worm mechanism is a patented design that works to maximize torque output. This mechanism engages five to eleven teeth on the pitch line of the ring gear via an hourglass thread. This increased tooth engagement makes the gearbox extremely strong, durable, and energy efficient.
Double-row slew bearings
Double-row slew bearings in a slewing drive gearbox for a satellite antenna are an excellent choice for the gearbox of a satellite antenna. They can meet the application requirements for both indoor and outdoor applications. Double-row slew bearings have a high load capacity, even in environments with high humidity, but are less expensive than a gearbox with single-row slew bearings.
Double-row slew bearings are available for a variety of applications, including slewing drive gearboxes, rotary tables, and truck mount cranes. They are available in flanged and four-point contact options and can be used with either an internal or external gearbox. Other common uses include mobile carne, wind turbines, and turntables. They are also widely used in the steel industry for turn dish rotation.
Slew drives are commonly used in satellite antennas. The dual-axis design allows for a wide range of rotational torque. The internal components are enclosed in cast iron or aluminum housings. They provide high output rotational torque and a high ratio of input torque to output torque. These bearings are highly durable, and are ideal for a wide variety of satellite antenna applications.
Low-maintenance design
Slewing Drive Gearboxes are designed for high rotational torques and radial and axial loads. This type of gearbox is constructed with a housing, motor, gearing, and seals to complete the assembly.
FGE Slewing Drive Gearboxes are characterized by integrated mechanical system components, including IP65-rated brushless motors, internal brakes, and heavy-duty gears. These systems are controlled via RS422 links and include Ethernet interfaces for control computer systems. The Slewing Drive Gearbox For Satellite Antenta incorporates a controller located in the base electrical cabinet. Its high-speed azimuth axis allows accurate tracking of X and L band satellites, and eliminates the keyhole effect.
Slewing Drive Gearboxes are available in single, double, and hourglass designs. They are designed to handle radial, axial, and high-overhung loads. Slewing Drives are CE-, REACH-, and ISO-certified.
Applications
Slewing drive gearboxes are well-suited for applications requiring high torque at reduced speeds. This type of gearbox offers smooth component operation and zero backlash. These gearboxes are made of phosphor bronze, steel, or other materials with comparable wear and tear characteristics. They also feature enclosures for protection from dust, water, and other environmental factors.
Slewing drives come in a single-axis or double-axis design, and are suitable for high-performance applications. They feature an enclosed housing, low-profile design, and are easy to install. They are suitable for satellite antennas due to their reliable, high-performance performance.
Slewing drive gearboxes have a unique design that can handle axial and radial loads, and can generate high rotational torques. They are also easy to install, maintain, and save considerable installation space. Their versatility allows them to be used in a variety of applications where rotational torque strength is required.
