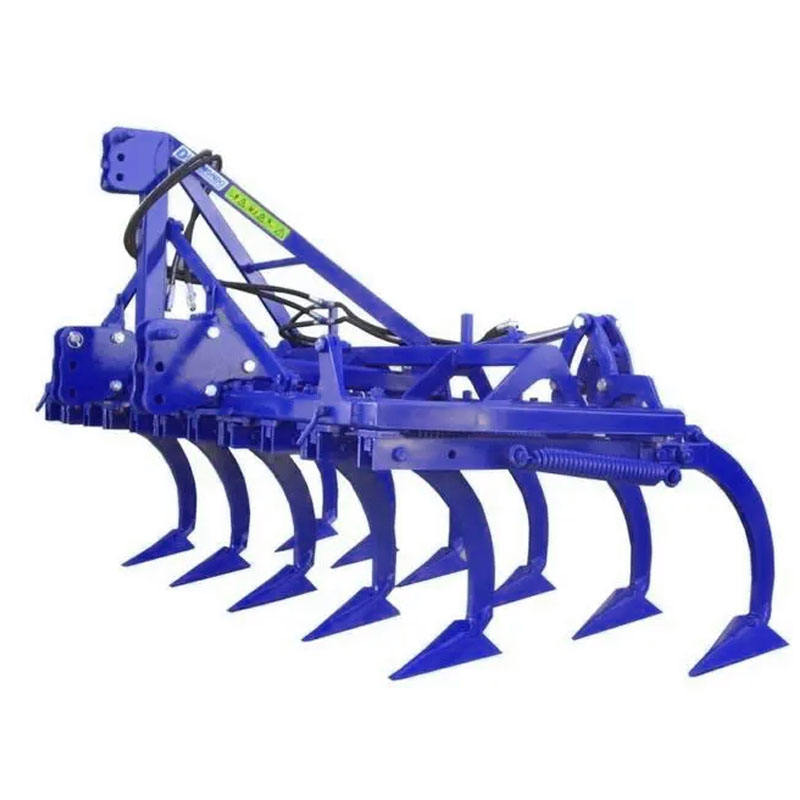

Forest farm machinery chisel disk plow for Africa
3S subsoiler is mainly suitable for field deep tillage operations in the potato, beans and peas and cotton fields, the machine can break hardened soil, free soil, retain under ground water content and clean stubble, the machine has the advantages of adjustable depth, wide application range, convenient hitching, etc.
| Model | 3S-1.0 | 3S-1.4 | 3S-1.8 | 3S-2.1 | 3S-2.6 |
Working width(mm) | 1000 | 1400 | 1800 | 2100 | 2600 |
Working depth(mm) | 100-240 | ||||
No. of plough body | 5 | 7 | 9 | 11 | 13 |
Weight(kg) | 210 | 240 | 280 | 320 | 380 |
Linkage | Three point mounted | ||||
Matched power(hp) | 25 | 40 | 50-60 | 70-80 | 80-100 |

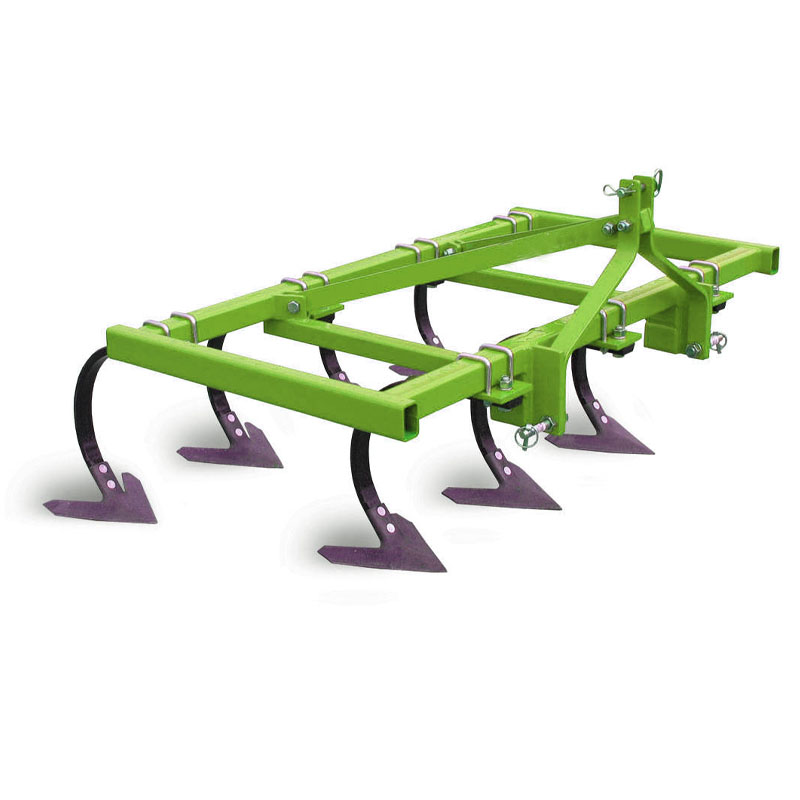

3S-1.0 , 5pcs leg cultivator :
3S-1.4 , 7pcs leg cultivator :
3S-1.8 , 9pcs leg cultivator :
3S-2.1 , 11pcs leg cultivator :
Address :Hangzhou City , Zhejiang Province , China
Main product :disc harrow , disc plough , cultivator , furrow plow , rotavator , farm trailer , subsoiler ,boom sprayer , mist sprayer , mower and many different types agricultural machinery parts .
-Delivery time: after confirm order,within 30days. if your order Qty. more than 3000pcs, delivery time need to disc cuss. but not more than 60days.
-Payments items: As usual, it is30% depositafter confirm order andbalance 70%after shipment.
-Disc blade material: Boron steeland65Mn steel.
- We are able to following yourdrawingorsampleto machining.
