Product Description

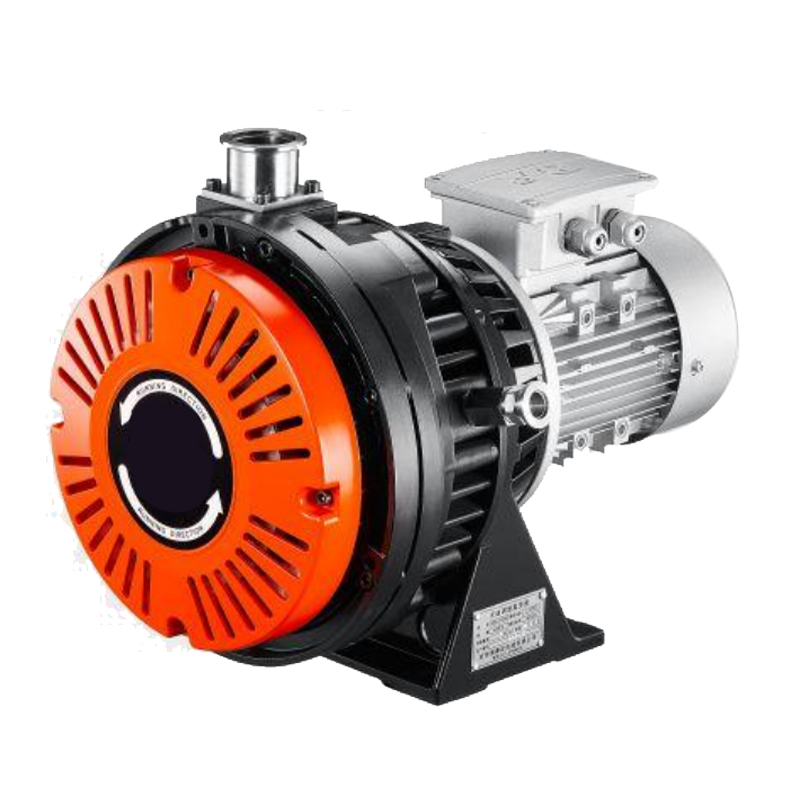

Oil-free SCroll Vacuum Pump

1.Quick pumping speed, wide range, low vacuum limit to 1 pa

2.Oil free, no return oil, no fuel injection, no need to add any oil in the process of work, zero emissions, green, can befrequently started between atmospheric pressure and vacuum.

3.Low Vibration.lownoise_owenergy consumption 4.Small volume, light weight, simple structure, high reliability, long service life

Displacement	L/min	500
Ultimate Vacuum	Pa	≤1.0
Noise Level	dB/A	≤59
Leakage	Pa.m2/s	0.1/0.13
Max inlet/Exhaust Presure	Mpa	0.1/0.13
Power	KW	0.75
Voltage	V	220/380
Speed	rpm	1400(50HZ)1800(60HZ)
Ambient Operation Temp	℃	5-40
Inlet/Exhaust Flauge		KF40/16
Cooling type		AirCooted
Dimensions	mm	495325355
NetWeight	kg	28

Note:According To User Needs To Design Production

1、Analytical test equipment,energy spectrometer.scanning electron microscope

2、vacuum coating，laser tube vacuum and packaging Electron beam welding,laser welding，vacuum furnace helium mass spectrometer, molecular pump front pump widely used in electronics，medical,aviation,packaging machinery,food, scientific research and other fields.

The company specializes in oil-free scroll vacuum pump R & D production, sales and service.There is a R & D team composed of severaldoctors, with ultra-high precision processing production equipment and special detection instruments.The integrated production ensures the quality of the products, and the performance of the products reaches to international level. The company pursues the quality first, the user is supreme,whit the fine service spirit We sincerely look forward to and welcome new and old friends to exchange and cooperate with us
