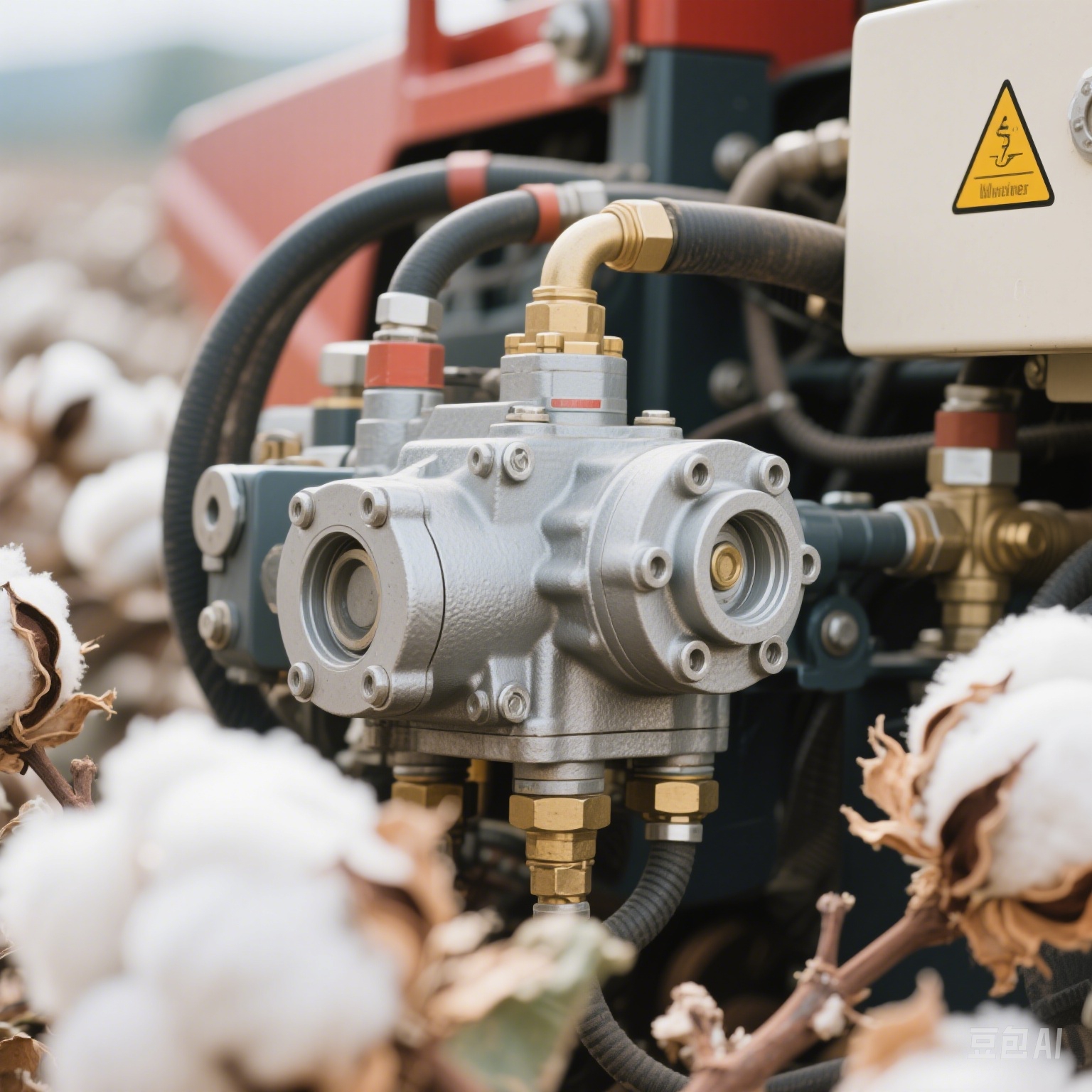

G10VO Series Swash Plate Axial Piston Variable Displacement Pump Hydraulic Pump for Aerial Work Platform,cotton Picker

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:G10vo Series Swash Plate Axial Piston Variable Displacement Pump Hydraulic Pump For Aerial Work Platform,Cotton Picker - Buy Hydraulic Pump Product on CMN Industry Inc

Send Inquiry

Product Description

Slant disc structure axial piston variable displacement pump, suitable for open circuit hydraulic transmission; The flow rate is directly proportional to the speed and displacement, and can be infinitely varied by adjusting the inclined plate; Sturdy bearings have a longer service life when aligned; Good oil absorption; Low noise, electro-hydraulic displacement control;

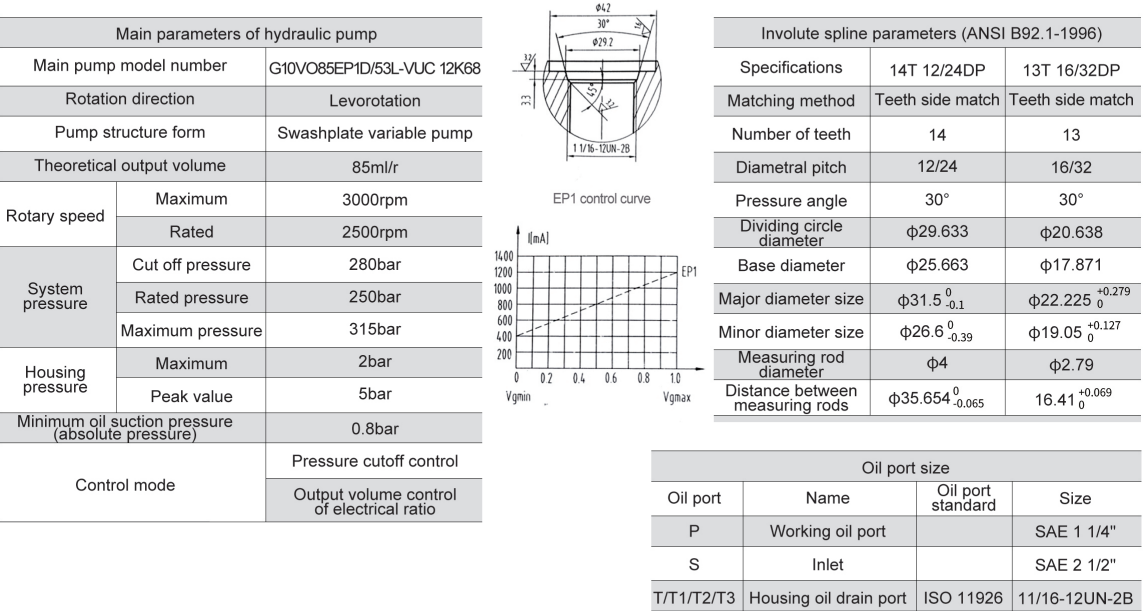

model	A10VO85EP1D/53L-VUC12K68
displacement	85mL/r
Rotation direction	Left-handed rotation
Rated speed	2500rpm
Maximum speed	3000rpm
Rated pressure	250bar
Maximum pressure	315bar
Cut off pressure	280bar
control mode	Electric proportional displacement control (DC) 12V, Deutsch DT04-2P connector

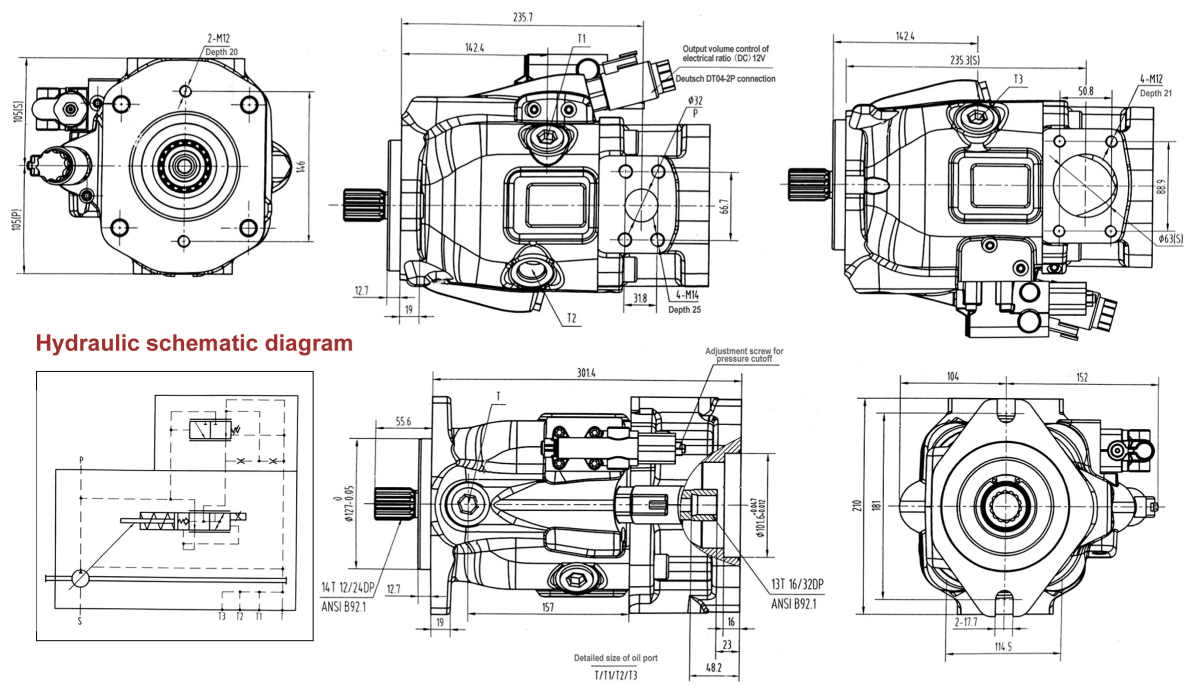

Input shaft	14T 12/24DP ANSI B92.1a
Installing flanges	SAE J744-32-4; Stop diameter 127mm, stop depth 12.7mm
Through axis drive	Installation flange: SAEJ744 101-2 (B); Internal spline: 13T 16/32DP
Housing return port	lSO 1192611/16-12UN-2B
Oil inlet	SAE 2 1/2 ", M12 x 1.75, thread depth 21
Oil outlet	SAE 1 1/4 ", M14 × 2, thread depth 25

Assembly precautions (1) During the assembly process, please be careful not to leave burrs on the assembly surface and do not allow dust to enter;

(2) After assembly, apply dust-proof treatment to the exposed holes;

(3) Apply rust inhibitor to the input shaft and flange;

(4) When spraying paint, the nameplate and installation surface need to be covered to avoid painting.

-Operation precautions (1) When transporting hydraulic pumps, do not apply strong impact to the drive shaft of the pump body;

(2) Before operation, it is necessary to exhaust through the exhaust port to fill the housing with clean hydraulic oil;

(3) When running the hydraulic pump, be careful not to let hydraulic oil and other liquids flow onto the surface of the hydraulic pump assembly;

(4)The cleanliness of the hydraulic oil used should meet NAS level 9.

Application Scenarios:
1. Harvesting Operations – Hydraulic pumps power critical components like the header, feed rollers, and stalk choppers, ensuring
efficient corn picking and processing.

2. Driving Systems – Used in hydrostatic transmissions for smooth speed control and maneuverability in varying field conditions.

3. Grain Handling – Supports hydraulic augers and elevators for seamless grain transfer to storage or transport vehicles.

4. Adjustable Mechanisms – Enables real-time adjustments of header height, reel speed, and other parameters for optimal harvest
quality.

5. Steering & Braking – Integrates with hydraulic steering systems for precise control, especially in large, modern harvesters.
