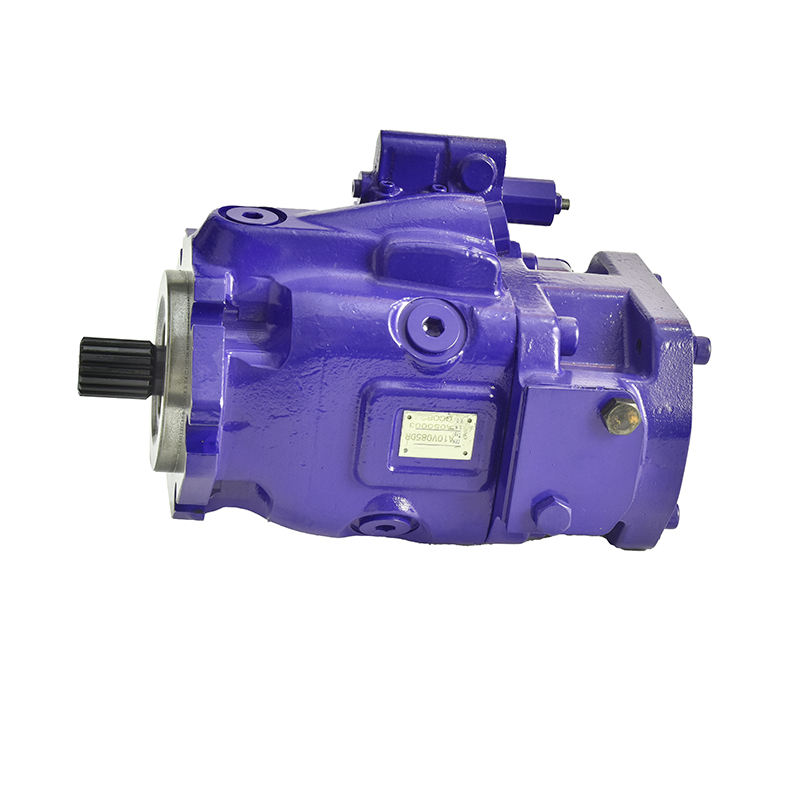

G10VO Series Swash Plate Axial Piston Variable Displacement Pump Hydraulic Pump for Industrial Equipment, Construction Machinery

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:G10vo Series Swash Plate Axial Piston Variable Displacement Pump Hydraulic Pump For Industrial Equipment,Construction Machinery - Buy Hydraulic Pump Product on CMN Industry Inc

Send Inquiry

Product Description

Slant disc structure axial piston variable displacement pump, suitable for open circuit hydraulic transmission; The flow rate is directly proportional to the speed and displacement, and can be infinitely varied by adjusting the inclined plate; Sturdy bearings have a longer service life when aligned; Good oil absorption; Low noise, constant voltage control

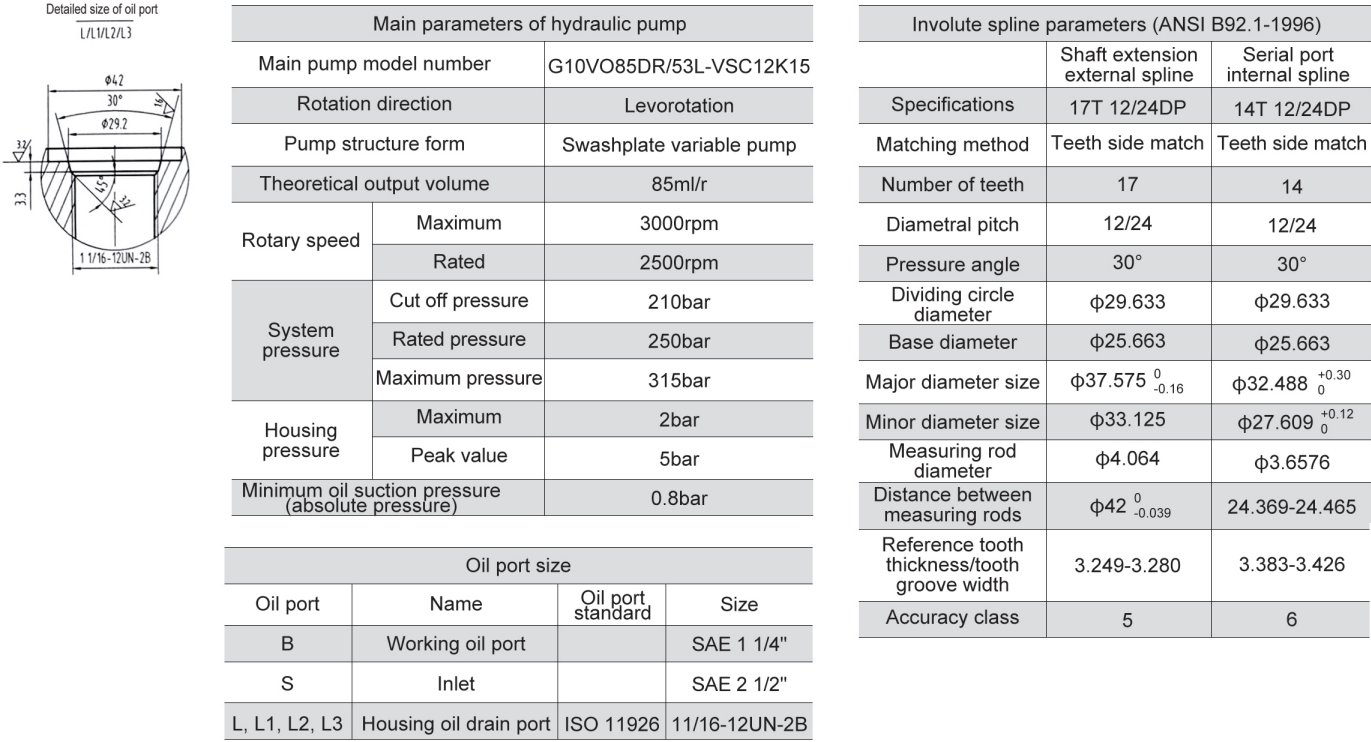

model	A1OVO85DR/53L-vSC12K15
displacement	85mL/r
Rotation direction	Left-handed rotation
Rated speed	2500rpm
Maximum speed	3000rpm
Rated pressure	250bar
Maximum pressure	315bar
Cut off pressure	210bar

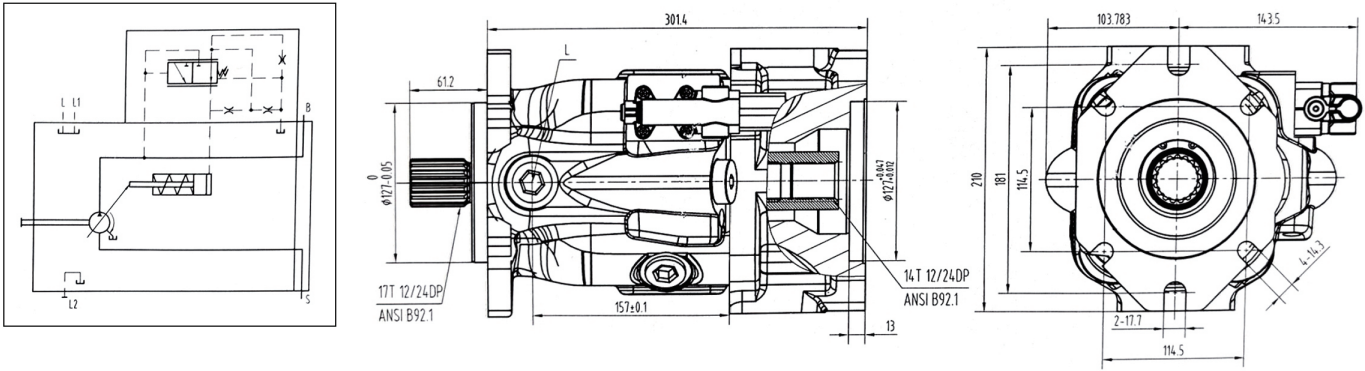

Input shaft	17T 12/24DP ANSI B92.1a
Installing flanges	SAEJ744-38-4; Stop diameter 127mm, stop depth 12.7mm
Through axis drive	Installation flange: SAE J744127-4 (C); Internal spline: 14T 12/24DP
Housing return port	ISO 1192611/16-12UN-2B
Oil inlet	SAE 21/2 ", M12 x 1.75, thread depth 21
Oil outlet	SAE 11/4 ", M14 × 2, thread depth 25

Assembly precautions (1) During the assembly process, please be careful not to leave burrs on the assembly surface and do not allow dust to enter; (2) After assembly, exposed holes should be treated with dust-proof measures; (3) Apply rust inhibitor on the input shaft and flange; (4) When painting, the nameplate and installation surface need to be covered to avoid painting. Precautions for operation (1) When transporting hydraulic pumps, do not subject the drive shaft of the pump body to strong impact. (2) Before operation, it is necessary to exhaust through the exhaust port and fill the housing with clean hydraulic oil; (3) When running the hydraulic pump, be careful not to let hydraulic oil and other liquids flow onto the surface of the hydraulic pump assembly; (4) The cleanliness of the hydraulic oil used should reach NAS level 9.

Application Scenarios:
1. Harvesting Operations – Hydraulic pumps power critical components like the header, feed rollers, and stalk choppers, ensuring
efficient corn picking and processing.

2. Driving Systems – Used in hydrostatic transmissions for smooth speed control and maneuverability in varying field conditions.

3. Grain Handling – Supports hydraulic augers and elevators for seamless grain transfer to storage or transport vehicles.

4. Adjustable Mechanisms – Enables real-time adjustments of header height, reel speed, and other parameters for optimal harvest
quality.

5. Steering & Braking – Integrates with hydraulic steering systems for precise control, especially in large, modern harvesters.
