Product Description

Advantages:
1. High Power Density – Delivers significant force in compact designs, ideal for heavy-duty agricultural tasks.

2. Precision Control – Enables smooth, variable-speed operation for delicate handling of crops.

3. Durability – Built to withstand dust, moisture, and continuous use in harsh farm environments.

4. Energy Efficiency – Modern pumps optimize power usage, reducing fuel consumption.

5. Low Maintenance – Sealed systems and robust materials minimize downtime and repair costs.

6. Versatility – Compatible with various attachments (e.g., corn headers, stalk shredders) for multi-crop adaptability.

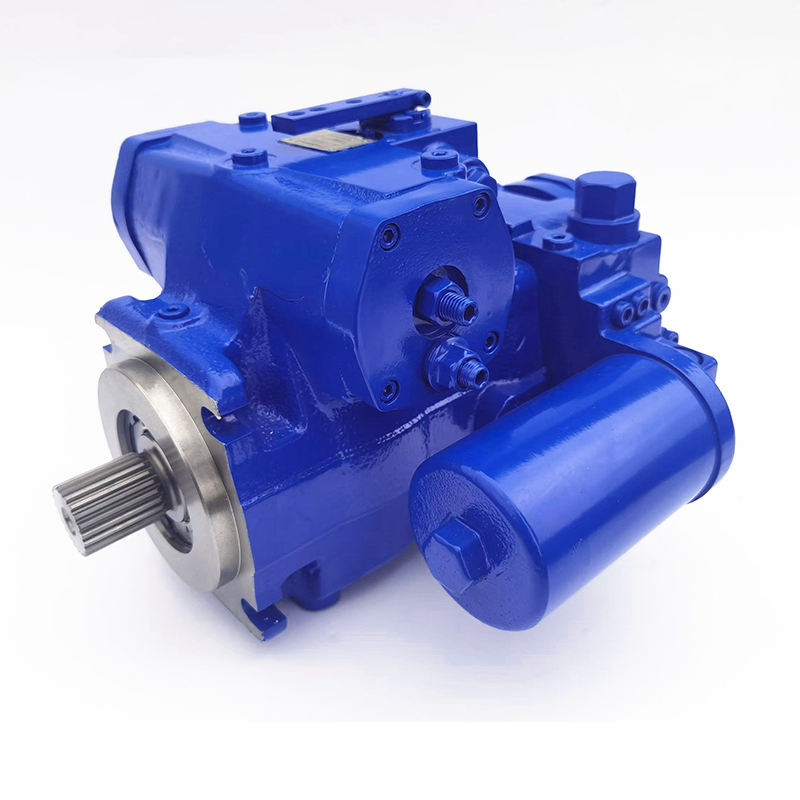

Model	G4VG90HW main pump
Displacement	80mL/r
Direction of rotation	right rotation
Speed	Rated speed: 3000rpm Maximum speed: 3300rpm

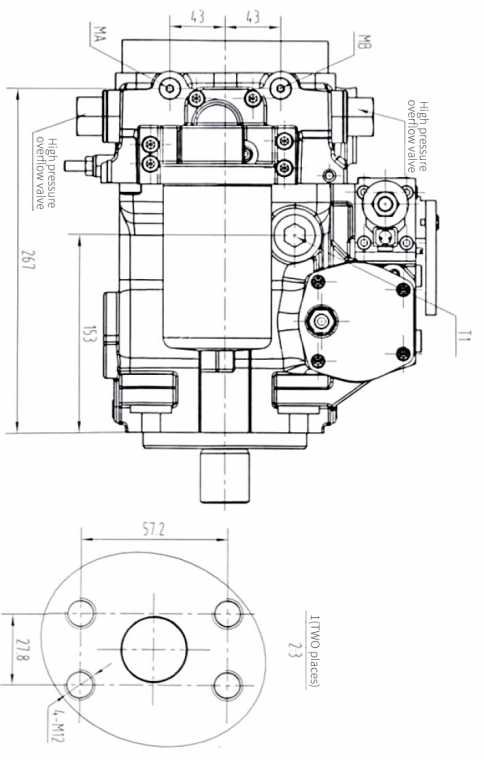

High pressure overflow pressure	400bar
Cut off pressure of	360bar
Shell pressure	Rated: 2 bar Peak: 5 bar
Oil replenishment pressure	25 bar
Oil replenishment pump displacement	18mL/r
Oil suction pressure	Minimum (absolute pressure): 0.8 bar Maximum (absolute pressure): 5 bar
Control method	Mechanical servo control
Filtering method	Integrated oil pressure filtration
Filtering accuracy	10 μ m

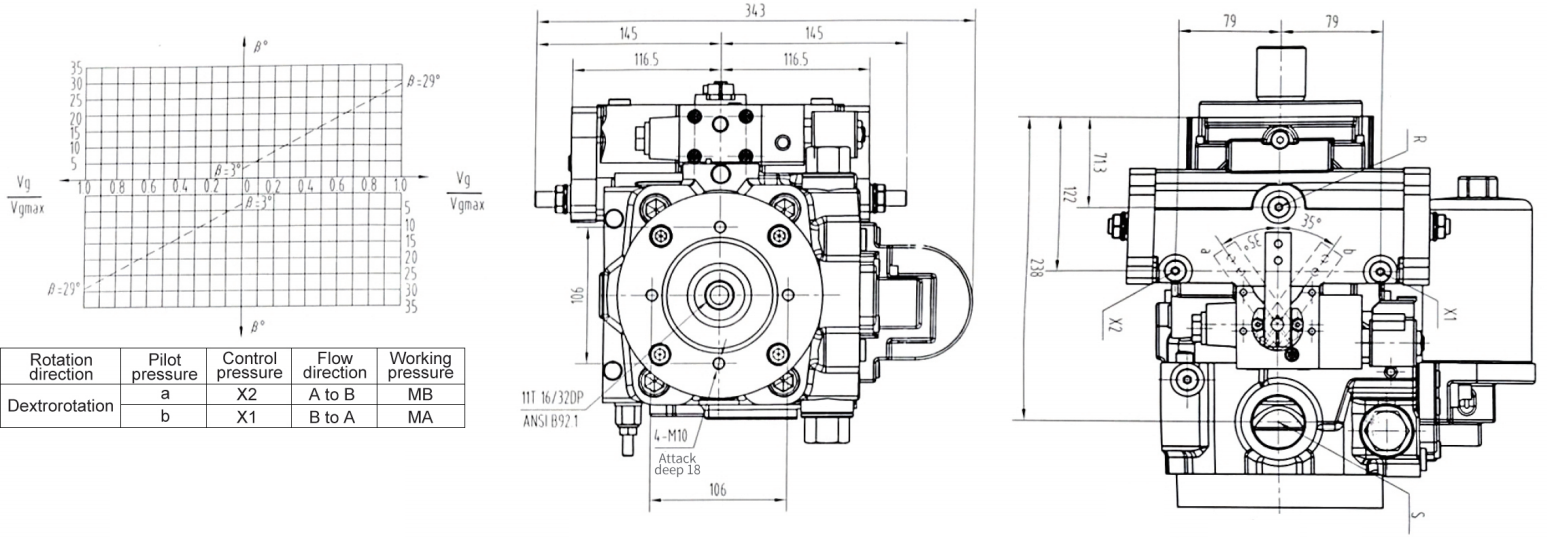

Mounting flange	SAEB flange, stopper: 159.96-160mm,Stop depth 12.7mm
Output shaft	23T 16/32DP ANSI B92.1a
Shell oil return port	DIN3852 M26 * 1.5
Working oil port	SAE1",M12*1.75,thread depth 17

Assembly precautions (1) During the assembly process, please be careful not to leave burrs on the assembly surface and do not allow dust to enter; (2) After assembly, apply dust-proof treatment to the exposed holes; (3) Apply rust inhibitor to the input shaft and flange; (4) When spraying paint, the nameplate and installation surface need to be covered to avoid painting. -Operation precautions (1) When transporting hydraulic pumps, do not apply strong impact to the drive shaft of the pump body; (2) Before operation, it is necessary to exhaust through the exhaust port to fill the housing with clean hydraulic oil; (3) When running the hydraulic pump, be careful not to let hydraulic oil and other liquids flow onto the surface of the hydraulic pump assembly; (4) The cleanliness of the hydraulic oil used should meet NAS level 9.

Application Scenarios:
1. Harvesting Operations – Hydraulic pumps power critical components like the header, feed rollers, and stalk choppers, ensuring
efficient corn picking and processing.

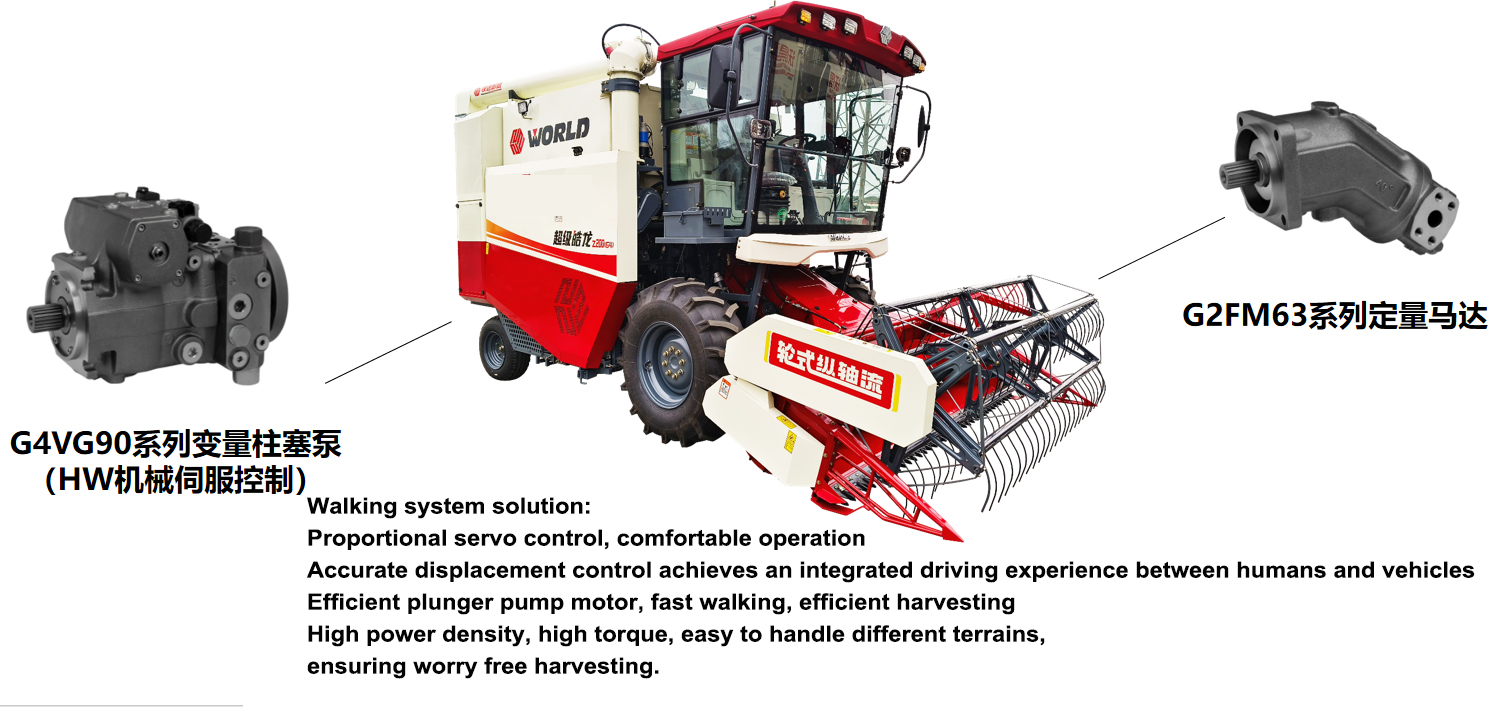

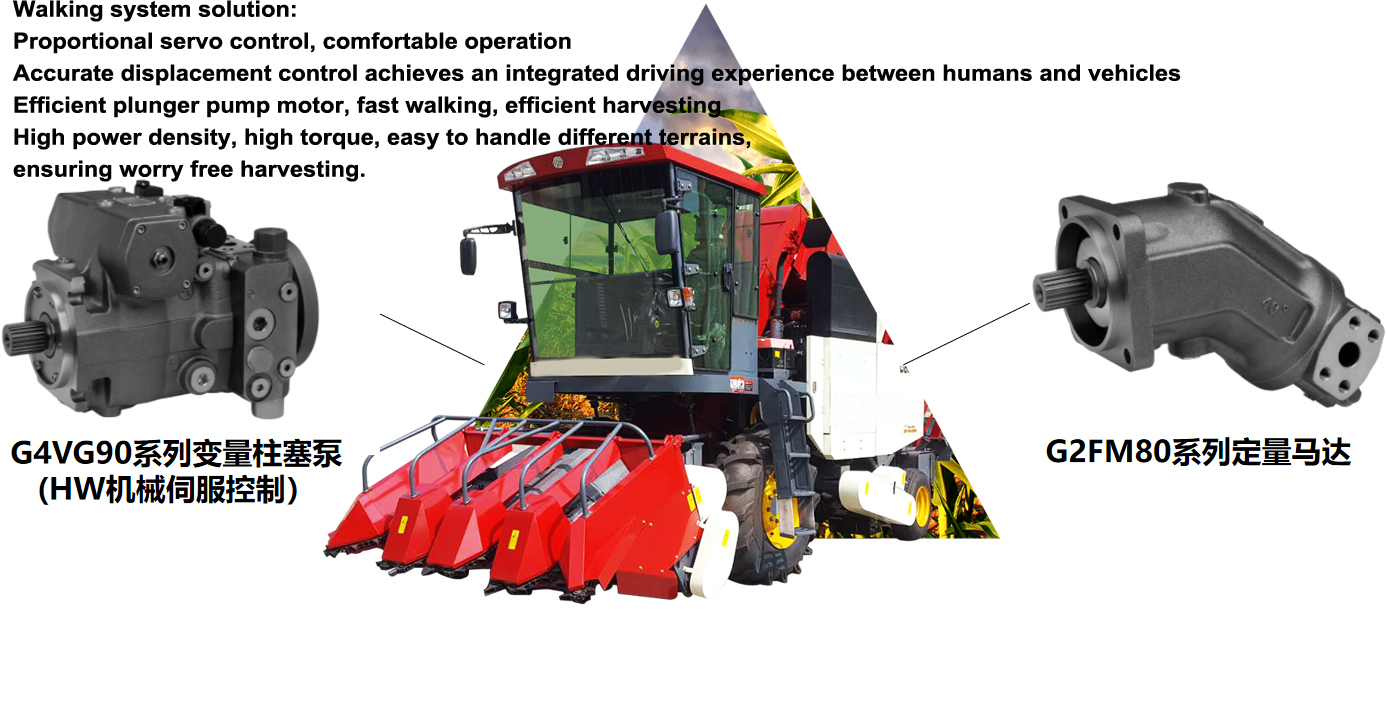

2. Driving Systems – Used in hydrostatic transmissions for smooth speed control and maneuverability in varying field conditions.

3. Grain Handling – Supports hydraulic augers and elevators for seamless grain transfer to storage or transport vehicles.

4. Adjustable Mechanisms – Enables real-time adjustments of header height, reel speed, and other parameters for optimal harvest
quality.

5. Steering & Braking – Integrates with hydraulic steering systems for precise control, especially in large, modern harvesters.
