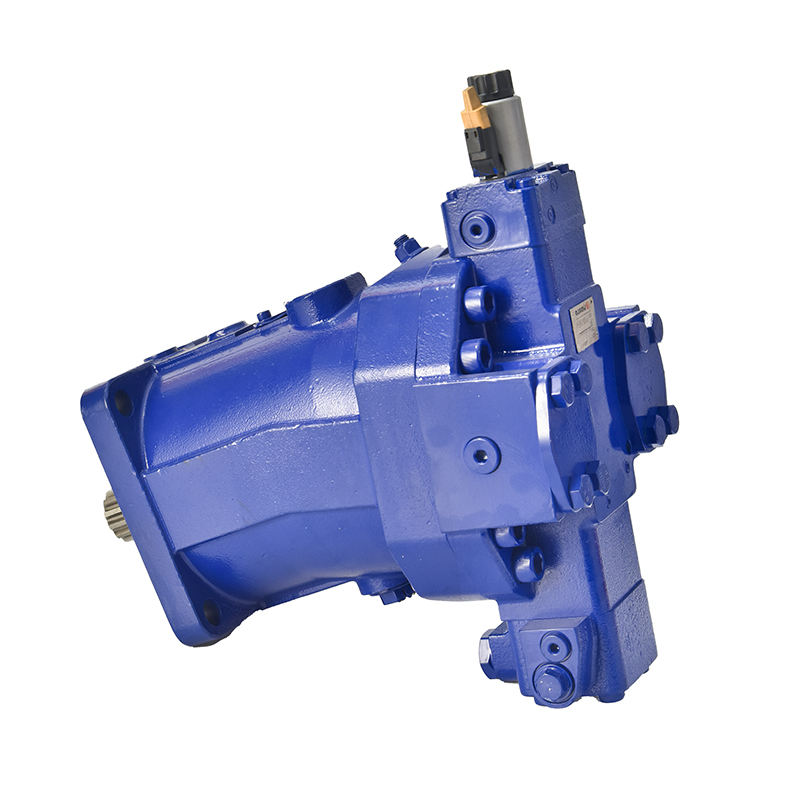

G6VM Series Agricultural Machinery Parts Oblique Axis Plunger Hydraulic Motor for Walking Machinery and Industrial Field

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:G6vm Series Agricultural Machinery Parts Oblique Axis Plunger Hydraulic Motor For Walking Machinery And Industrial Field - Buy Agricultural Machinery Parts Hydraulic Motor Product on CMN Industry Inc

Send Inquiry

Product Description

Key Features:

Through a wide adjustment range, the variable motor can meet the requirements of high speed and high torque, and is suitable for open or closed hydraulic transmission circuits; The displacement can be infinitely adjusted; Multiple control devices; The bearing system has a compact structure, is sturdy and durable, and has a long service life; High power density, large range of inclined axis swing;

Model	A6VM1 60EP1/63w-VAB017-P-K
Displacement	160mL/r
Set minimum displacement	50ml/r (adjustable)
Direction of rotation	Bidirectional
Speed	Rated speed: 3100rpm Maximum speed: 4900rpm
System allowable pressure	Rated pressure: 400 bar Maximum pressure: 450 bar
Shell pressure	Rated: 3 bar Peak: 5 bar

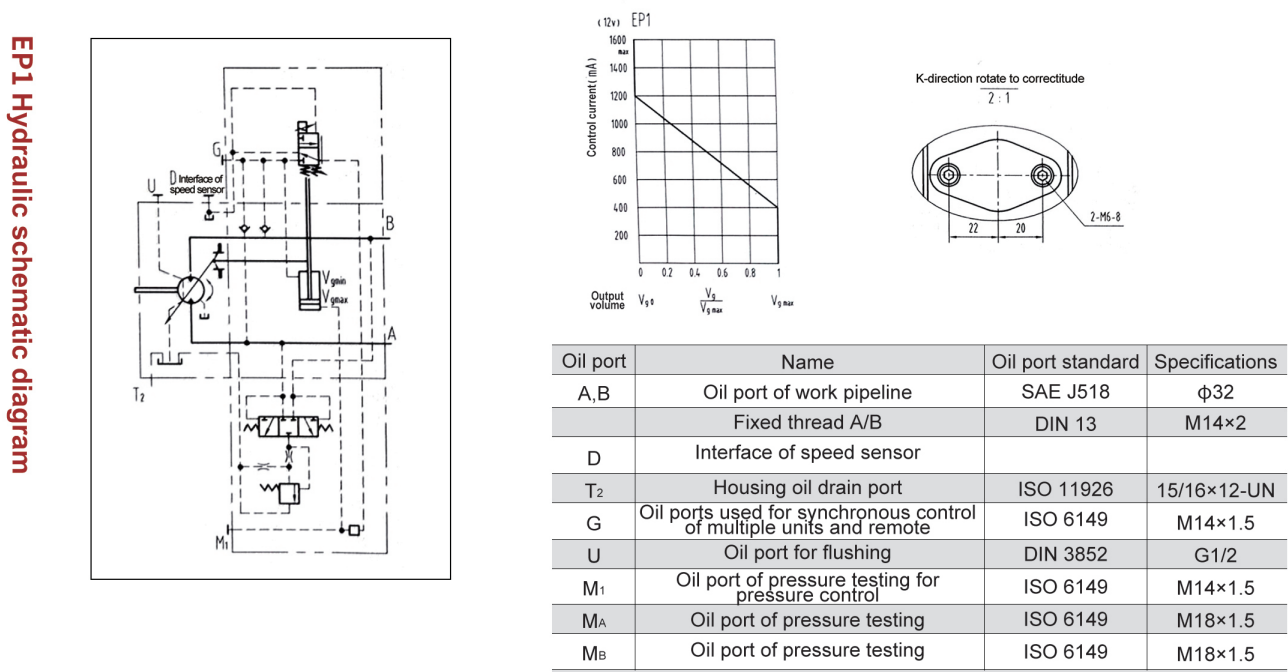

Control method	Electric proportional displacement control, 120; DEUTSCH DT04-2P-EP04,2 needles

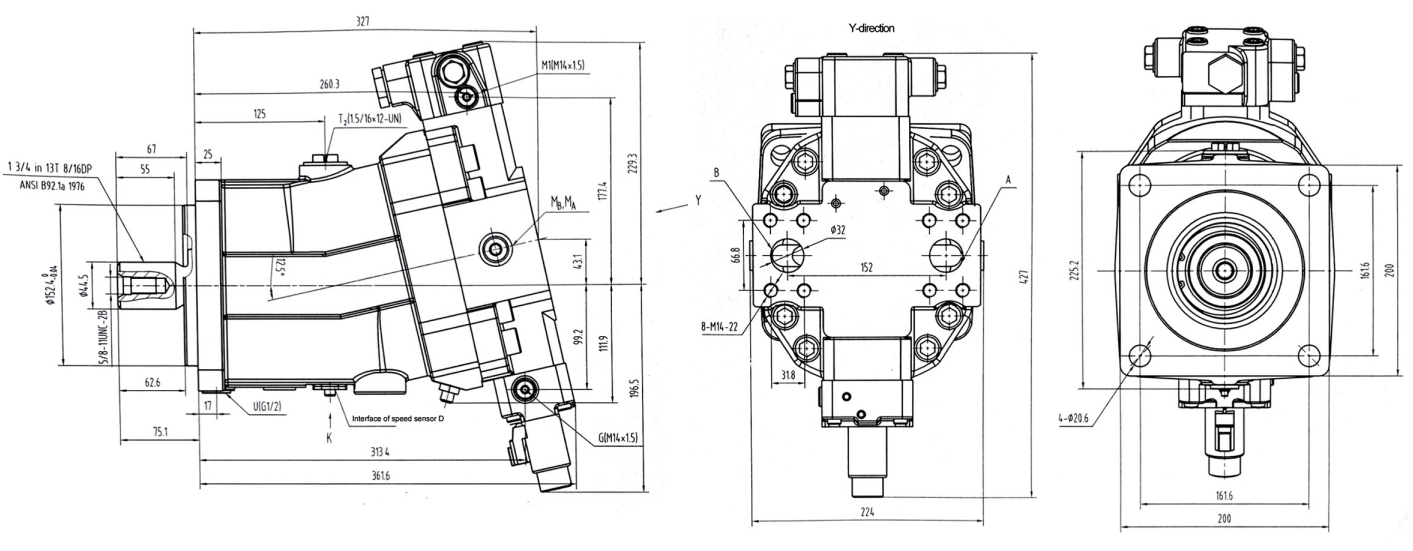

Mounting flange	SAEB flange, stopper: 152.36-152.4mm Mounting flange: 152.36-152.4mm, spacing 161.6mm

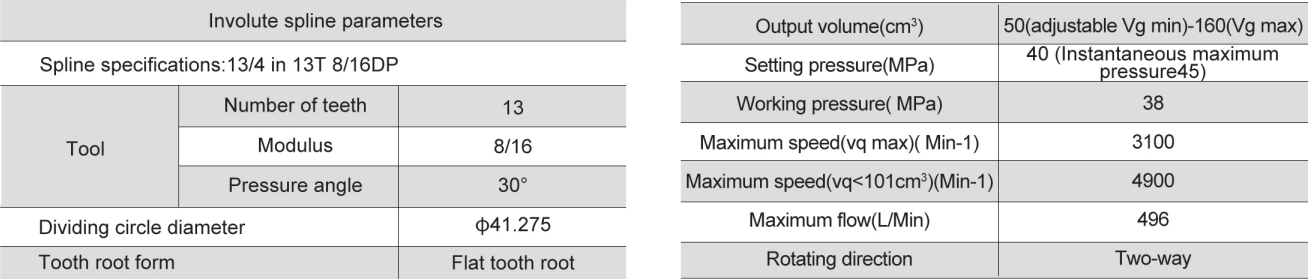

Output shaft	13/4 in 13T 8/16DP, with speed magnetic ring
Main oil port	DN32; M14x2; 22; SAEJ51811/4, ports A and B are located behind the rear
Case oil return port	1 5/16-12UN
System pressure gauge port	M18×1.5
Rinse the oil port	G1/2
Synchronous control oil port	M14 × 1.5
Flush valve	40L/min

After installing the motor, inject 46 # hydraulic oil and confirm the oil level gauge; When transporting hydraulic motors, do not apply strong impact to the output shaft of the motor; In order to ensure the reliability of motor function, hydraulic oil must have a cleanliness level of at least 20/18/15 according to lSO4406, and a cleanliness level of at least 19/17/14 according to lS04406 requirements at very high hydraulic oil temperatures (90 ℃ to a maximum of 115 ℃) Assembly product testing program: 1) Sealing test; After sealing, the airtightness test should be conducted at 0.4 Mpa atmospheric pressure for more than 3 minutes 2) Operation: The overall deviation of the small gear should be within 0.5mm.

Applications:

Mobile Equipment:
Construction Equipment: Excavators, bulldozers, loaders, graders, cranes – powering tracks, wheels, booms, and attachments.
Agricultural Machinery: Tractors, harvesters, sprayers, planters – driving wheels, implements, and auxiliary functions.
Material Handling: Forklifts, telehandlers, conveyors – for propulsion, lifting, and moving materials.
Forestry Equipment: Skidders, feller bunchers, harvesters – powering wheels, cutting heads, and manipulating timber.
Mining Equipment: Drilling rigs, loaders, haul trucks – for heavy-duty operations in harsh environments.

Industrial Applications:
Manufacturing: Powering machine tools, conveyors, mixers, agitators, rolling mills, and indexing tables.
Automation: Driving robotic arms, manipulators, and automated assembly lines.
Marine: Steering systems, winches, propulsion drives on smaller vessels.
Energy: Driving pumps, compressors, and drilling equipment in oil and gas industries.
Food and Beverage: Powering processing equipment, mixers, and conveyors in hygienic environments.
Textile Industry: Driving various types of textile machinery.
Paper and Pulp: Powering rollers, drives, and processing equipment.

For more details, please click here to contact us!

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
