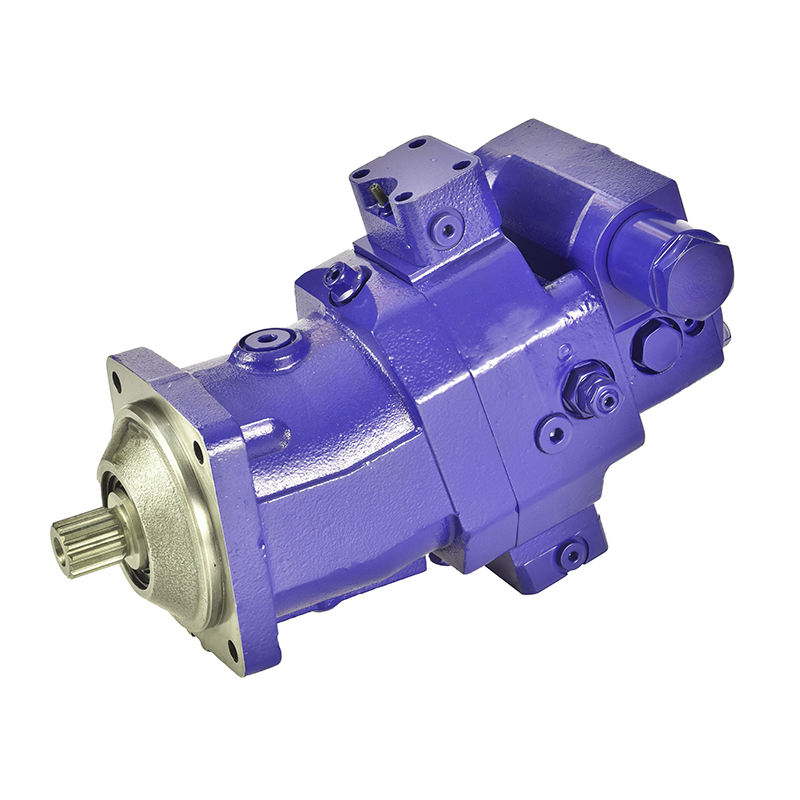

G6VM Series Inclined Axis Axial Piston Variable Displacement Motor Walking Machinery and Industrial Field Hydraulic Motor

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:G6vm Series Inclined Axis Axial Piston Variable Displacement Motor Walking Machinery And Industrial Field Hydraulic Motor - Buy Hydraulic Motor Product on CMN Industry Inc

Send Inquiry

Product Description

Key Features:

Through a wide adjustment range, the variable motor can meet the requirements of high speed and high torque, and is suitable for open or closed hydraulic transmission circuits; The control mode is automatic control related to HA1 and high voltage; Equipped with BVD20F27S balance valve; The bearing system has a compact structure, is sturdy and durable, and has a long service life; High power density, large range of inclined axis swing;

Technical requirement Inject 46 # hydraulic oil and confirm with the oil level gauge after installing the motor; Except for the parts marked with dashed lines, the remaining parts should be painted; The testing program of assembly products: 1) Sealing test: conduct a gas tightness test after sealing, and the test time should exceed 3 minutes at 0.2Mpa atmospheric pressure; 2) Operation: The overall deviation of the small gear should be within 0.5mm; Spray paint Motor 1) Condition: one layer 2) Thickness: over 30um 3) Color: Gray 4) Material: polyurethane resin Please review the test specifications

Model	A6VM80HA1/63w-VAB380A-SK
Displacement	80mL/r
Set minimum displacement	30.2ml/r (adjustable)
Direction of rotation	Bidirectional
Speed	Rated speed: 3900rpm Maximum speed: 6150rpm
System allowable pressure	Rated pressure: 400 bar Maximum pressure: 450 bar
Shell pressure	Rated: 3 bar Peak: 5 bar
Control method	HA1 automatic control related to high voltage

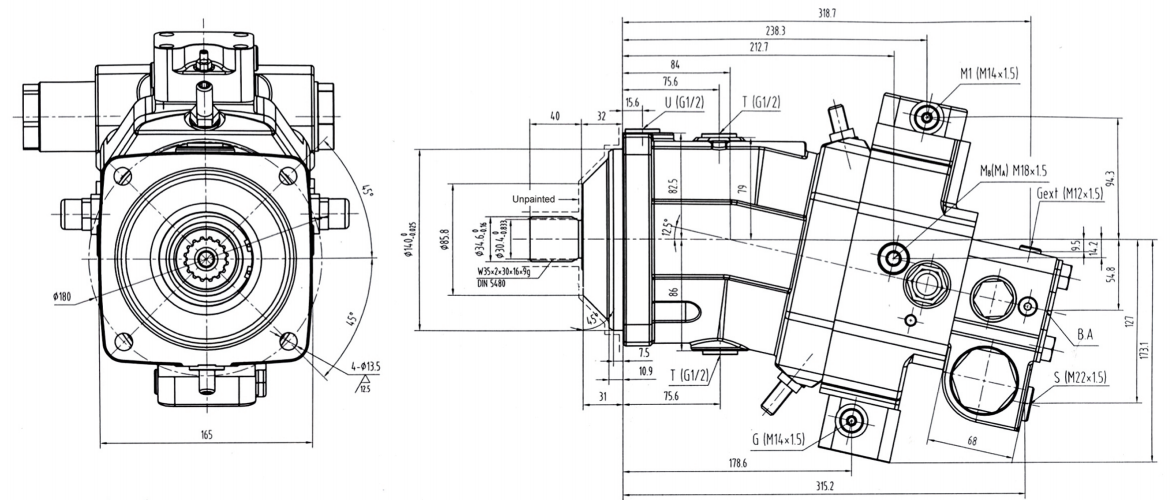

Mounting flange	SAEB flange, stopper: 140mm Mounting flange: 4-13.5, Installation hole indexing circle 180mm

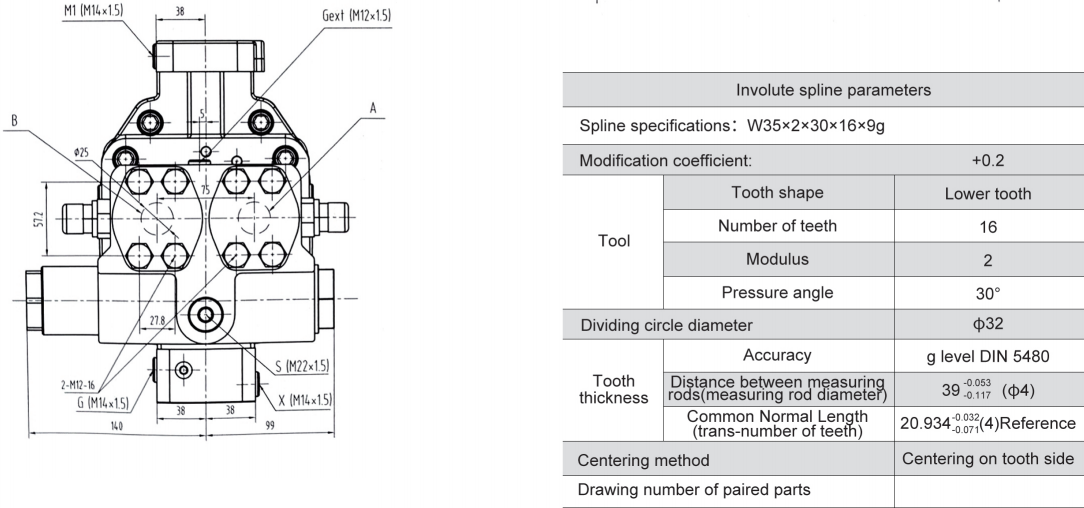

Output shaft	W35×2×16×9g DIN5480
Main oil port	DN25; M12×1.75;SAE J518 1, ports A and B are located behind the rear
Case oil return port	1 5/16-12UN
System pressure gauge port	M18×1.5
Rinse the oil port	G1/2
Synchronous control oil port	M14 × 1.5
Attachment valve group	BVD20F27S balance valve

Applications:

Mobile Equipment:
Construction Equipment: Excavators, bulldozers, loaders, graders, cranes – powering tracks, wheels, booms, and attachments.
Agricultural Machinery: Tractors, harvesters, sprayers, planters – driving wheels, implements, and auxiliary functions.
Material Handling: Forklifts, telehandlers, conveyors – for propulsion, lifting, and moving materials.
Forestry Equipment: Skidders, feller bunchers, harvesters – powering wheels, cutting heads, and manipulating timber.
Mining Equipment: Drilling rigs, loaders, haul trucks – for heavy-duty operations in harsh environments.

Industrial Applications:
Manufacturing: Powering machine tools, conveyors, mixers, agitators, rolling mills, and indexing tables.
Automation: Driving robotic arms, manipulators, and automated assembly lines.
Marine: Steering systems, winches, propulsion drives on smaller vessels.
Energy: Driving pumps, compressors, and drilling equipment in oil and gas industries.
Food and Beverage: Powering processing equipment, mixers, and conveyors in hygienic environments.
Textile Industry: Driving various types of textile machinery.
Paper and Pulp: Powering rollers, drives, and processing equipment.
