Product Description

A jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications. It is designed to transmit torque (by connecting two shafts) while damping system vibrations and accommodating misalignment, which protects other components from damage. Jaw couplings are composed of three parts: two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider". The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider. Jaw coupling torque is transmitted through the elastomer lobes in compression.

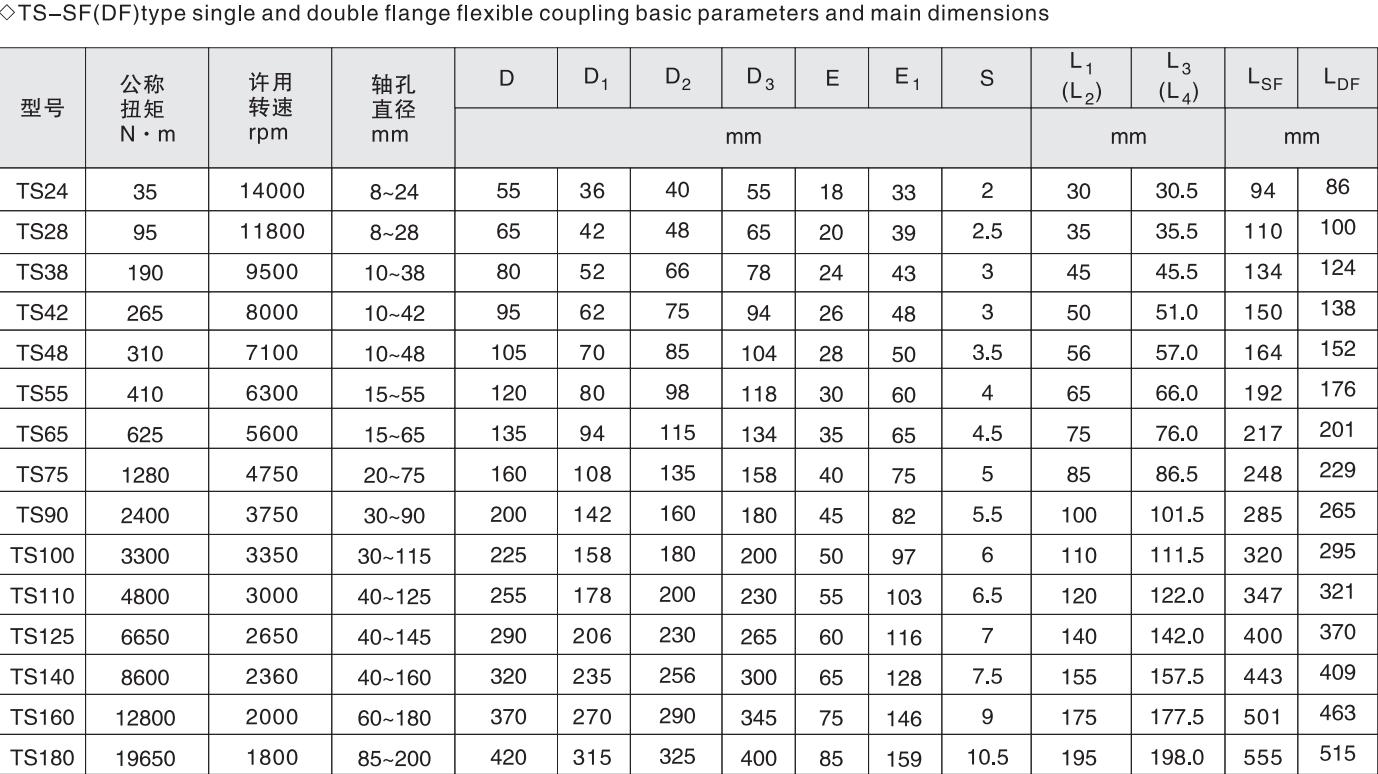

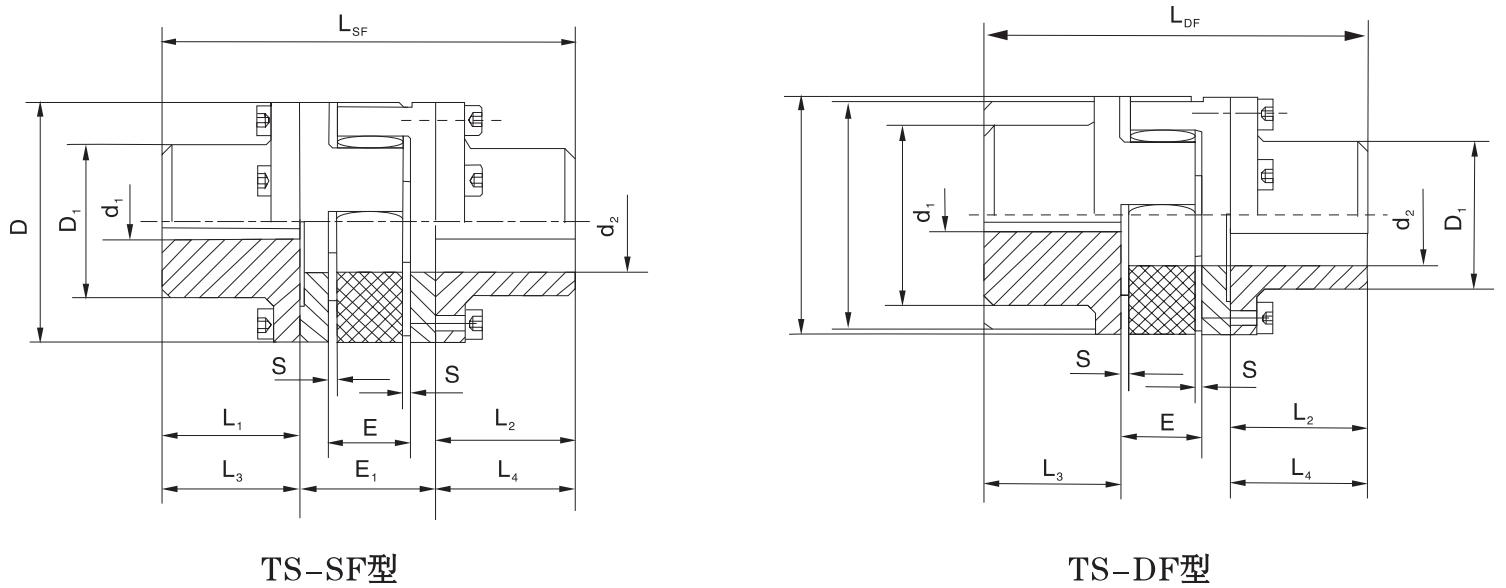

Structural characteristics Compact size, small inertia. Plastic components for flexibility, cushioning, vibration, wear, operating temperature 35 +80 °C; maintenance. Elastic limit by the protruding claw block, which can avoid the impact of internal deformation and centrifugal force generated by the external deformation produced. Claw large concave convex, so that the involute tooth on the surface pressure is small, even if the tooth to withstand the overload, the tooth still will not wear or deformation. Axial plug-in installation. Nominal torque value when the elastic 92shA, 98shA torque increased by about 70%. Structural characteristics Applicable to heavy machinery flange. Radial flange can be removed to install, very easy. For the SF-type, without moving the active side and driven-side equipment replacement elastomer. Installation required to cut off power.

For more details, please click here to contact us！

Our company is a large-scale expert company with mechanical transmission design, manufacting and marketing. Our compay has the first-class production equipment in China and advanced QC measurement, together with a highly qualified team. Over the years, to meet the reauirements of customers, we insist in" high quality, good faith" and attract high-tech talents,d igest assimilate advancecl foreign technology, constant innovation, producting a large number of high-tech, high-quality transmission machine. Our company is not only widely recognized by customers, but also a fresh power in national transmission industry. We have built complete quality and management guarantee, obtained the ISO9001 certificat. So far we own more than 8 series, total over 300types of shaft coupling, more than 20 series, total thousand types of coupling sleeve. We also can produce special size products cater to requirement of customers. These products are widely used in metallurgical, chemical, printing, pumps, fans, transport machinery, and other fiels, and exports to the Far East and Southeast Asia. We believe that superior quality is the basis of mutual benefit and trust to broaden win-win economic cooper. Welome the masses of old and new customers to patronize cordially!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
