Specifications
Precision gradeJIS grade N6 (JIS B1702-1: 1998)
JIS grade 2 (JIS B1702: 1976)
Reference
section of gearRotating plane
Gear teethStandard full depth
Transverse
pressure angle20°
Helix angle21°30'
MaterialSCM440
Heat treatmentThermal refinined, tooth surface induction hardened
Tooth hardness50 ~ 60HRC
Face width (E)8
Hub width (F)10
Total length (G)18
Screw offset (J)5

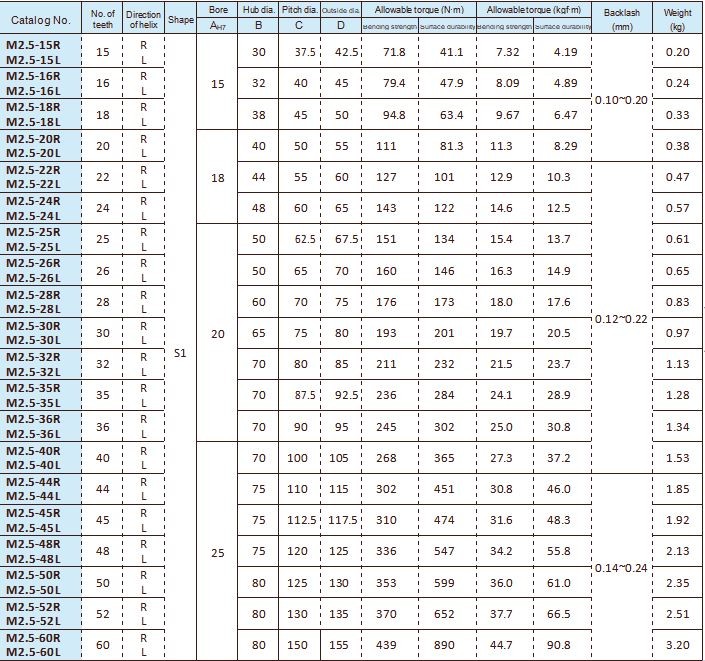

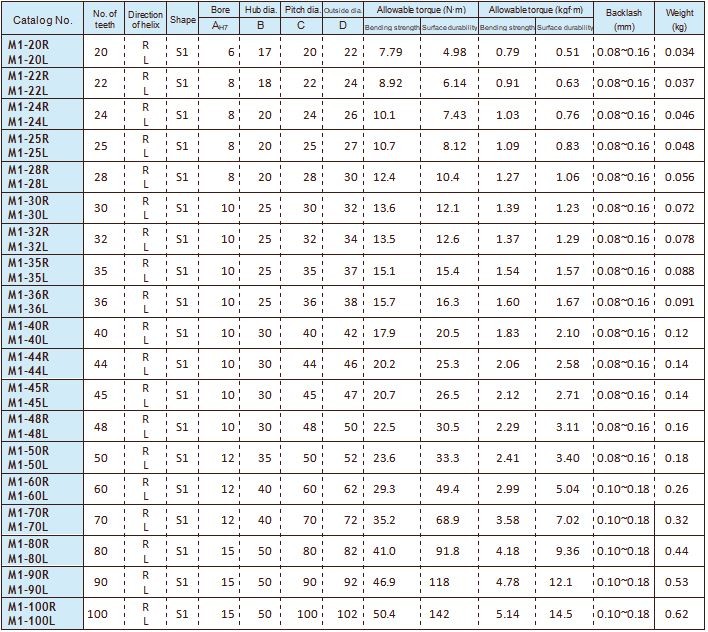

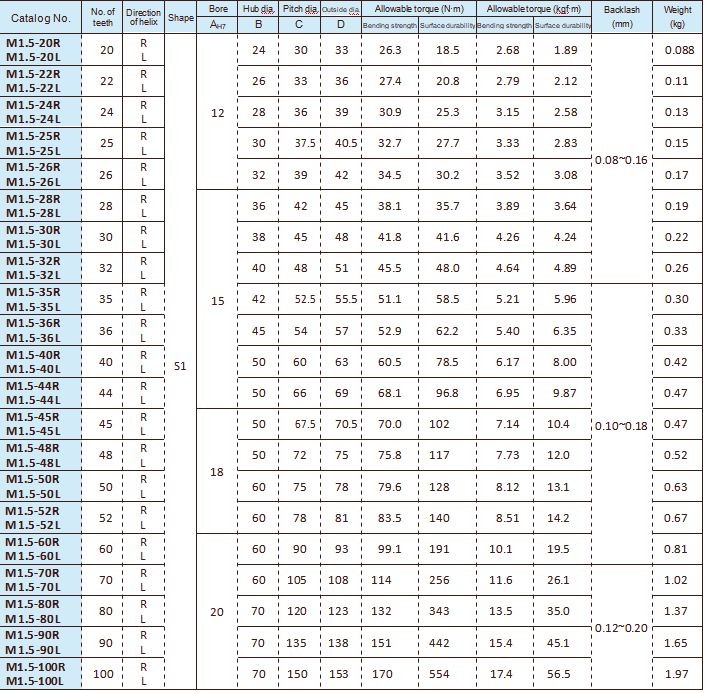

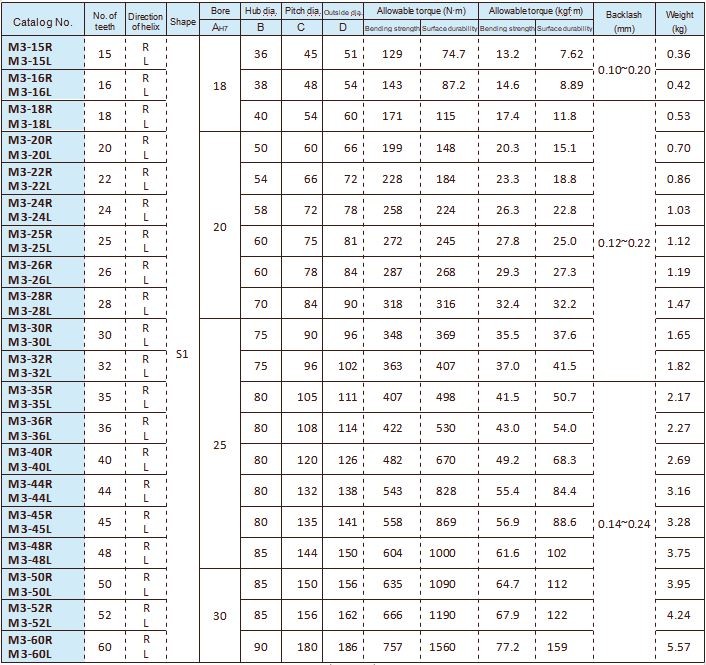

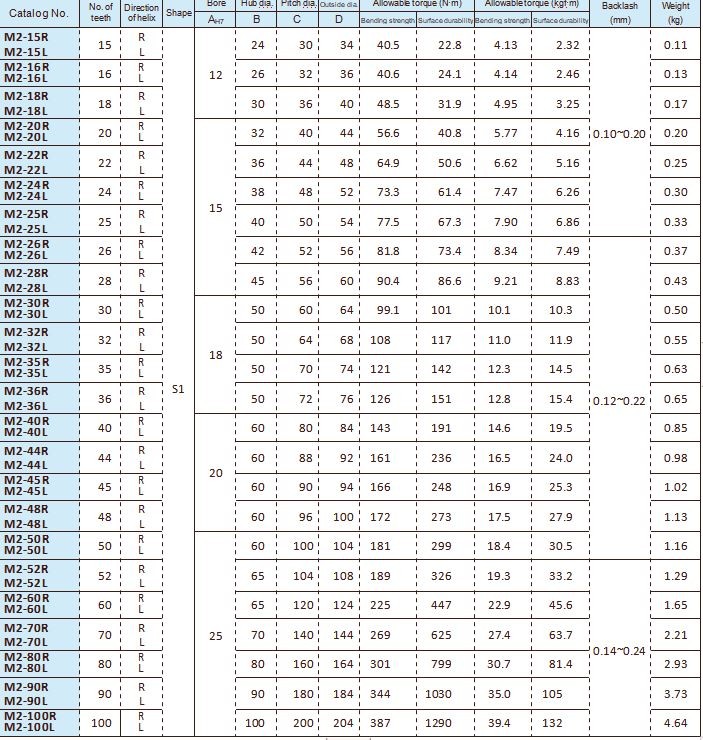

The allowable torques shown in the table are calculated values according to the assumed usage conditions.
The backlash values shown in the table are the theoretical values for the backlash in the normal direction of a pair of identical gears in mesh.
These gears produce axial thrust forces.
Right handed and left handed helical gears in the same module are designed to mesh as a pair
