Product Description

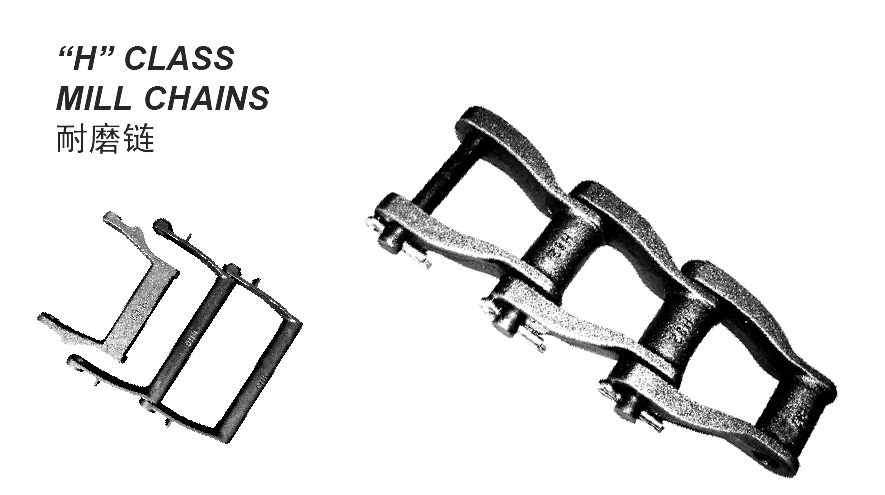

Ever-power "H" Class Mill Chain is an ex- tremely strong, serviceable chain originally de- signed for heavy drives and transfer conveyor purposes in saw mills and the paper and pulp industry. "H" Class Chain has proven itself for innumerable other industrial applications as well, especially for moderate duty in abrasive atmospheres where heavy, rugged chain is re- quired. The sidebars of the "H" Class links are rein- forced with wearing shoes which strengthen and stiffen the links when it is operated in troughs or over floors and runways.

Pin holes are precision cored to assure accu- rate pitch sizes, which range from 2.308 to 4.000 inches. "H" Class Chain is available in both riveted and cottered construction. T-head pins engage two lugs cast on the links' side- bars. This configuration prohibits pin rotation during chain operation, eliminating abrasive wear and pitch elongation.

Ever-power "H" Class Chain conforms to manufacturer's standards and is completely in- terchangeable with chains of other manufactur- ers. "H" Class Chain is available in Allied-Locke Promal with tensile ranges of 9,450 to 40,500 pounds.

"H" Class Chain may operate in two direc- tions. As a drive chain, it travels in the direction of the closed barrel; for elevator or conveyor applications, it should travel toward the open ends of the links.

Brutaloy or cast steel sprockets are available to accommodate every "H" Class pitch size. A wide assortment of attachments is also avail- able for varied chain applications.

A-L CHAIN NO.	LINKS	PINS
H 60 H 74 H 78 H 79 H 82 H 87 H 124	ALL NUMBERS A-L Promal	ALL NUMBERS Carbon Steel, Heat-Treated

Cottered

Riveted

MOLINE CHAIN NO.	PITCH IN INCHES	LINKS PER 10 FEET	WEIGHT PER FOOT LBS.	AVERAGE ULTIMATE STRENGTH LBS.	RECOMMENDED MAXIMUM WORKING LOAD LBS.	CHAIN CONSTRUCTION	AVAILABLE ATTACHMENTS
H 60	2.308	52	2.1	9,450	1,560	Riveted or Cottered	H2, K1
H 74	2.609	46	3.0	13,500	1,850	Riveted or Cottered	F4
H 78	2.609	46	4.2	22,200	2,810	Riveted or Cottered	A1, F4, F8, G19, H1, H2, K1, K2
H 79	2.609	46	4.8	24,300	2,810	Riveted or Cottered	None
H 82	3.075	39	5.5	27,000	3,580	Riveted or Cottered	K2
H 87	4.000	30	6.5	33,750	4,450	Riveted or Cottered	None
H 124	4.000	30	8.8	40,500	6,180	Riveted or Cottered	K2

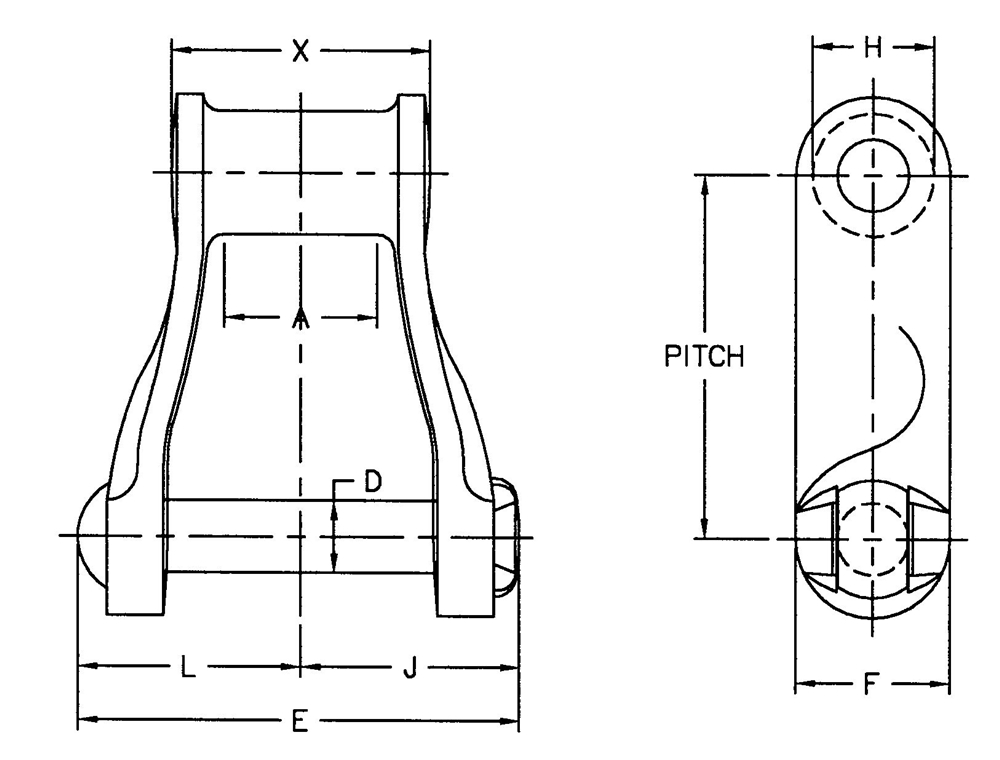

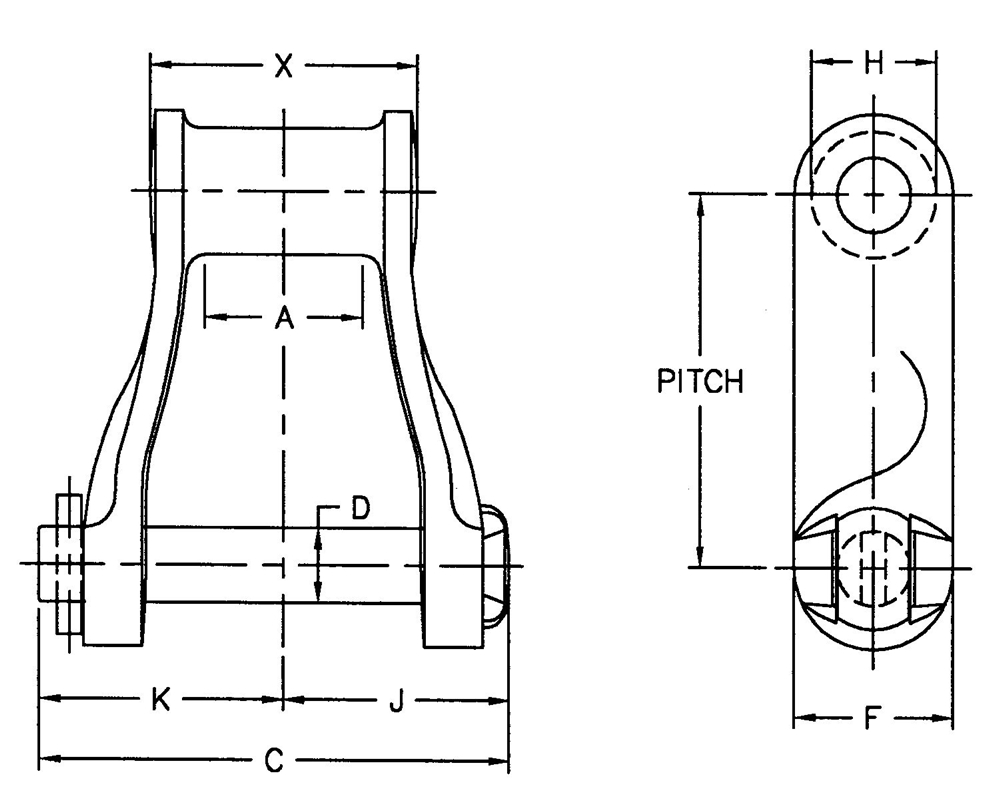

MOLINE CHAIN NO	MAXIMUM ALLOWABLE SPROCKET FACE A	OVER-ALL WIDTH— COTTERED C	DIAMETER OF PIN D	OVER-ALL WIDTH— RIVETED E	HEIGHT OF SIDEBARS F	DIAMETER OF BARREL H	HEAD OF PIN TO CENTER LINE J
H 60	0.75	2.62	0.312	2.62	0.75	0.75	1.25
H 74	1.00	3.12	0.375	2.88	1.00	0.88	1.50
H 78	1.12	3.31	0.500	3.19	1.12	0.88	1.56
H 79	1.12	3.31	0.500	3.19	1.12	0.88	1.56
H 82	1.25	3.88	0.562	3.88	1.25	1.22	1.88
H 87	1.50	4.38	0.625	4.19	1.38	1.38	2.06
H 124	1.62	4.88	0.750	4.75	1.56	1.44	2.25

MOLINE CHAIN NO.	END OF PIN TO CENTER LINE— COTTERED K	END OF PIN TO CENTER LINE— RIVETED L	BEARING LENGTH X
H 60	1.38	1.38	1.50
H 74	1.62	1.62	1.66
H 78	1.62	1.62	1.88
H 79	1.62	1.62	1.88
H 82	2.00	2.00	2.12
H 87	2.12	2.12	2.38
H 124	2.50	2.50	2.75
