Product Description

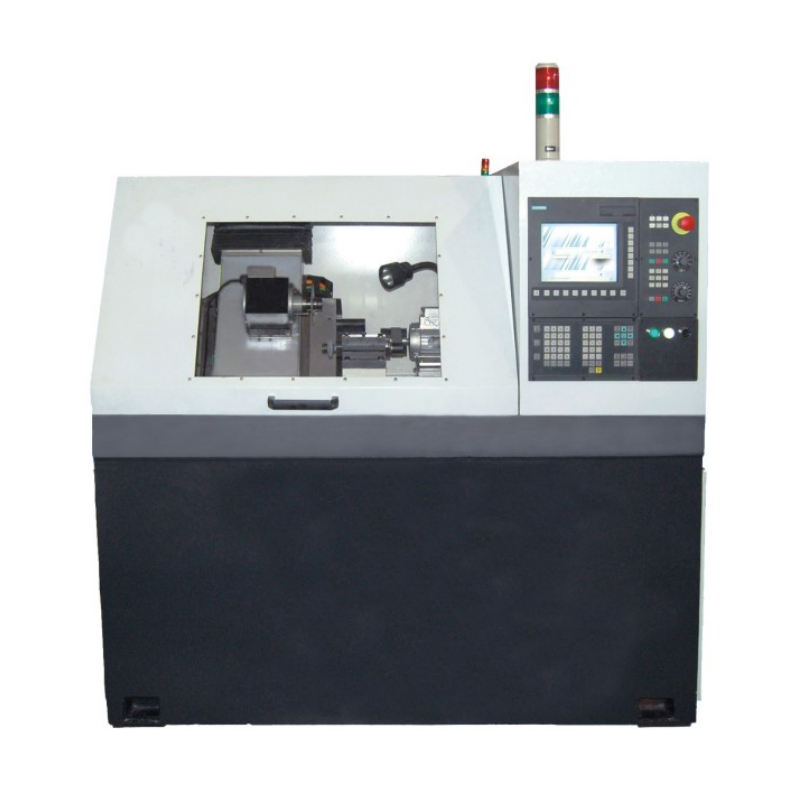

This repair machine adopts Siemens 802D CNC system, with two axis full closed-loop control and a full Chinese interface. It has the characteristics of compact structure, simple operation, high shaping accuracy, and high efficiency. It is suitable for the repair of various types of grinding wheels for hob relief grinding, including gear hobs (standard, pre grinding, and pre shaving), sprocket hobs, synchronous pulley hobs, and forming milling cutters.
Applicable scope 1, Involute gear hob: Types: gear hobs, pre shaving hobs, pre grinding hobs, involute spline hobs, etc. Range: Module (m0.8~m8) 2, Non involute hob: Types: rectangular flower silver hob, triangular spline hob, sprocket hob, pulley hob, touch hob, single arc hob, double arc hob, etc. Scope: Full tooth depth less than 20mm 3, Forming milling cutter: Types: involute gear milling cutters, convex concave semi-circular milling cutters, lock end milling cutters, blade root milling cutters, wheel slot milling cutters, spline milling cutters and other complex tooth profile milling cutters. Scope: Full tooth depth less than 20mm, width less than 50mm.

	GPM
Dresser Speed	Max.3000rpm
Spindle Speed	Max.3000rpm
Max.Wheel	Φ140x40mm
Min.Wheel	Φ50x10mm
X Stroke	80mm
Y Stroke	80mm
Movement Speed	5000mm/min
CNC System	Siemens 802D
Power	3AC 380V15KVA
Main Machine Size	1833x950x1630
Main Machine Weight	1500kg

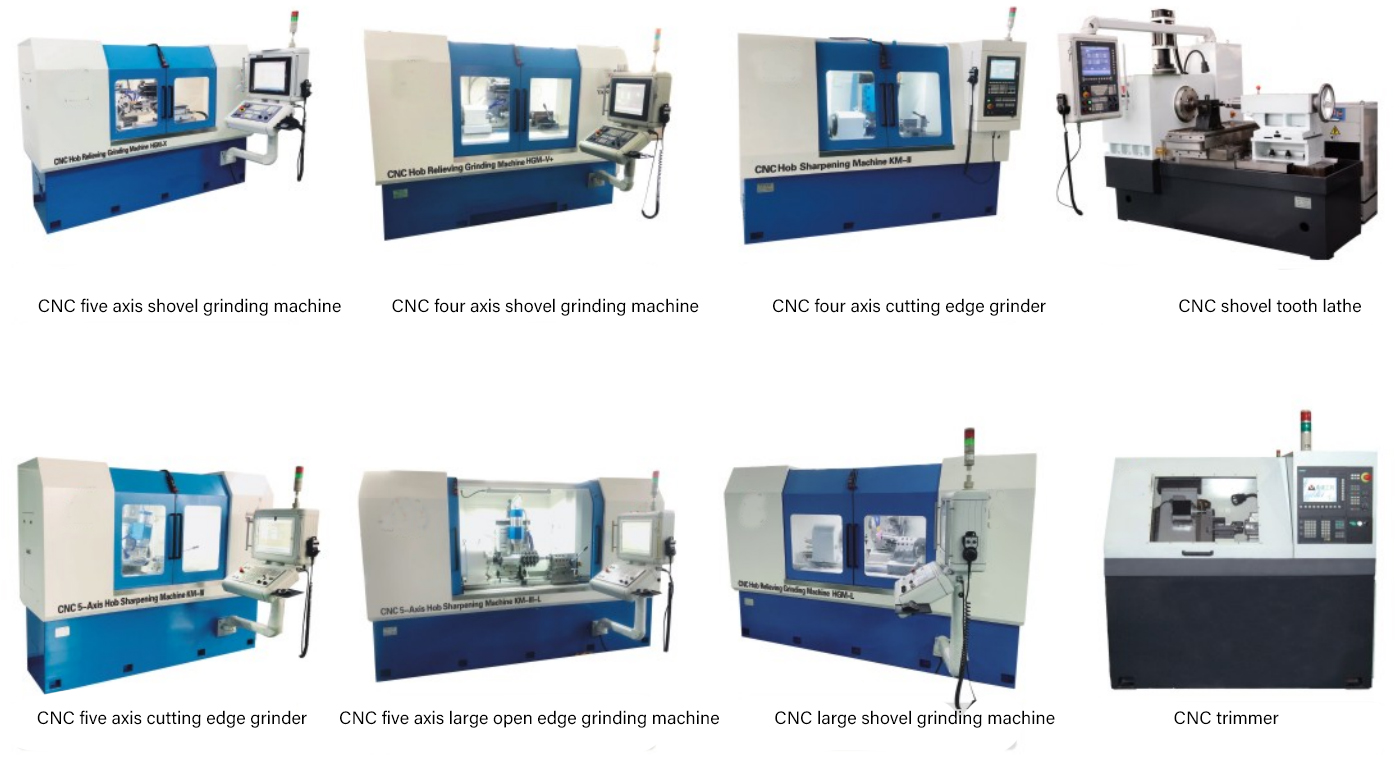

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

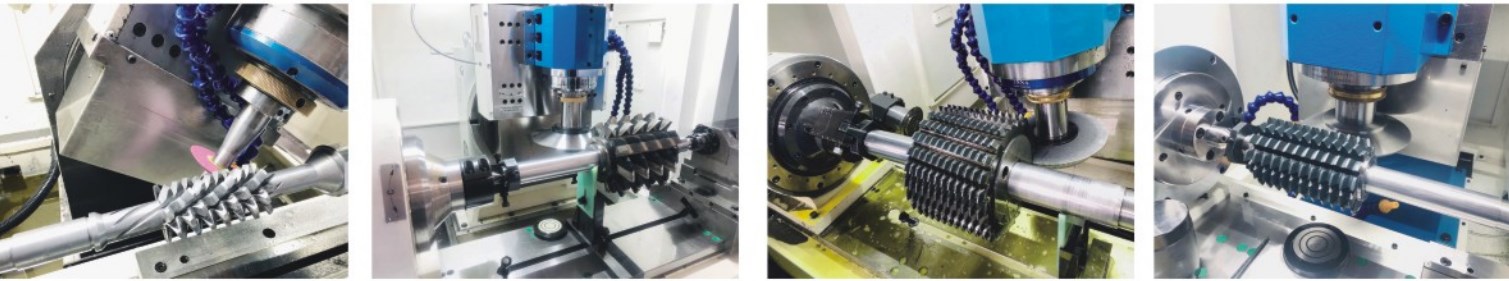

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

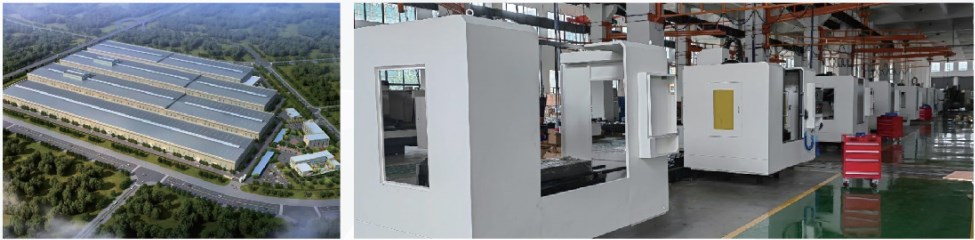

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

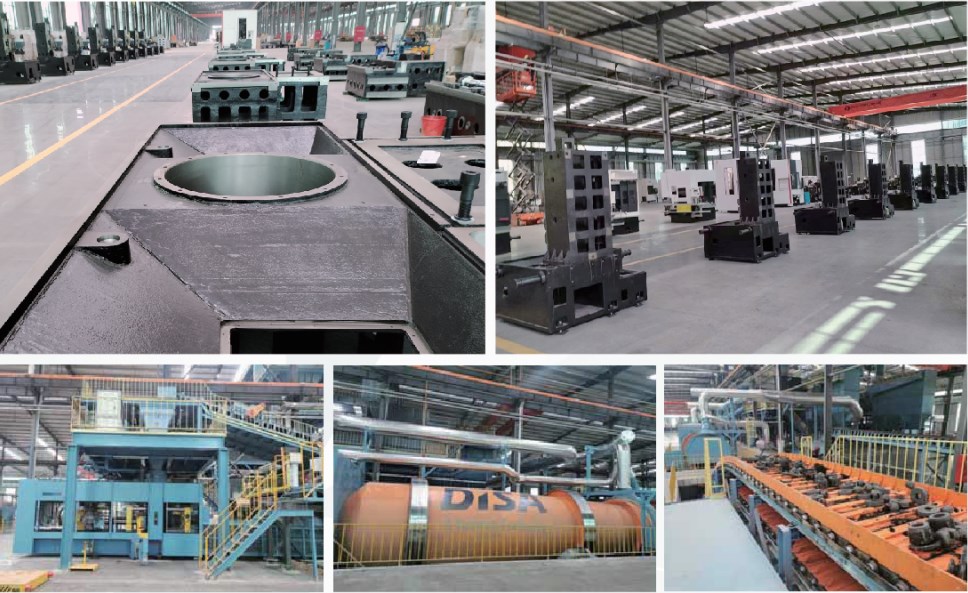

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

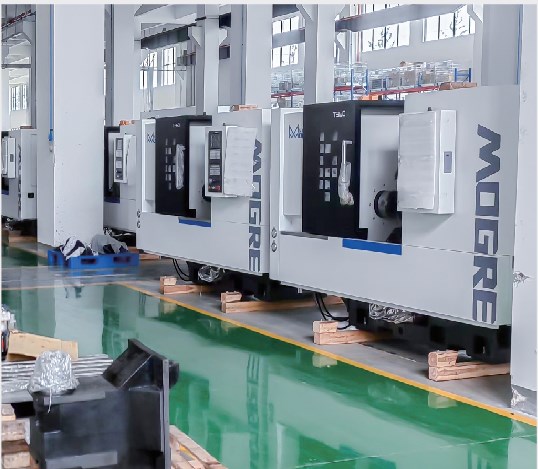

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
