Product Description

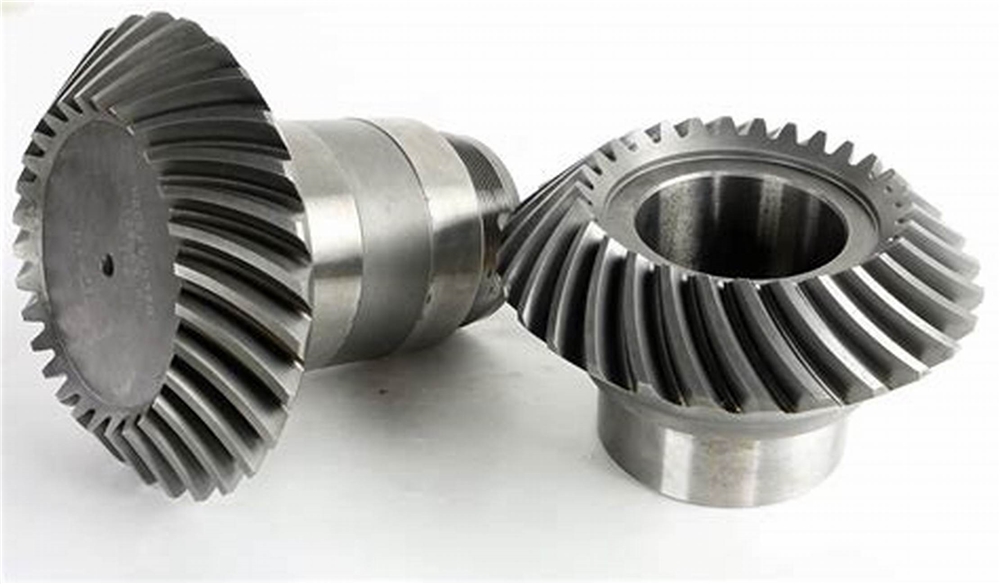

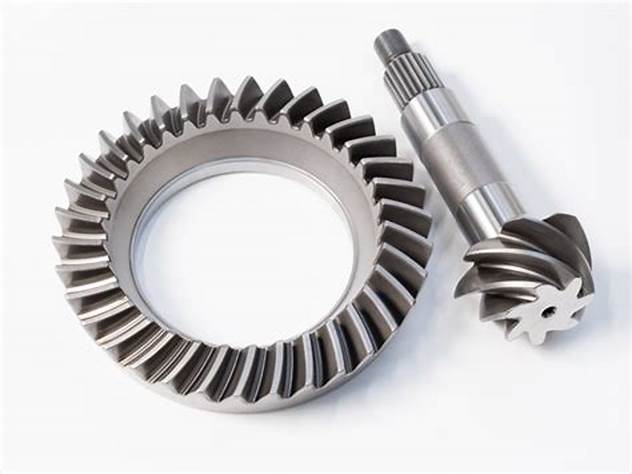

SPIRAL BEVEL GEAR

Spiral bevel gears have their teeth formed along spiral lines. They are somewhat analogous to cylindrical type helical gears in that the teeth are angled; however with spiral gears the teeth are also curved.
The advantage of the spiral tooth over the straight tooth is that they engage more gradually. The contact between the teeth starts at one end of the gear and then spreads across the whole tooth. This results in a less abrupt transfer of force when a new pair of teeth come in to play.

Product Name	Spiral bevel gear
Material	C45,Stainless 304,1045, Cr12, 40Cr, 20CrMnTi,16MnCr5,20CrMnMo,Nylon, Delrin,CuZn40,
Process	Hobbing, Broaching, Shaping, Milling, Forging
Standard	DIN, JIS, AGMA, ISO/GB
Grade	DIN 5-DIN 10, JGMA 2-JGMA 6, AGMA 6-10
Heat treatment	Quenching & Tempering, Carburizing & Quenching
Surface treatment	Surface treatment

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
