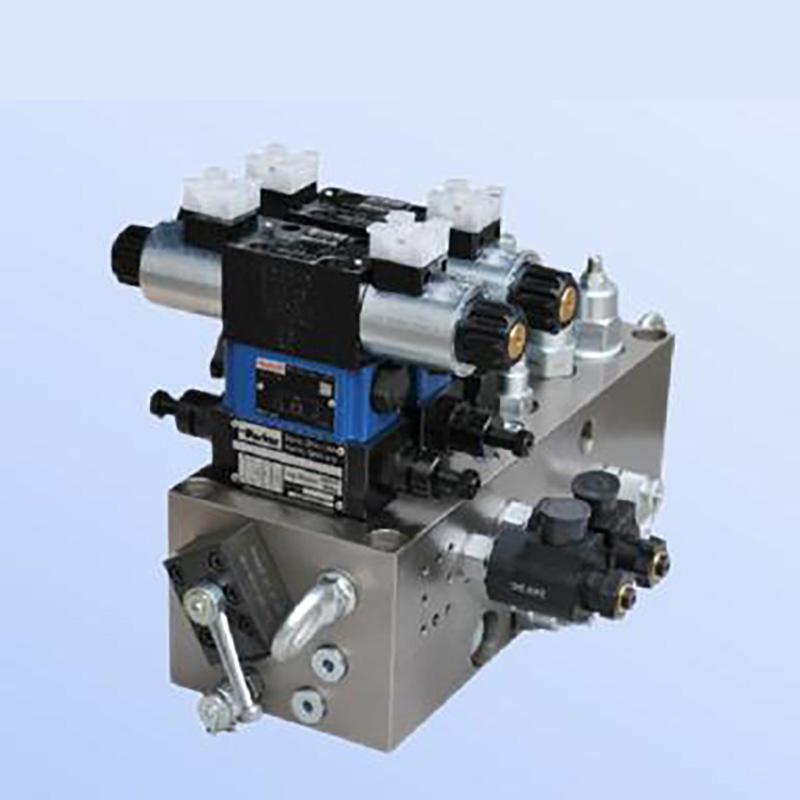

High-quality Hydraulic Valve 450bar Control Hydraulic Station Valve Block

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:High-quality Hydraulic Valve 450bar Control Hydraulic Station Valve Block - Buy Hydraulic Valve hydraulic Flow Control Valve Block hydraulic Station Valve Block hydraulic Control Valve Product on CMN Industry Inc

Send Inquiry

Product Description

Introduction Hydraulic station valve block is like a "smart center" in the hydraulic system. It is composed of multiple hydraulic valves with different functions, which work together to accurately control the flow direction, pressure and flow of hydraulic oil to ensure efficient, stable and safe operation of the hydraulic system. Product introduction Hydraulic Station Valve Block is a compact and efficient hydraulic circuit that plays a critical role in modern hydraulic systems. During operation, it functions as a centralized control unit, integrating multiple hydraulic valves into a single block to streamline fluid flow and reduce potential leakage points. The various valves, such as balance valves, pressure reducing valves, one-way valves, reversing valves, and shuttle valves, are strategically combined through the oil passages (oil holes) on the valve block, ensuring precise control over hydraulic power transmission.

As an independent hydraulic unit, it operates autonomously to supply pressurized oil to its drive mechanism while regulating the direction, pressure, and flow rate of the hydraulic fluid. This ensures optimal performance, energy efficiency, and safety in hydraulic systems. Its modular design allows for customization, making it suitable for construction machinery, agricultural equipment, marine hydraulics, and industrial automation systems.

By consolidating multiple valve functions into a single block, the Hydraulic Station Valve Block reduces piping complexity,
minimizes pressure drops, and enhances overall system responsiveness. Whether for high-pressure applications or precision flow control, it remains a cornerstone of efficient hydraulic system design.

Parameter	Specification
Materials Avaliable	20# steel, 35 forged steel, 45# steel, Q355D, cast iron, aluminum, etc.
Pressure	Up to 450 Bar
Flow	Up to 600 L/min
Screw Hole processing accuracy	7H
Roughness of Mounting Hole	Ra0.8
Surface Roughness of 0-ring Groove	Ra1.6
Surface Roughness of General Flow Channel	Ra12.5
Processing Type	Milling / Turning / Stamping

Adaptable to various hydraulic systems, any product can be customized according to customer needs.

For more details, please click here to contact us！

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
