Product Description

Characteristic

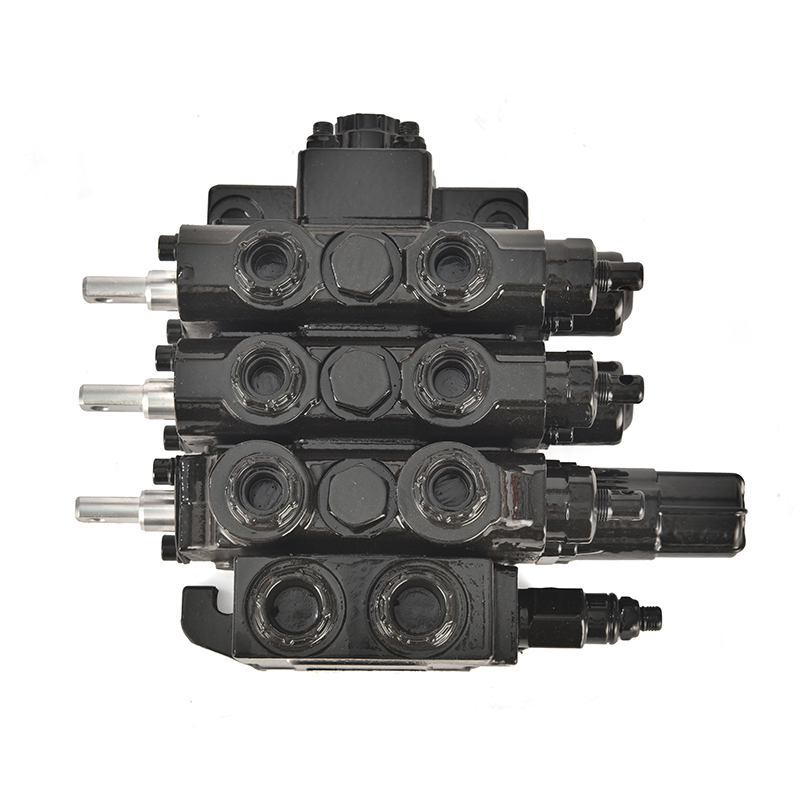

The 1004DA Multi-Way Valve is an advanced load-sensing, pressure-compensated directional control valve specifically engineered for high-performance agricultural machinery. As an evolution of the standard 1004 series, it incorporates dynamic flow allocation (DA) technology, making it ideal for modern precision farming equipment requiring intelligent hydraulic management.

Feature	1004DA Valve	Standard 1004 Valve
Control Type	Load-sensing + DA flow allocation	Basic pressure compensation
Max Pressure	450 bar (6,500 psi)	420 bar (6,000 psi)
Automation	ISOBUS/EH-ready	Limited EH support
Sections	6–12 (expandable)	4–8
Best For	Smart farming, autonomous ops	Large conventional machinery

Key Advantages
1. Dynamic Flow Allocation (DA) Technology
Automatically prioritizes hydraulic flow to critical functions (e.g., steering) while maintaining consistent pressure for
secondary circuits.

Prevents power loss during simultaneous operations (e.g., lifting and steering).

2. Load-Sensing & Pressure Compensation
Maintains constant flow regardless of load changes, improving implement control (e.g., seeders, sprayers).

Reduces energy waste by matching pump output to actual demand.

3. High-Pressure Capability
Rated for 450 bar (6,500 psi), suitable for high-horsepower tractors (200+ HP) and heavy implements.

4. Modular & Scalable Design
6–12 work sections (expandable via sandwich plates) for complex hydraulic systems.

Optional electro-proportional control for integration with ISOBUS or GPS-guided systems.

5. Robust Construction
Hardened spools and corrosion-resistant coatings withstand abrasive agricultural environments (fertilizers, dust, moisture).

Primary Applications
1. Large-Scale Tractors & Self-Propelled Machines
Steering priority systems in 4WD tractors and harvesters.

Front-loader/backhoe controls with simultaneous operation.

2. Precision Farming Equipment
Variable-rate technology (VRT) sprayers/planters requiring flow stability.

Section control for automated seed/fertilizer application.

3. High-Capacity Harvesters
Header height/drape control in combines with active yield monitoring.

Feederhouse and separator adjustments.

4. Hydraulic-Driven Attachments
Bale wrappers, forage choppers, and grain carts with multiple actuators.

5. Smart Farming Systems
Autonomous machinery requiring electro-hydraulic automation.

For more details, please click here to contact us!
