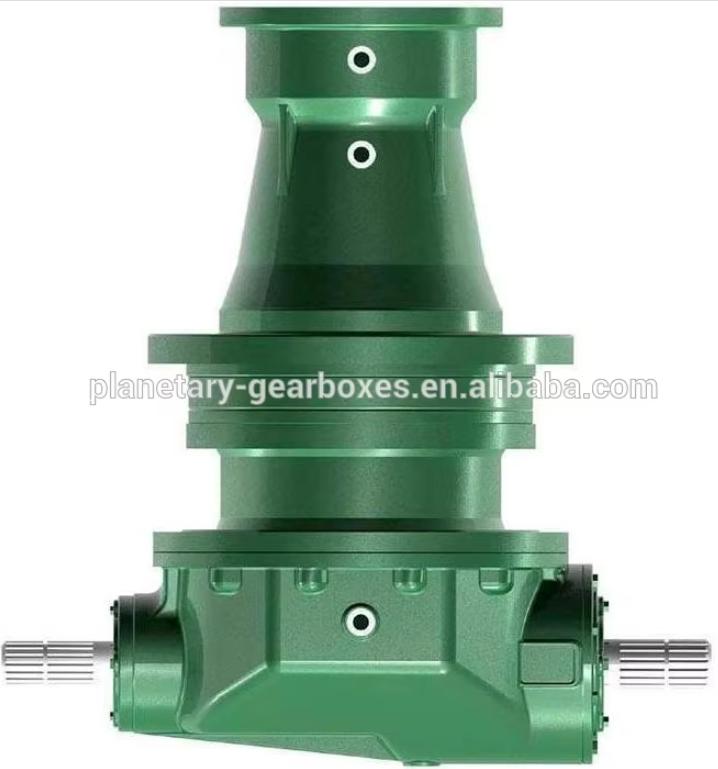

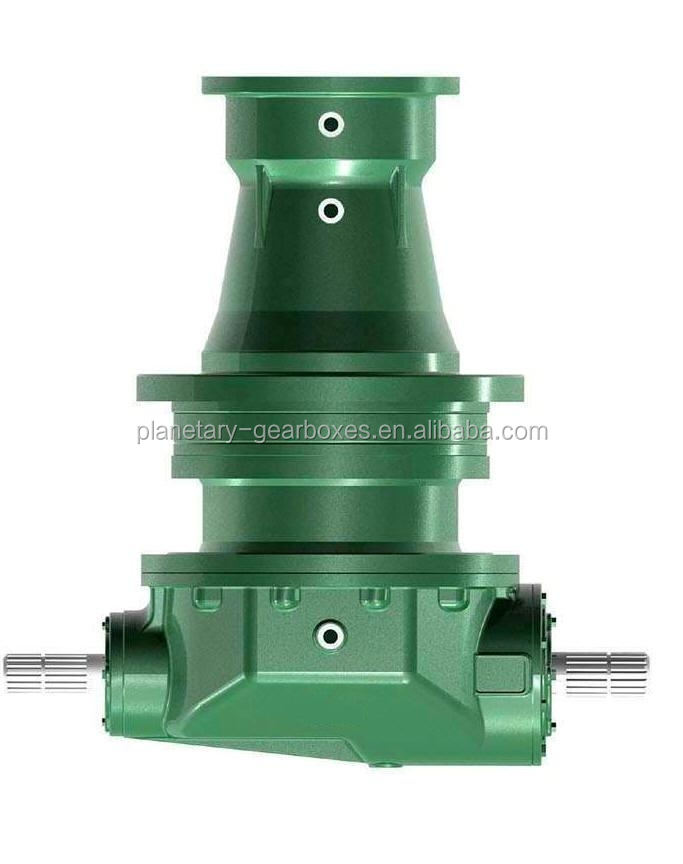

High Speed Auger Drive Custom High Torque Agricultural Small Feed Mixer Planetary Gearbox for Trailed Feed Mixers

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:High Speed Auger Drive Custom High Torque Agricultural Small Feed Mixer Planetary Gearbox For Trailed Feed Mixers - Buy Feed Mixer Planetary Gearbox mixer Gearbox bevel Gearbox planetary Gearbox Manufacturers high Speed Planetary Gearbox planetary Gearbox High Torque small Feed Mixer Planetary Gearbox high Speed Auger Drive Custom High Torque Agricultural Small Feed Mixer Planetary Gearbox For Trailed Feed Mixers Product on CMN Industry Inc

Send Inquiry

Product Description

Ever-Power Industries is a Mechatronics company that designs, manufactures power transmission products. It offers a full line of mechanical and hydrostatic transmissions for agricultural and industrial equipments. Ever power is one of the biggest manufacturer in agri-transmission field in China.

Over 14 years, Ever-Power Industries run business in the main countries all over the world,
where it has become the partner of the leading industrial and agricultural machinery OEMs
And we have daily new customers from developing area as well...

The GEARBOXES & DRIVESHAFTS product line is divided into gearboxes (speed change
gears, parallel and right angle shaft speed increases and reducers), driveshafts and safety
devices mainly employed on agricultural equipments.
Feed Mixer Planetary Gearbox,Straight Bevel Gearbox,Reduction Gear Box
agricultural gearbox/mixer gearbox/bevel gearbox

ITEM no.	Ratio	Power KW	Output Torque (Nm)	Input speed(r.p.m)	weigh(Kg)
E1	14.6	61.97	16000	540	256
E2	18.2	46.61	15000	540	256
E3	28.27	59.27	16000	1000	290
E4	16.13	55.04	15700	540	256
E5	18.2	41.95	13500	540	256
E6	21.1	32.16	12010	540	256
E7	13.4	76.05	18020	540	280
E8	28.27	61.12	16500	1000	330
E9	25.89	72.89	18020	1000	290
E10	13.4	67.52	16000	540	256
E11	25.89	34.95	16000	540	290
E12	13.4	67.52	16000	540	256
E13	18.2	41.95	13500	540	256
E14	21.1	32.16	12000	540	256
E15	25.8	73.14	18020	1000	290
E16	13.38	76.16	18020	540	256

Modular Auger Drives > transmission of the vertical and horizontal drive to the augers > compact and versatile solutions that can be combined with hydraulic motors. Planetary Wheel Drives > compact drives > high level of performances > robustness > easy and economical installation on machines > reliability for the application > excellent mobility required by vehicle type. Wide product range: highly personalized, versatile and cutting-edge transmissions. Boosted efficiency and attention to the environment. A proven 25 year- track record in the design and manufacturing of power transmissions for feed mixers: > production of parallel axis speed change gears > development of modular auger drives.

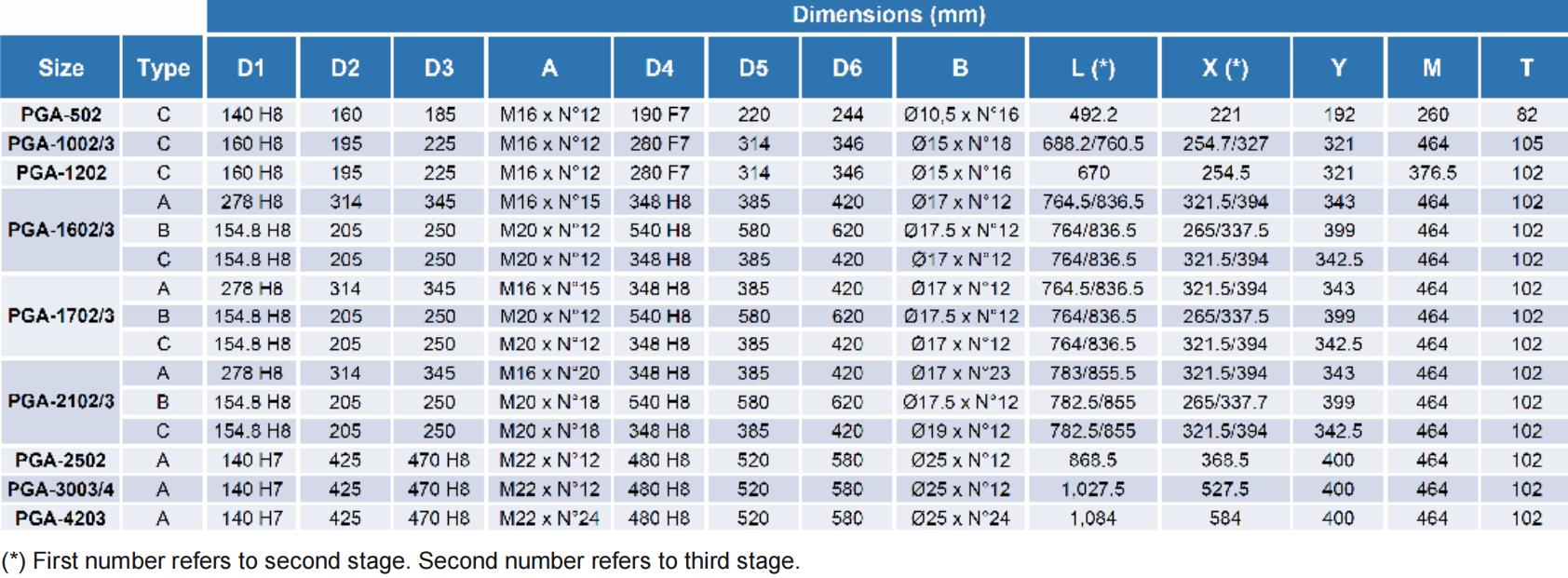

Size	Continuous Torque (Nm)	Maximum Torque (Nm)	Input Speed (rpm)	Transmission Ratio (Min-Max) i	Input Shaft
PGA-502	3,810	7,620	540	12.36-15.51	1*3/8 Z6
PGA-1002/3	8,500	17,000	540	16.8-30.6	1*3/4 Z20
PGA-1202	11,600	23,200	540	11.1-19.4 (*)	1*3/4 Z20
PGA-1602/3	15,700	31,400	540	13.4-47.5	1*3/4 Z20
PGA-1702/3	15,700	31,400	540	13.4-47.5	1*3/4 Z20
PGA-2102/3	21,000	47,000	540	12.1-62.1	1*3/4 Z20
PGA-2502	23,780	48,000	540	13.6-23.6 (*)	1*3/4 Z20
PGA-3003/4	30,760	61,520	540	25.7-84.4	1*3/4 Z20
PGA-4203	42,000	142,000	540	27.8-91.4	1*3/4 Z20

(*) Values referred to continuous torque and maximum torque may vary.

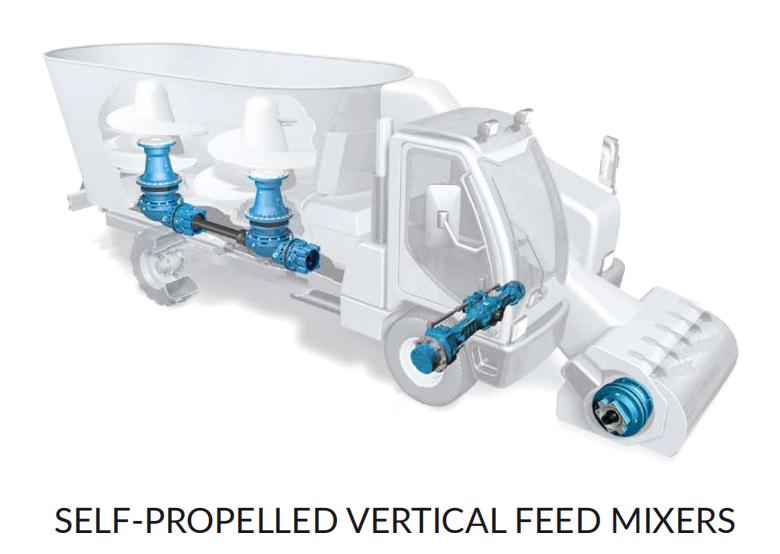

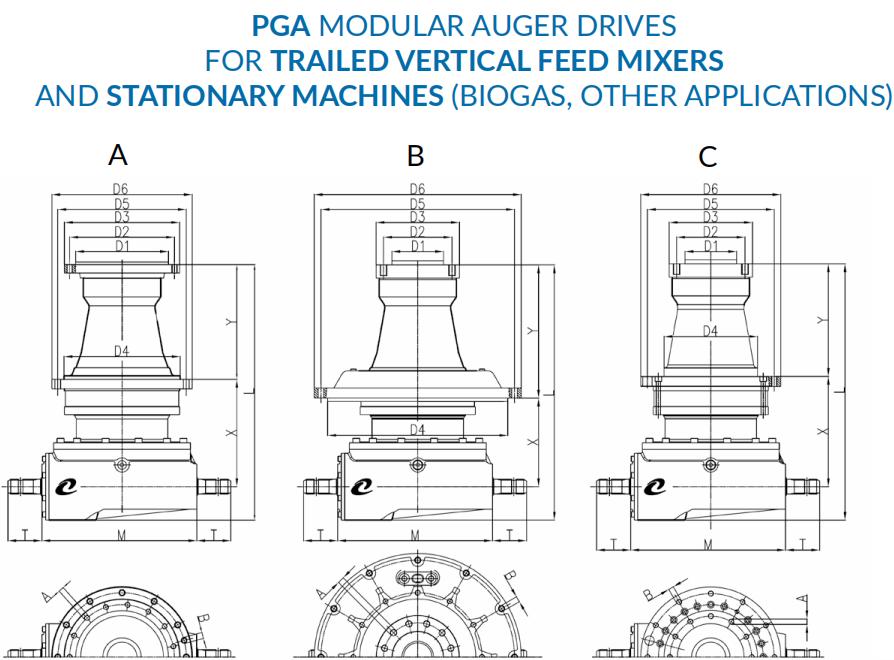

PGA MODULAR AUGER DRIVES FOR SELF-PROPELLED VERTICAL FEED MIXERS AND STATIONARY MACHINES (BIOGAS, OTHER APPLICATIONS)

Size	Continuous Torque (Nm)	Maximum Torque (Nm)	Transmission Ratio (Min-Max)
PGA-1603	15,700	31,400	24.4-116.9
PGA-1703	15,700	31,400	24.4-116.9
PGA-2103	21,000	47,000	31.8-126.5
PGA-2503	23,780	48,000	35.7-142.2
PGA-3004	30,760	61,520	97.4-612.3
PGA-4204	42,000	142,000	105.4-662.8

(*) Motor predispositions SAE C / SAE D, IEC, NEMA and others.

Other products

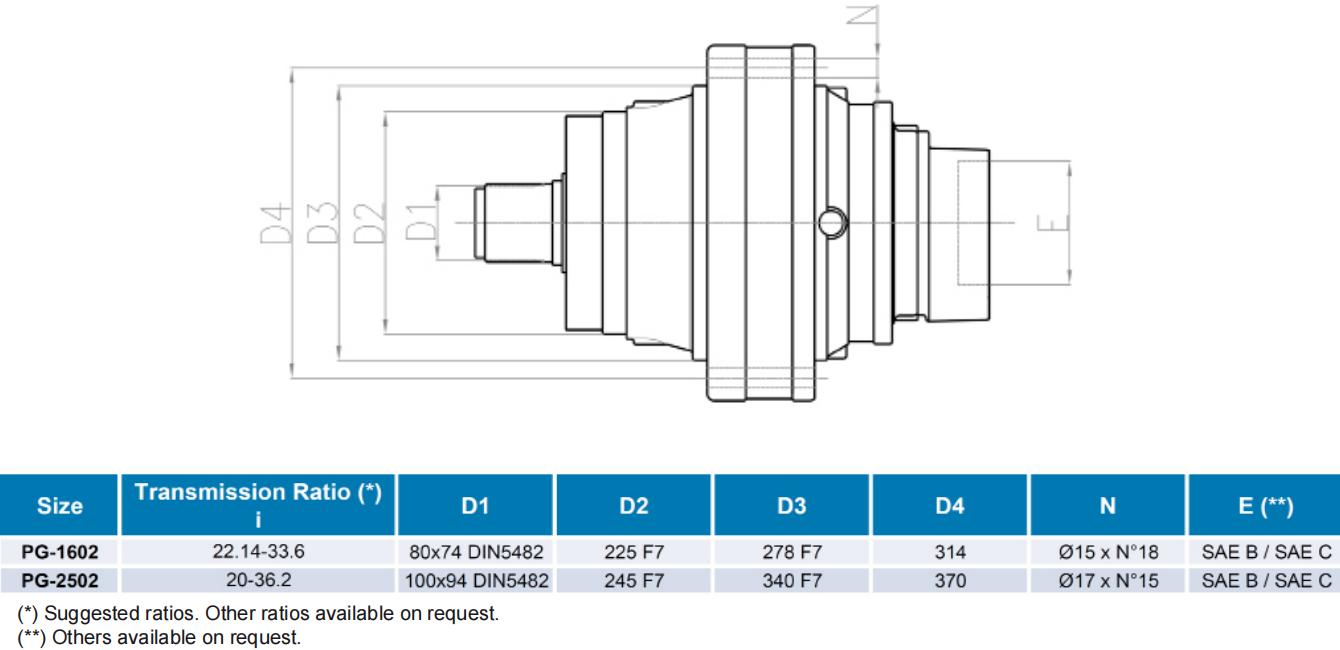

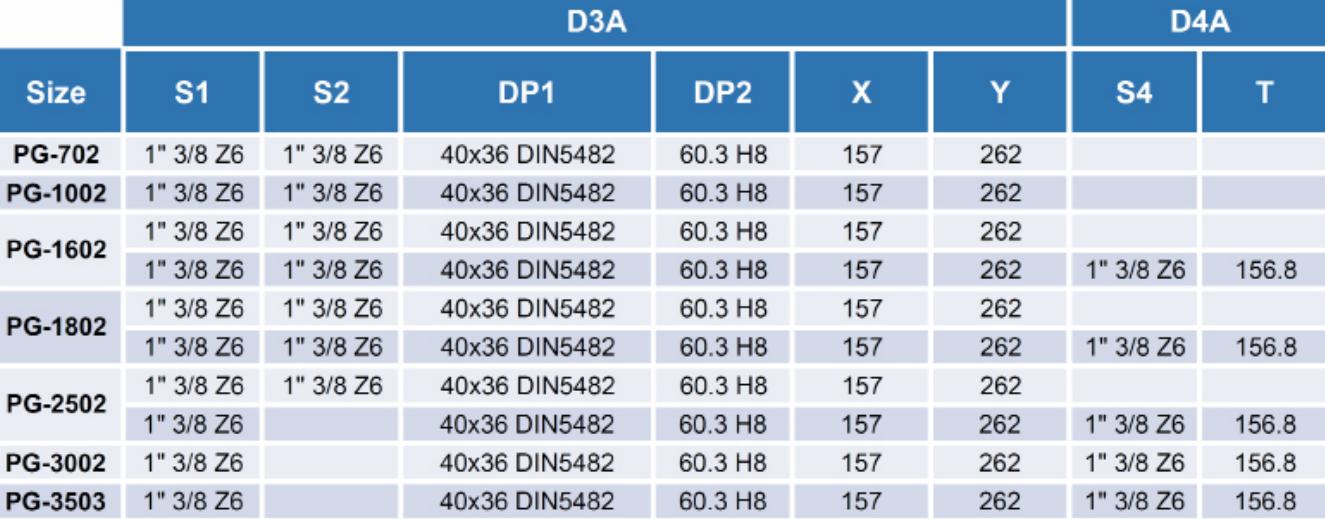

PG MODULAR AUGER DRIVES FOR TRAILED HORIZONTAL FEED MIXERS

Size	Transmission Ratio (°)	Output Type	D1	D2	D3	N	L	S6
PG-702	18.2	B		200 F7	250	Ø15 x N°12	646.5	70x64 DIN5482
PG-1002	18.3	B		230 F7	295	Ø17 x N°10	627.5	80x74 DIN5482
PG-1602	13.4-33.6	B		230 F7	295	Ø17 x N°10	693	100x94 DIN5482
		C	88 H8	278 F7	314	Ø15 x N°18	490.5	80x74 DIN5482
PG-1802	15.7-29.9	B		230 F7	295	Ø17 x N°10	714	100x94 DIN5482
		C	88 H8	278 F7	314	Ø15 x N°18	499.5	80x74 DIN5482
PG-2502	14.6-20-36.2	A	245 F7	340 F7	370	Ø17 x N°15	798.5	100x94 DIN5482
		C	102 H7	340 F7	370	Ø17 x N°15	595.5	100x94 DIN5482
PG-3002	45.3	C	102 H7	340 F7	370	Ø17 x N°15	601	100x94 DIN5482
PG-3503	53.7	C	122 H7	340 F7	370	Ø17 x N°15	680.5	120x22x5 DIN5480

PG MODULAR AUGER DRIVES FOR SELF-PROPELLED HORIZONTAL FEED MIXERS

PG MODULAR DRIVES FOR MILLING HEAD ON SELF-PROPELLED FEED MIXERS

We make all kinds of agri-transmission, like mower gearbox/rotary cutter gearbox, Feed Mixer Planetary Gearbox,Straight Bevel Gearbox,Reduction Gear Box etc.... interchangeable with GKN or comer gearbox

Bevel wheel gearbox with ratio 254:1. Input power:1/8hp DC motor, 48V. And input mount suit NEMA 48-C face motor with diametre 1/2", length 1-9/16" shaft.

Other ratioes are also available. Customer design is acceptd.

Ever Power Group Looking for sales agency all over world, with our high quality products and competitive prices, we will get win-win coperation with our sales agency...

Pls do not hesitate to write to us for free catalog and technic info, Looking forward to hearing from you soon!

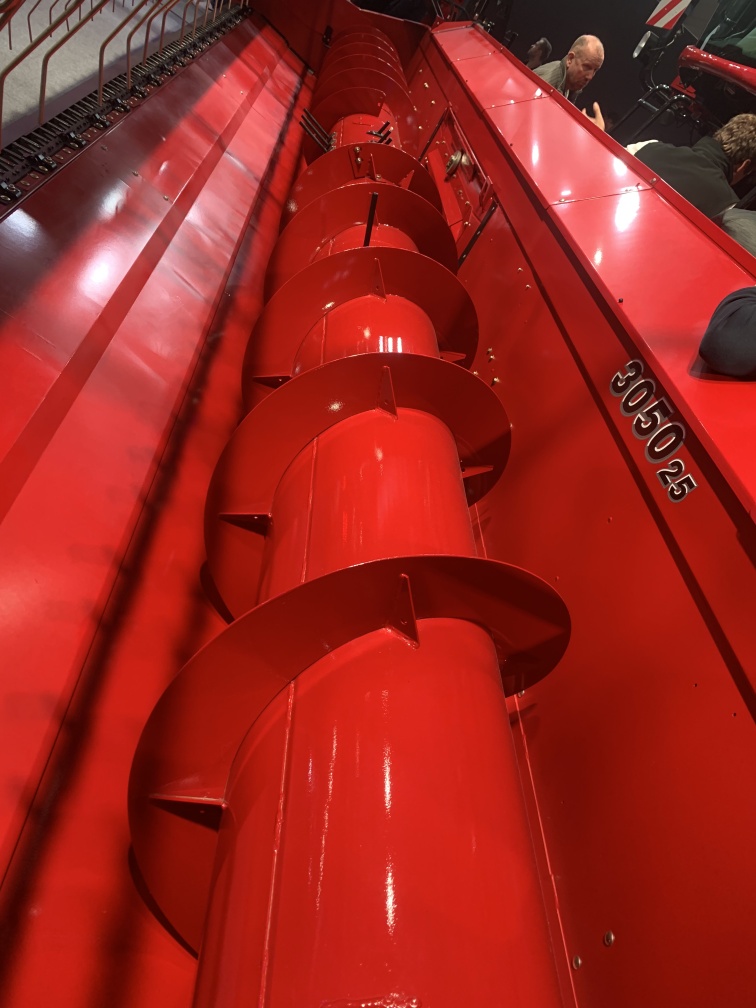

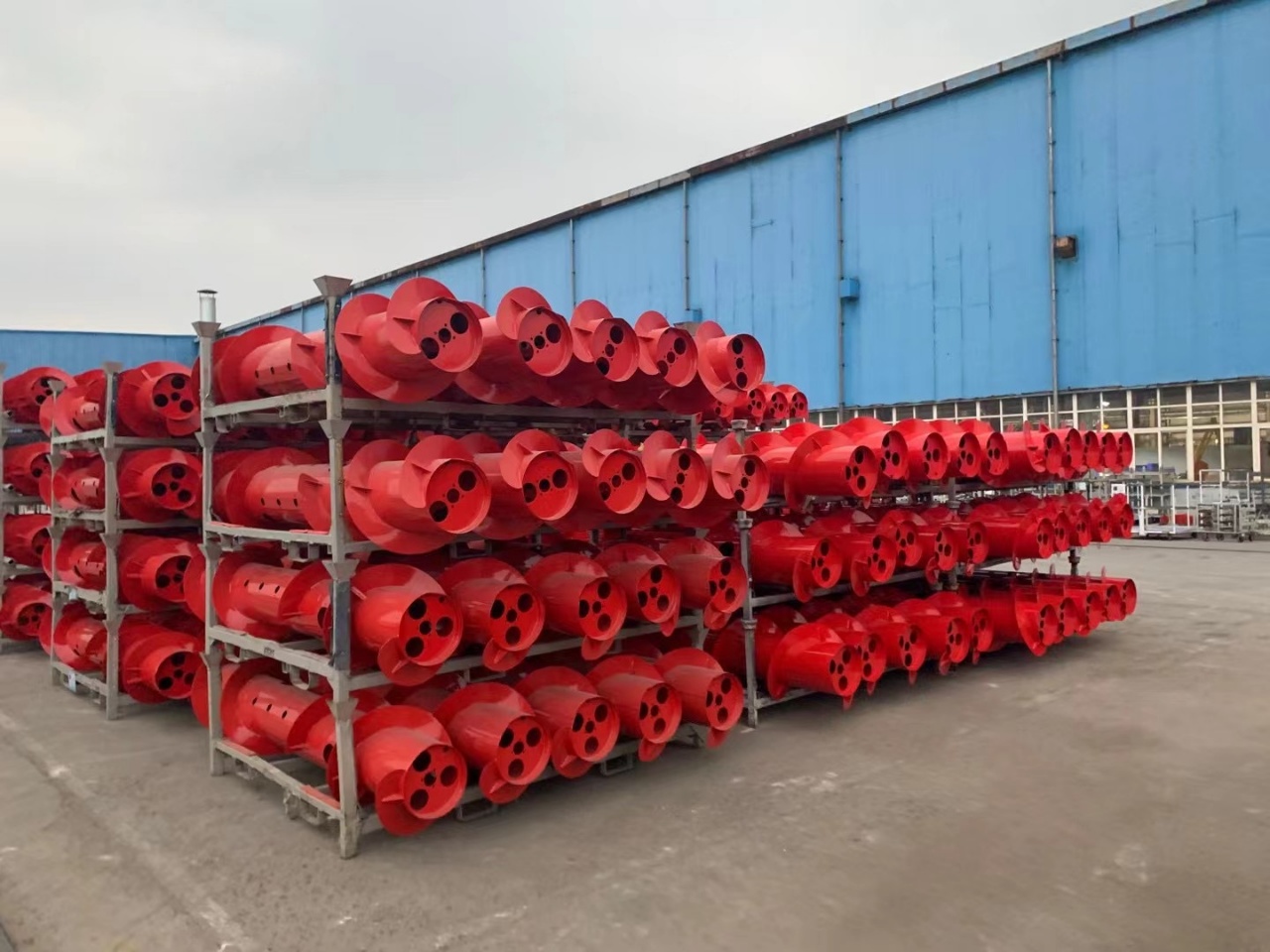

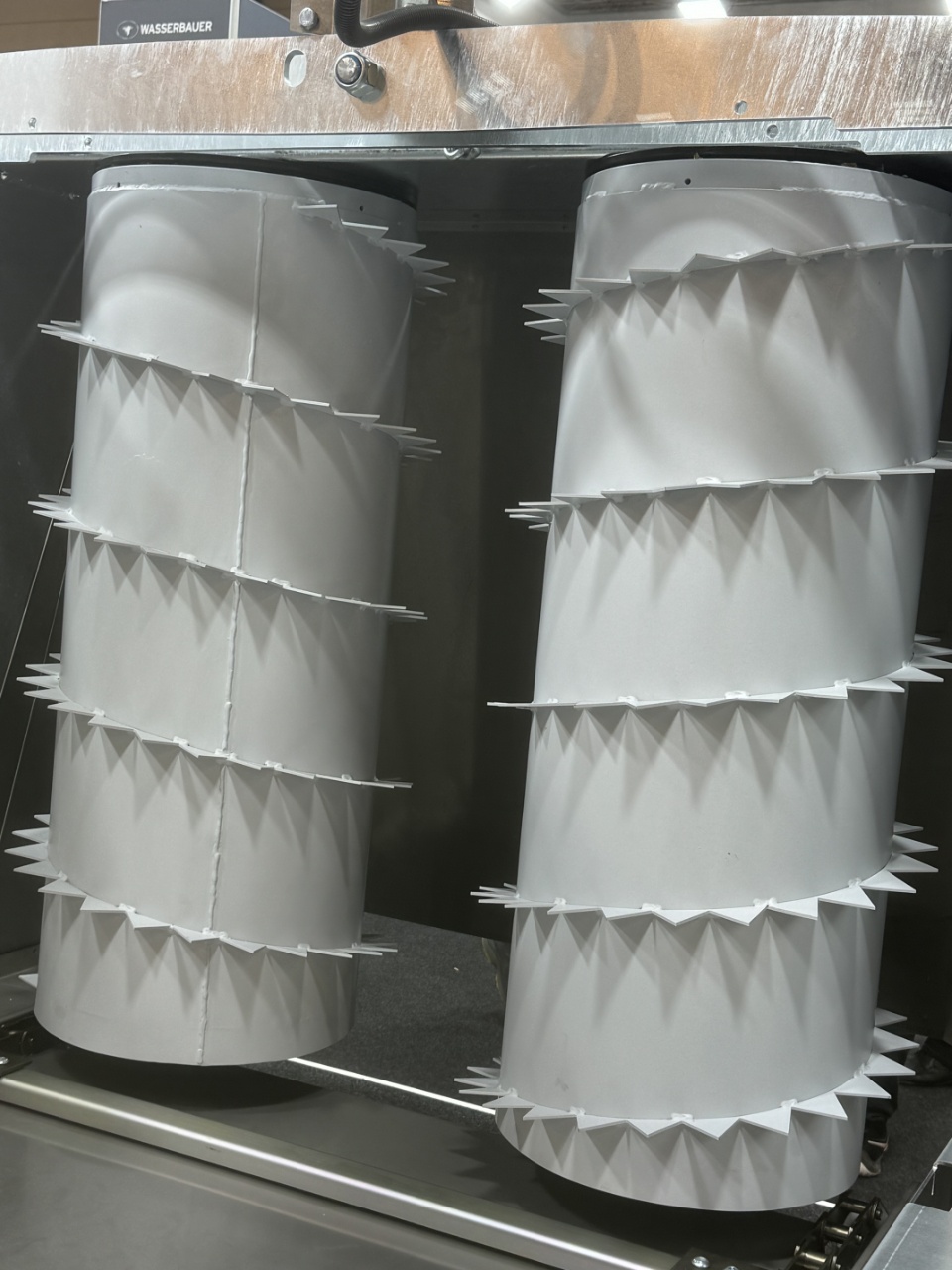

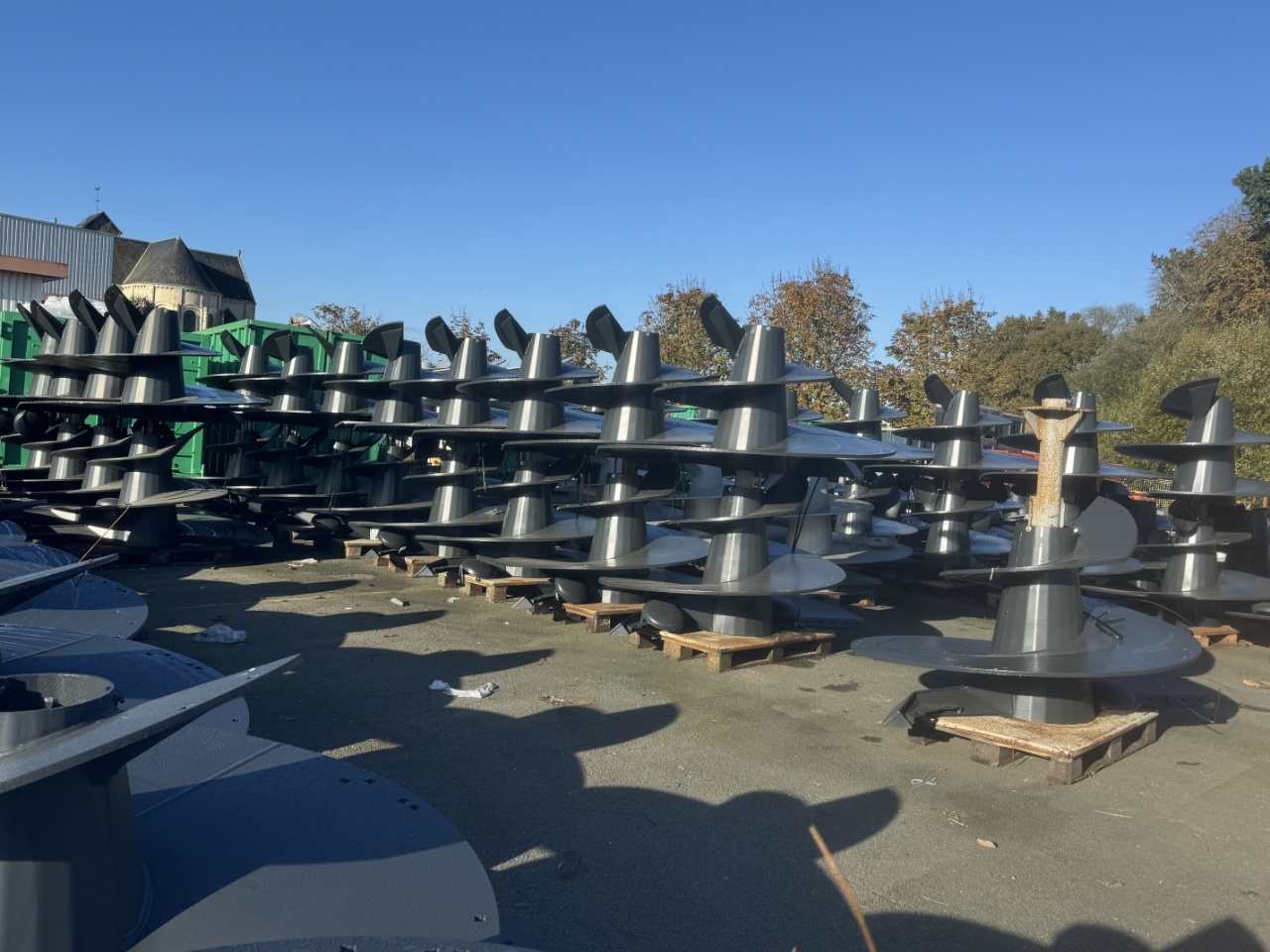

We also provide tmr mixer auger

For more details, please click here to contact us！

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
