Product Description

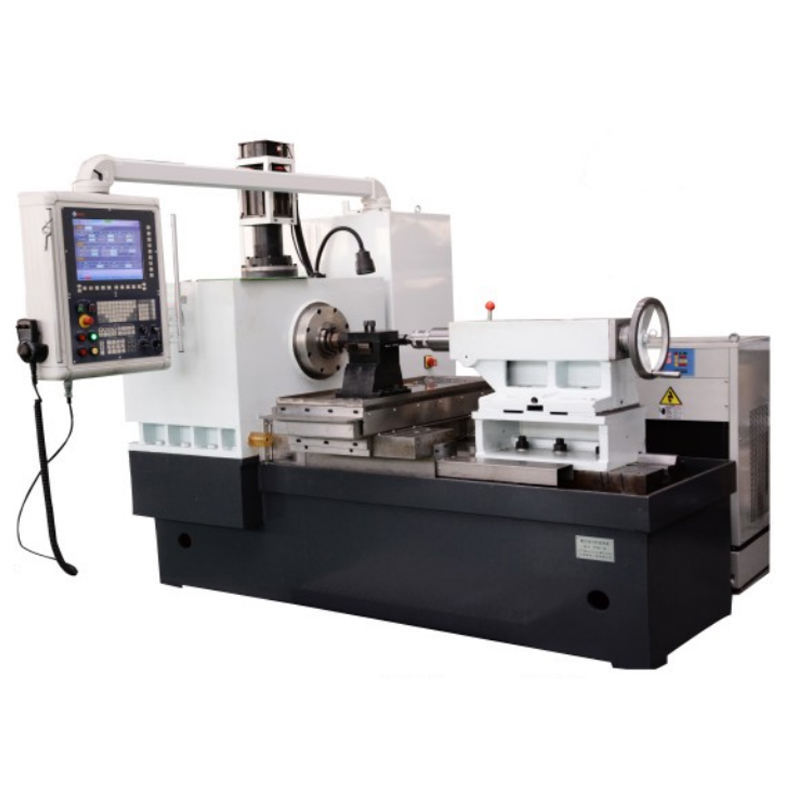

The CNC shovel tooth lathe adopts LYNUC U3E system three-axis and three linkage control; The headboard of the bed adopts a self-made high torque and high rigidity design, and the shovel back adopts a large A linear motor with thrust and equipped with a straight grating, fully closed-loop design, with high speed Featuring high precision, the fastest speed can reach 8 times per second. This machine tool is not only equipped with dry The cutting air cooling system is also equipped with an internal circulation cooling device.
Applicable scope Suitable for rough tooth cutting of gear hobs (precision rolling, pre shaving, pre grinding), worm gear hobs, involute/triangular/rectangular spline hobs, sprocket hobs, synchronous pulleys/die hobs, insert hobs, multi segment arc gear hobs, formed special hobs, and milling cutters.

	HTM-II	HTM-L (large specification)
Centre Height	220mm	210mm
Centre Distance	520mm	620mm
Hob Diameter	Φ220mm	Φ400mm
Max. Effective Length	350mm	400mm
Max Module	M1~M12 (≥ M8 requires a separate shovel)	M1~M20 (≥ M12 requires a separate shovel)
Heads	Any	Any
Max.Cam	16mm	25mm
Table Transverse Stroke	Z=500mm	Z=560mm
Wheel Longitudinal Stroke	X=100mm	X=175mm
Spindle(C) Power	7.5kw	11kw
Spindle (C)Interface	Max.50rpm,BT50#	Max.35rpm,BT50#
CNC System	LYNUC U3E	LYNUC U3E
Power	3AC 380V 20KVA	3AC 380V 30KVA
Main Machine Size	2600x1300x1950mm	3600x1600x1950mm
Main Machine Weight	5000kg	9000kg

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
